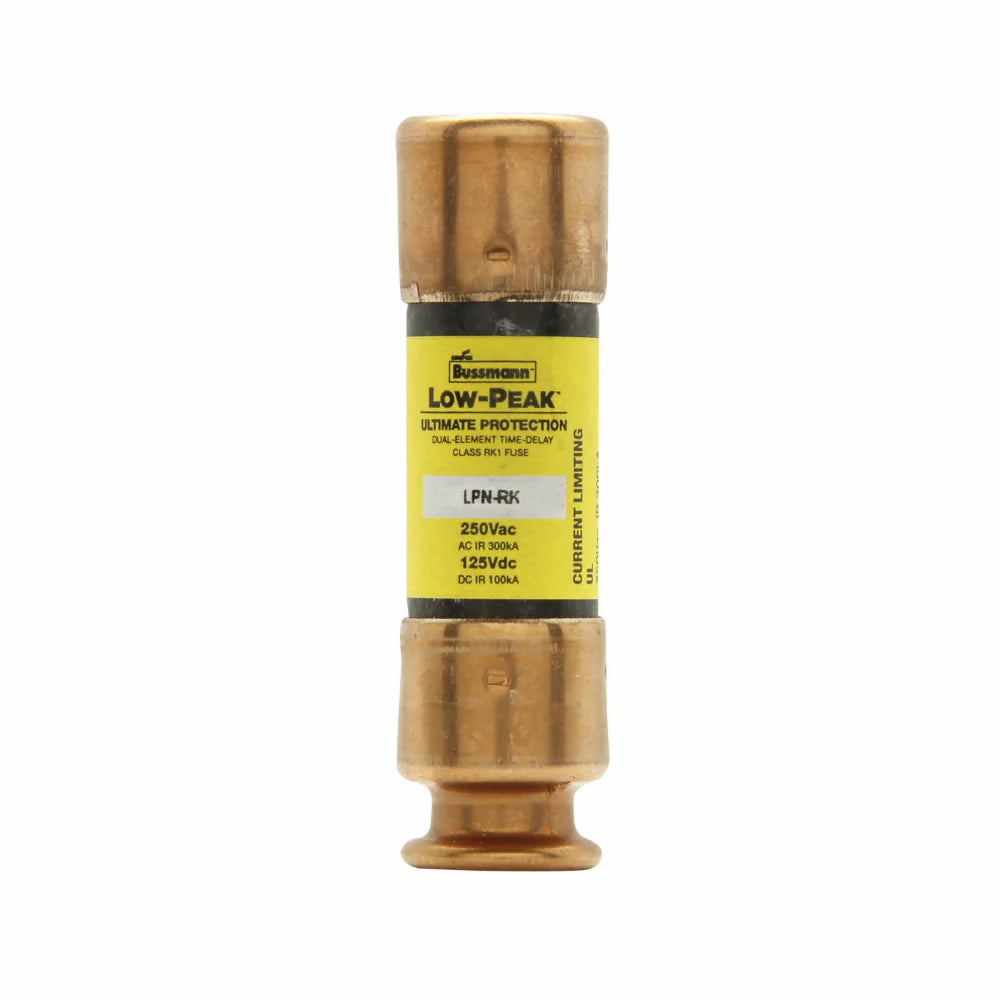

Eaton LPN-RK-30SP BUS 250V DUAL-ELEM. ATDE30R

Product Description

The Eaton LPN-RK-30SP is a Bussmann Low-Peak fuse designed for current limiting and time delay applications. This fuse operates at a rating of thirty amperes, suitable for both 250 VAC and 125 VDC circuits. It provides superior protection with high interrupt ratings of 300/100 kAIC. The cylindrical body structure features a ferrule end terminal for easy installation in holders.

• Current limiting for reliable circuit protection
• Time delay performance allows sizing flexibility
• Ideal for industrial facilities and motor control systems

Product Highlights

The LPN-RK series offers essential protection against overloads, ensuring safe operation of machinery and electrical systems.

Product Information

Standard Information

• Manufacturer: Eaton
• MPN: LPN-RK-30SP

Technical Specifications

• Amperage Rating: 30 A
• Voltage Rating: 250 VAC/125 VDC
• Body Size: 0.56 inches Diameter x 2 inches Length
• Body Type: Cylindrical
• Class: RK1
• Element: Dual
• Response Time: 8 seconds at 500%
• Material: Melamine
• Mounting Type: Holder
• Indicating/Non-Indicating: Non-Indicating
• Standards/Approvals: CE Certified, CSA C22.2, UL Listed
