Eaton LPN-RK-2SP LPNRK2SP BUS 250V Dual Elem ATDE2R

Product Description

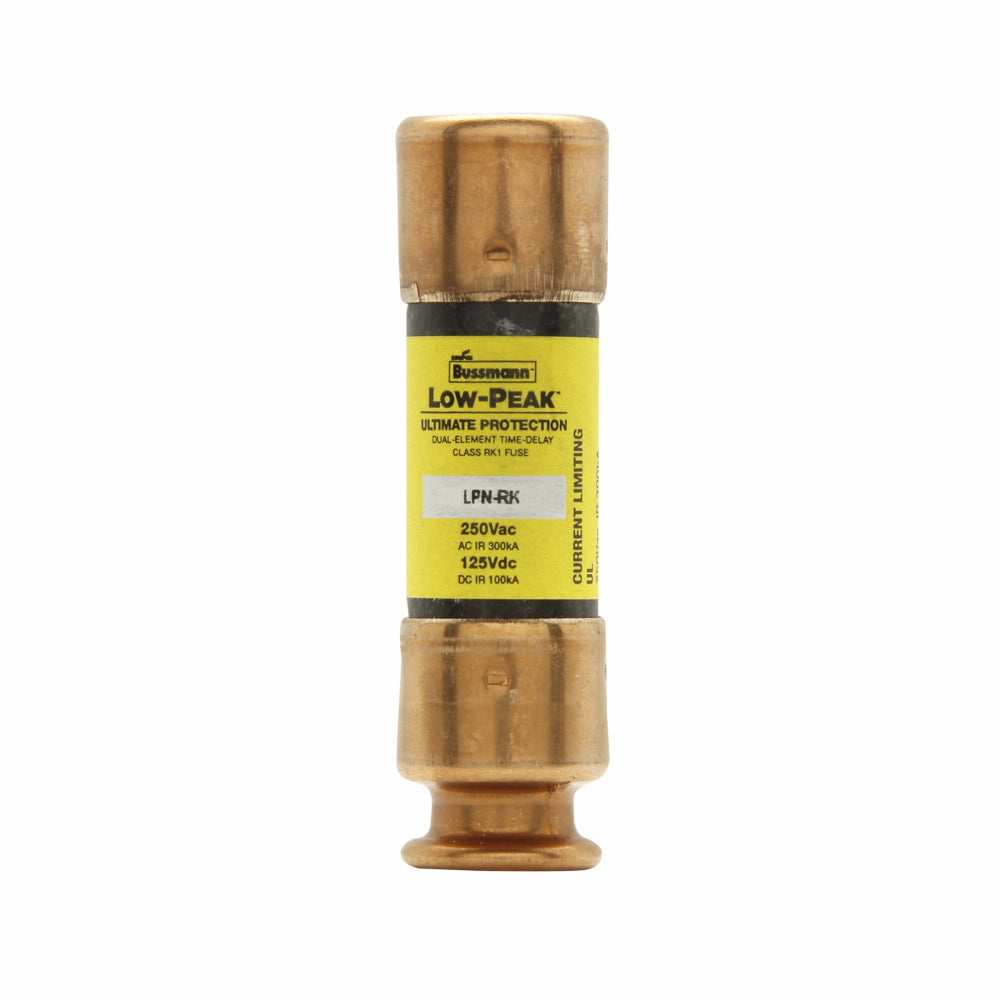

The Eaton LPN-RK-2SP is a Bussmann Low-Peak Time Delay Fuse designed to provide effective protection in electrical systems. This fuse is non-indicating and rejection type with a current limiting feature. It has an amperage rating of 2 A, operates at 250 VAC/125 VDC, and has a high interrupt capacity of 100/300 kA, making it suitable for applications that require reliable fuse operation.

• Current Limiting feature to protect downstream components
• Dual element design that offers time delay performance
• Ferrule terminal for easy installation

Product Highlights

This fuse helps manage short circuits effectively while minimizing damage to equipment. It features insulated end caps to reduce exposure to live components.

Product Information

Standard Information

• Brand: Eaton
• Manufacturer Part Number: LPN-RK-2SP

Technical Specifications

• Amperage Rating: 2 A
• Application: Large Distribution Switchboards, Power Panelboards, Motor Control Centers, Electrical Safety Systems
• Body Size: 0.56 inches diameter x 2 inches length
• Body Type: Cartridge
• Class: RK1
• Element: Dual
• Material: Melamine
• Mounting Type: Holder
• Response Time: 8 seconds at 500%
• Terminal Type: Ferrule
• Voltage Rating: 250 VAC/125 VDC
• Standards/Approvals: CE Certified, UL File No. E4273, CSA Certified
