Eaton LPN-RK-2-1/4SP BUSS 250V FUSE

Product Description

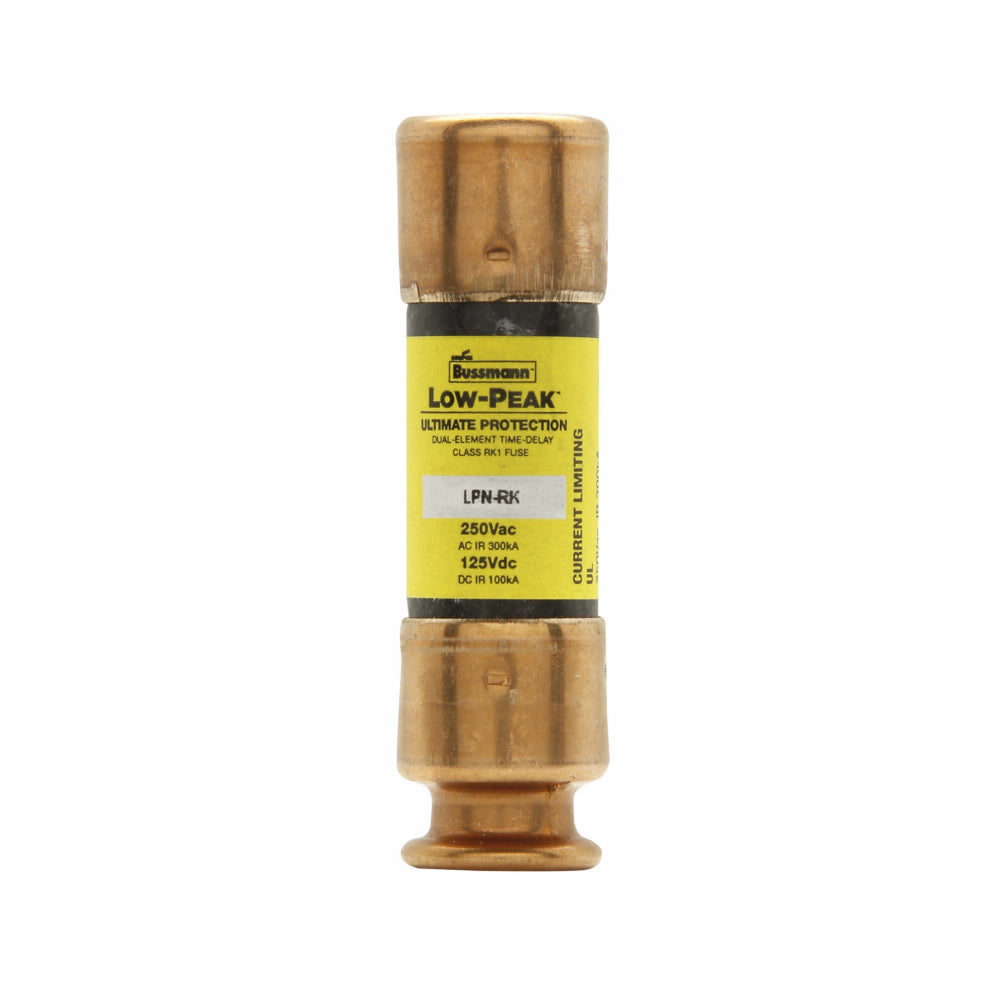

The Eaton LPN-RK-2-1/4SP is a Bussmann Low-Peak Fuse designed for current limiting time delay applications. This fuse operates at 2.25 A with a voltage rating of 250 VAC and 125 VDC. With a 300/100 kAIC interrupt rating, it falls under the RK1 class of fuses. It features a cartridge body type and is specifically designed to prevent damage to electrical components in industrial applications.

• Meets rigorous safety standards.
• Compatible with holder mounting types.
• Suitable for various applications including motor control centers.

Product Highlights

Designed to provide protection in circuit systems with diverse electrical loads, this fuse offers reliable current limitation and fast response to short circuits.

Product Information

Standard Information

• Brand: Eaton
• MPN: LPN-RK-2-1/4SP

Technical Specifications

• Amperage Rating: 2.25 A
• Application: Industrial Facilities, Safety Systems, Distribution Switchboards
• Body Size: 9/16 in Dia x 2 in L
• Body Type: Cartridge
• Class: RK1
• Element: Dual
• Indicating Non Indicating: Non-Indicating
• Material: Melamine
• Mounting Type: Holder
• Response Time: 8 s at 500%
• Terminal Type: Ferrule End
• Voltage Rating: 250 VAC/125 VDC
• Standards/Approvals: CE Certified, UL File No.E4273
