Product Description

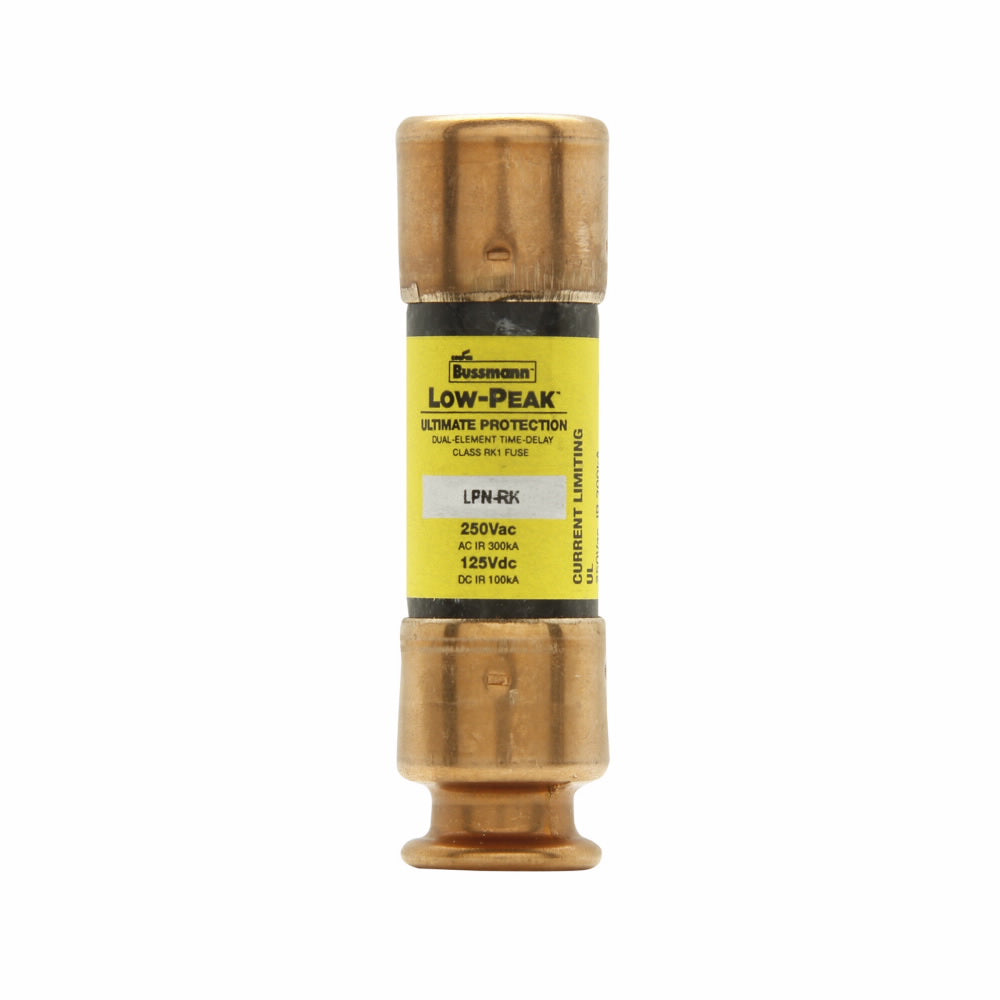

The Bussmann Low-Peak LPN-RK-15SP is a current limiting time delay fuse. This fuse has a current rating of fifteen amps and operates at two hundred fifty volts alternating current or one hundred twenty-five volts direct current. The fuse provides protection against overcurrents and short circuits, making it suitable for various applications including motor control centers and other industrial equipment.
- Current limiting for maximum short circuit protection.
- Time delay feature allows for a controlled response to transient overcurrents.
- Designed with electrically isolated end caps for added safety.
Product Highlights
This fuse features a cylindrical body type and is constructed from melamine. It is ideal for use in industrial facilities, safety systems, and large distribution switchboards. The time delay characteristic of this fuse allows equipment to start without causing a fuse trip, protecting against high inrush currents typical in inductive loads.
Product Information
Standard Information
-
MPN: LPN-RK-15SP
-
Brand: Eaton
Technical Specifications
-
Amperage Rating: 15 A
-
Voltage Rating: 250 VAC/125 VDC
-
Body Size: 0.56 in Dia x 2 in L
-
Body Type: Cylindrical
-
Response Time: 8 s at 500%
-
Element: Dual
-
Material: Melamine
-
Terminal Type: Ferrule End
-
Class: RK1
-
Standards/Approvals: CE Certified | CSA C22.2 | UL Listed
