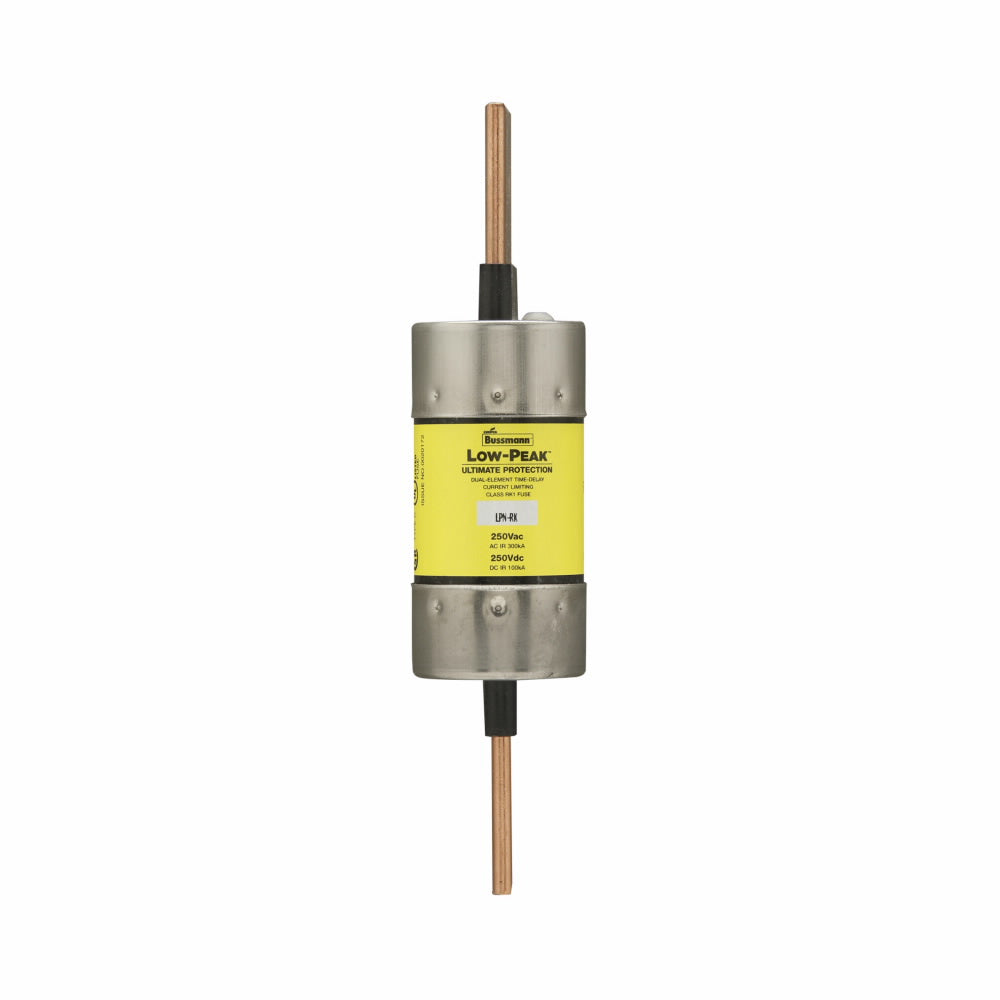

Eaton LPN-RK-150SP BUSS 250V DUAL ELEM FUSE (1)

Product Description

The Eaton LPN-RK-150SP is a Bussmann Low-Peak current limiting time delay fuse. It is designed with a dual element configuration, making it suitable for applications requiring high protection levels. The fuse has a rating of one hundred fifty amps and operates at two hundred fifty volts alternating current or direct current. It features a cartridge body size of 0.61 inches in diameter and 7.13 inches in length.

• Amperage Rating: 150 A
• Voltage Rating: 250 VAC/VDC
• Class: RK1

Product Highlights

This fuse offers reliable protection and performance in electrical systems. Its dual element design provides effective time delay for managing inrush currents. The non-indicating type ensures straightforward installation and usage in various industrial settings.

Product Information

Standard Information

• Manufacturer: Eaton
• UPC: 05171253848

Technical Specifications

• Body Size: 0.61 inches diameter x 7.13 inches length
• Body Type: Cartridge
• Element: Dual
• Response Time: 10 seconds at 500%
• Material: Melamine
• Mounting Type: Holder
• Rejection Type: Rejection
• Standards/Approvals: CE Certified, CSA C22.2 File No. 53787/248.12, RoHS Compliant, UL File No. E4273 Guide JDDZ
• Application: Industrial facilities, safety and security systems, large distribution switchboards
• Terminal Type: Blade End
• Type: Current Limiting Time Delay
