Eaton LPJ-9SP BUS LOW-PEAK CLASS J 9AMP

Product Description

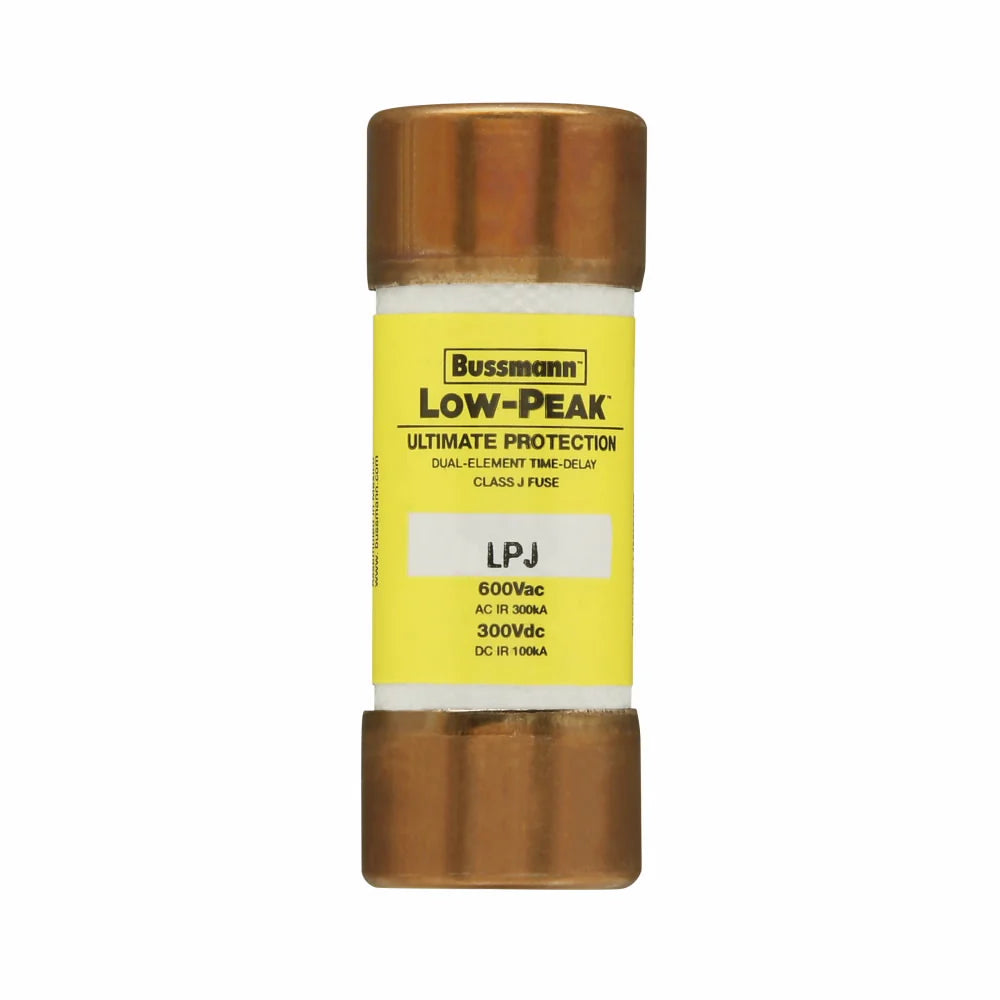

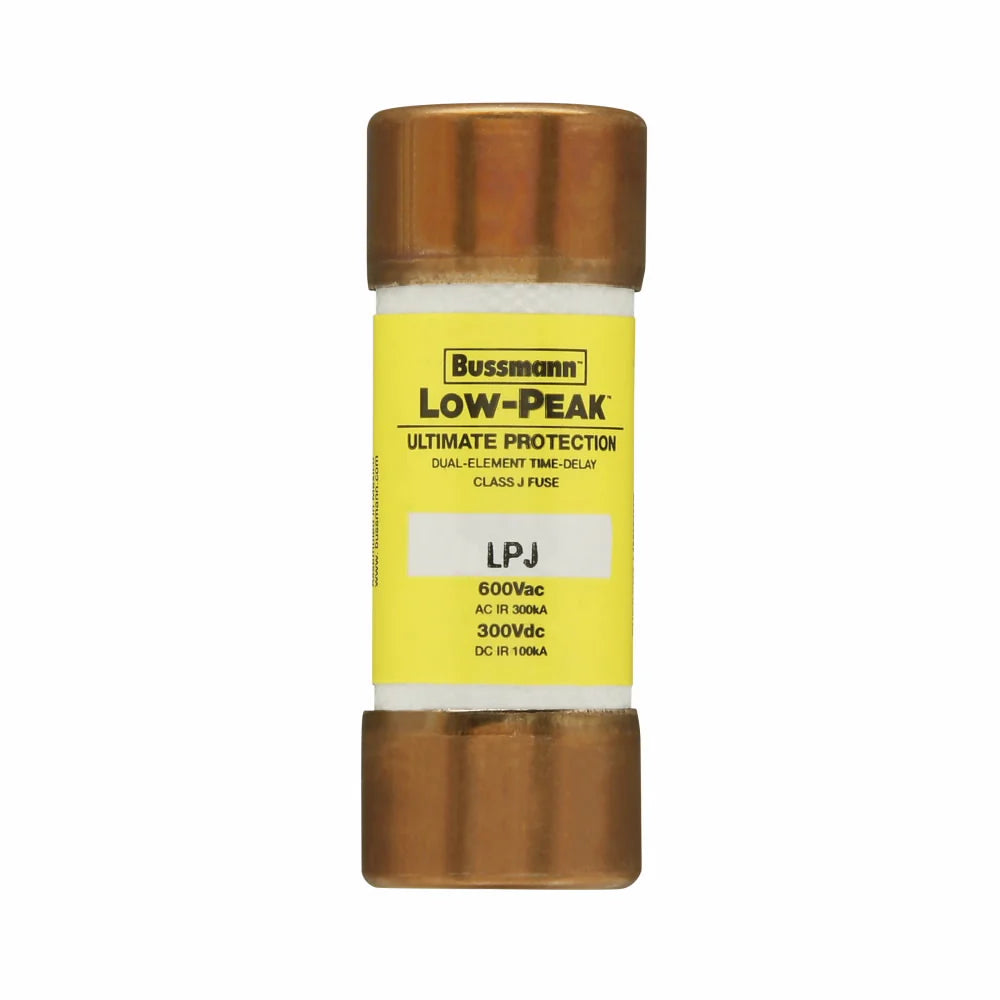

The Eaton LPJ-9SP is a Bussmann Low-Peak current limiting time delay fuse designed for various industrial applications. This fuse operates at nine amps and is rated for six hundred volts alternating current and three hundred volts direct current. The device features a high interrupt rating of three hundred thousand amps at six hundred volts AC and one hundred thousand amps at three hundred volts DC. It has a cylindrical body type with a diameter of zero point eight one inches and a length of two point two five inches.

• High interrupt ratings for extensive applications
• Current limiting technology protects downstream devices
• Designed for panelboard mains and machinery disconnects

Product Highlights

This fuse supports maintenance and safety systems in various settings, ensuring reliable performance and protecting against overloads and short circuits.

Product Information

Standard Information

• Brand: Eaton
• MPN: LPJ-9SP

Technical Specifications

• Amperage Rating: 9 A
• Voltage Rating: 600 VAC / 300 VDC
• Body Type: Cylindrical
• Response Time: 10 s at 500%
• Element: Dual
• Terminal Type: Ferrule End
• Material: Melamine
• Standards/Approvals: CE Certified, CSA C22.2, RoHS Compliant, UL File No.E4273
