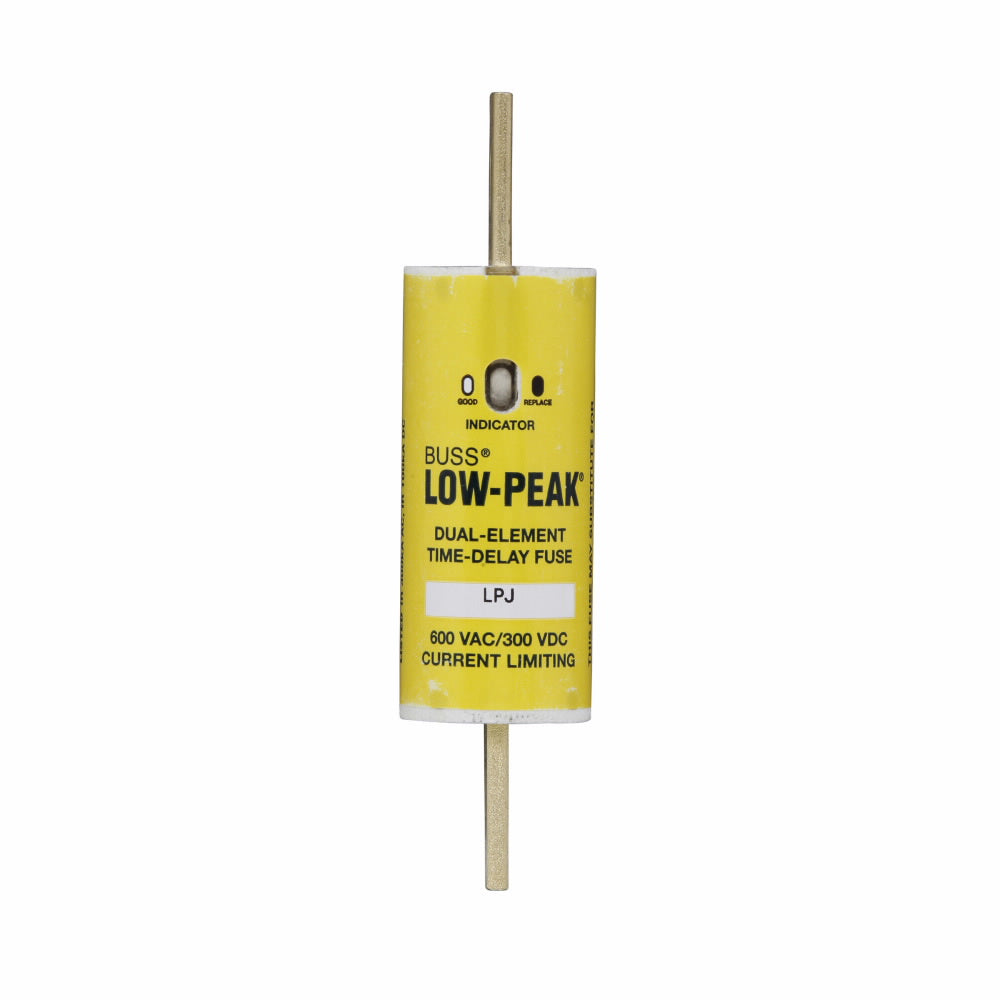

Eaton LPJ-90SPI Bussmann Series LPJ-90SPI 90 Amp 600 VAC 300 VDC Class J Dual Element Time Delay Fuse

Product Description

The Eaton LPJ-90SPI is a Bussmann series fuse designed for power distribution. This time delay fuse can handle up to 90 amps and operates at 600 volts AC and 300 volts DC. It features a dual element design which allows for current limiting. The indicator shows when the fuse is blown, ensuring reliable operation.

• Time delay allows for temporary overload handling
• Current-limiting capability protects downstream components
• Compact design fits various applications

Product Highlights

The LPJ-90SPI fuse meets industry standards, providing effective protection for branch circuits and equipment while minimizing nuisance trips.

Product Information

Standard Information

• Brand: Eaton
• Manufacturer: Bussmann Mfg.

Technical Specifications

• MPN: LPJ-90SPI
• Amperage Rating: 90 A
• Voltage Rating: 600 VAC / 300 VDC
• Body Size: 1.13 inches Diameter x 4.63 inches Length
• Element: Dual
• Class: J
• Response Time: 10 seconds at 500%
• Interrupt Rating: 300 kAIC at 600 VAC, 100 kAIC Vdc
• Material: Melamine
