Product Description

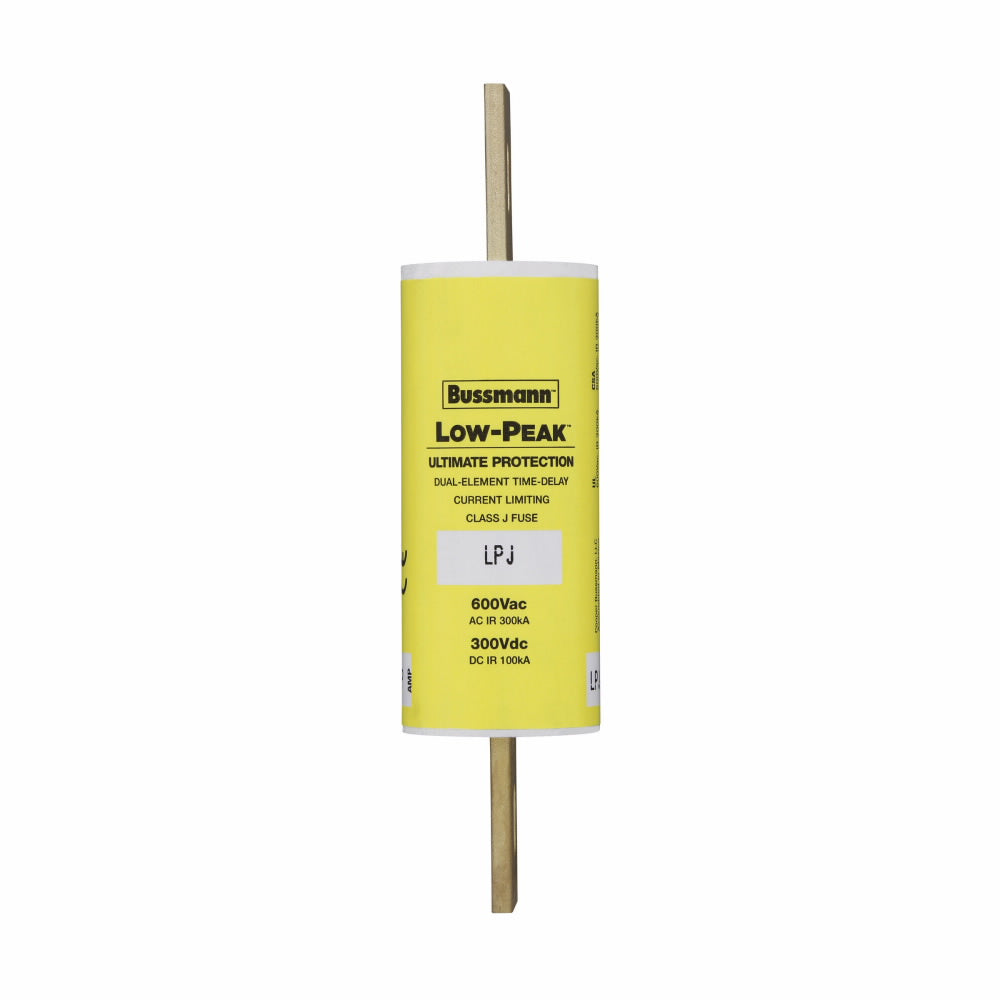

Bussmann Low-Peak Time Delay Fuse, MPN: LPJ-80SP, is designed for current limiting applications. This fuse operates at 80 amps and can handle voltage ratings up to 600 VAC and 300 VDC. Ideal for branch circuits and industrial applications, it protects downstream components by minimizing undue fuse openings caused by brief overloads.
- Long time delay limits unnecessary fuse openings.
- Current limitation for downstream protection.
- Fast response time of 10 seconds for high inrush loads.
Product Highlights
This fuse offers a selectivity ratio of 2:1, ensuring protection that does not extend beyond the failed circuit. The dual-element construction runs cooler compared to standard fuses, providing efficient operation while safeguarding your electrical components.
Product Information
Standard Information
-
Manufacturer: Eaton
-
Manufacturer Part Number: LPJ-80SP
Technical Specifications
-
Amperage Rating: 80 A
-
Voltage Rating: 600 VAC / 300 VDC
-
Body Size: 1.13 inches Diameter x 4.63 inches Length
-
Body Type: Cartridge
-
Class: J
-
Element: Dual
-
Material: Melamine
-
Mounting Type: Holder
-
Response Time: 10 seconds
-
Terminal Type: Knife Blade
-
Standards/Approvals: CE Certified, CSA C22.2 No. 248.8, UL Guide No. JDDZ, UL File No. E4273
