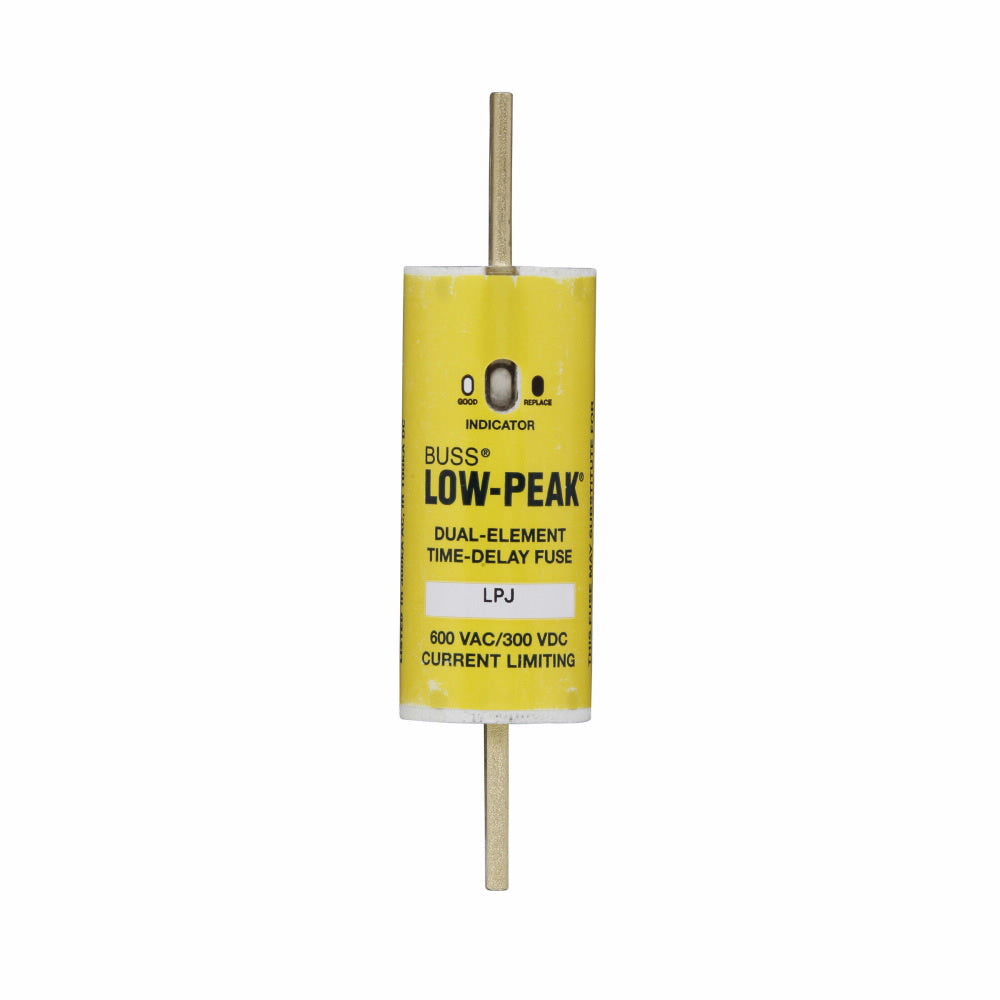

Eaton LPJ-70SPI Buss Indicating Fuse Current Limiting Time Delay 70 A 600 VAC/300 VDC

Product Description

Eaton LPJ-70SPI is a Bussmann Low-Peak fuse. This fuse is designed for current limiting time delay applications. It has an amperage rating of seventy amps. The voltage rating is six hundred volts AC or three hundred volts DC. This unit is classified as a type J fuse. It features a cartridge body with a bolted blade end terminal, and it offers excellent short circuit protection.

• Suitable for industrial facilities
• Time delay performance minimizes nuisance trips
• UL listed with high interrupt rating

Product Highlights

The LPJ-70SPI provides reliable protection against overloads and short circuits. This fuse also features a clear indication when it has blown.

Product Information

Standard Information

• Manufacturer: Eaton
• Manufacturer Part Number: LPJ-70SPI

Technical Specifications

• Amperage Rating: 70 A
• Voltage Rating: 600 VAC/300 VDC
• Body Size: 1.13 in Dia x 4.63 in L
• Class: J
• Body Type: Cartridge
• Element: Dual
• Indicating: Yes
• Response Time: 10 s at 500%
• Standards/Approvals: CE Certified, CSA C22.2 File No.53787/248.8, RoHS Compliant, UL File No.E4273 Guide JDDZ
