Eaton LPJ-60SPI BUS Fuse 600V Indicating LPJ-60SP

Product Description

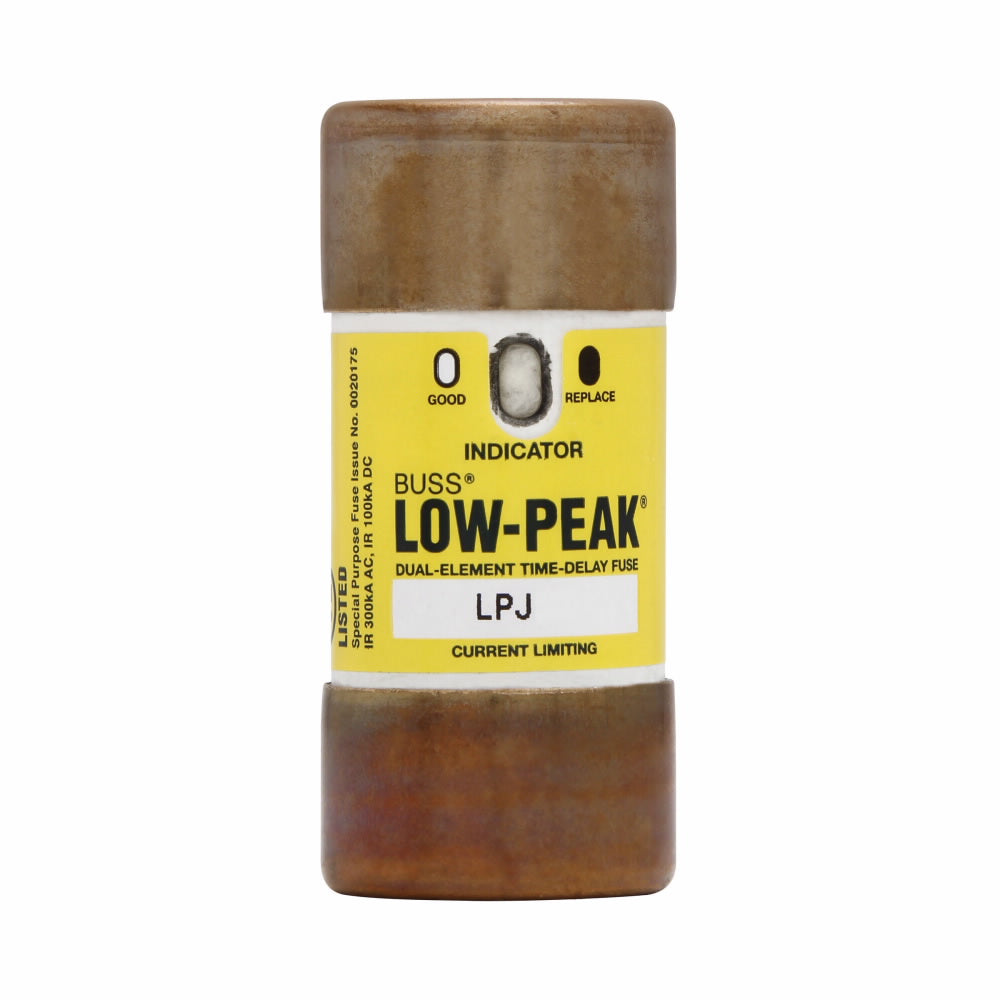

The Eaton LPJ-60SPI is a current limiting time delay fuse rated for sixty amperes and works with six hundred volts alternating current or three hundred volts direct current. This fuse has a cylindrical body type and is designed to protect electrical systems from overloads and short circuits.

• Current limiting protects downstream components.
• 10 seconds time delay at five hundred percent rated current.
• Includes indication for fuse status.

Product Highlights

The Eaton LPJ-60SPI fuse is suitable for various applications, including industrial environments and power panelboards.

Product Information

Standard Information

• Manufacturer: Eaton
• Product Name: LPJ-60SPI BUS FUSE 600V INDICATING

Technical Specifications

• Amperage Rating: 60 A
• Voltage Rating: 600 VAC / 300 VDC
• Interrupting Rating: 300 kA (AC), 100 kA (DC)
• Body Diameter: 1.06 inches
• Body Length: 2.38 inches
• Body Type: Cylindrical
• Response Time: 10 seconds at 500%
• Material: Melamine
• Mounting Type: Holder
• Class: J
• Indicating: Yes
• Standards/Approvals: CE Certified, CSA C22.2, RoHS Compliant, UL listed
