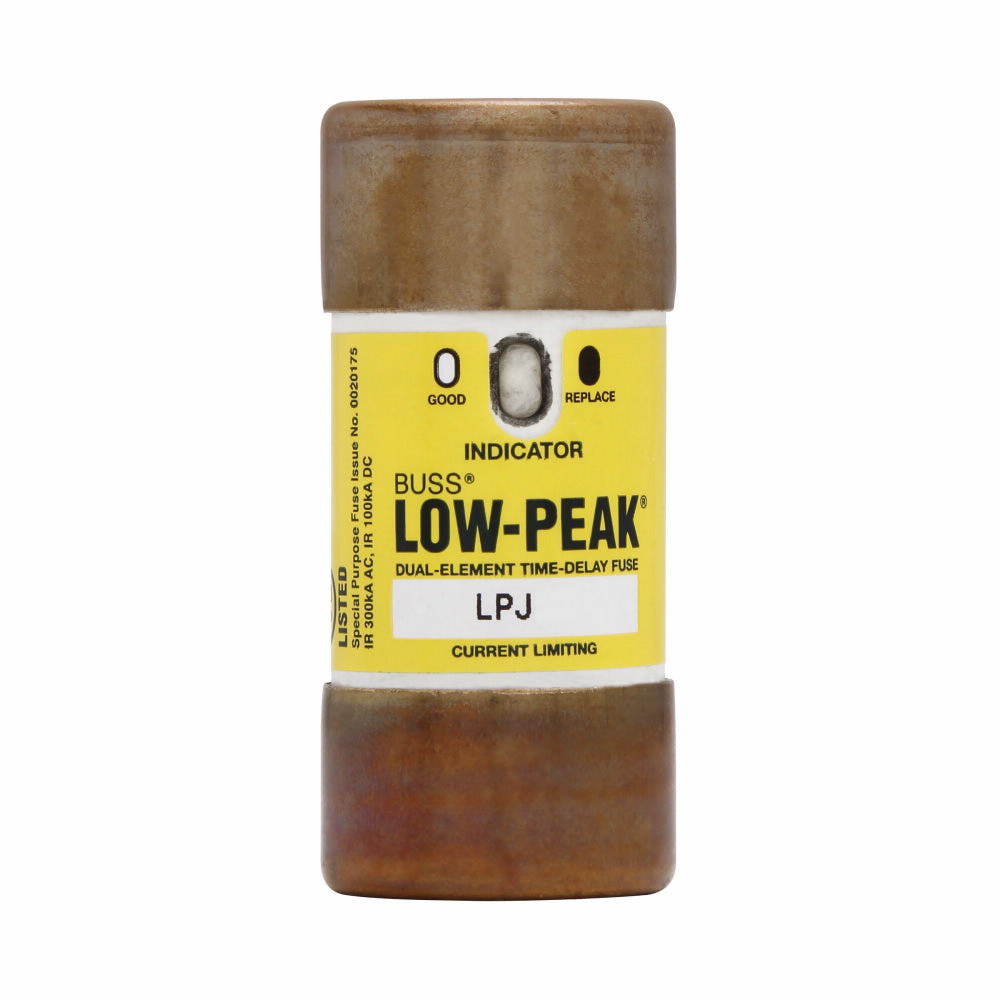

Eaton LPJ-40SPI BUS FUSE LOW-PEAK CLASS J WITH INDICATOR (1)

Product Description

The Eaton LPJ-40SPI is a Bussmann Low-Peak Fuse designed for effective power management. This fuse operates at 40 Amperes and supports 600 VAC and 300 VDC ratings. It offers a current limiting time delay feature, suitable for use in various industrial settings.

• 40 Amperes rated for optimal performance
• 600 VAC and 300 VDC voltage ratings
• Dual element for improved thermal protection

Product Highlights

This fuse is critical for protecting electrical circuits against overload and short circuit conditions.

Product Information

Standard Information

• Manufacturer: Eaton
• Series: LPJ

Technical Specifications

• Amperage Rating: 40 A
• Voltage Rating: 600 VAC/300 VDC
• Body Size: 1.06 inches diameter x 2.38 inches length
• Body Type: Cylindrical
• Class: J
• Element: Dual
• Material: Melamine
• Response Time: 10 seconds at 500%
• Mounting Type: Holder
• Standards/Approvals: CE Certified, CSA C22.2, RoHS Compliant, UL File No.E4273 Guide JDDZ
• Terminal Type: Ferrule End
