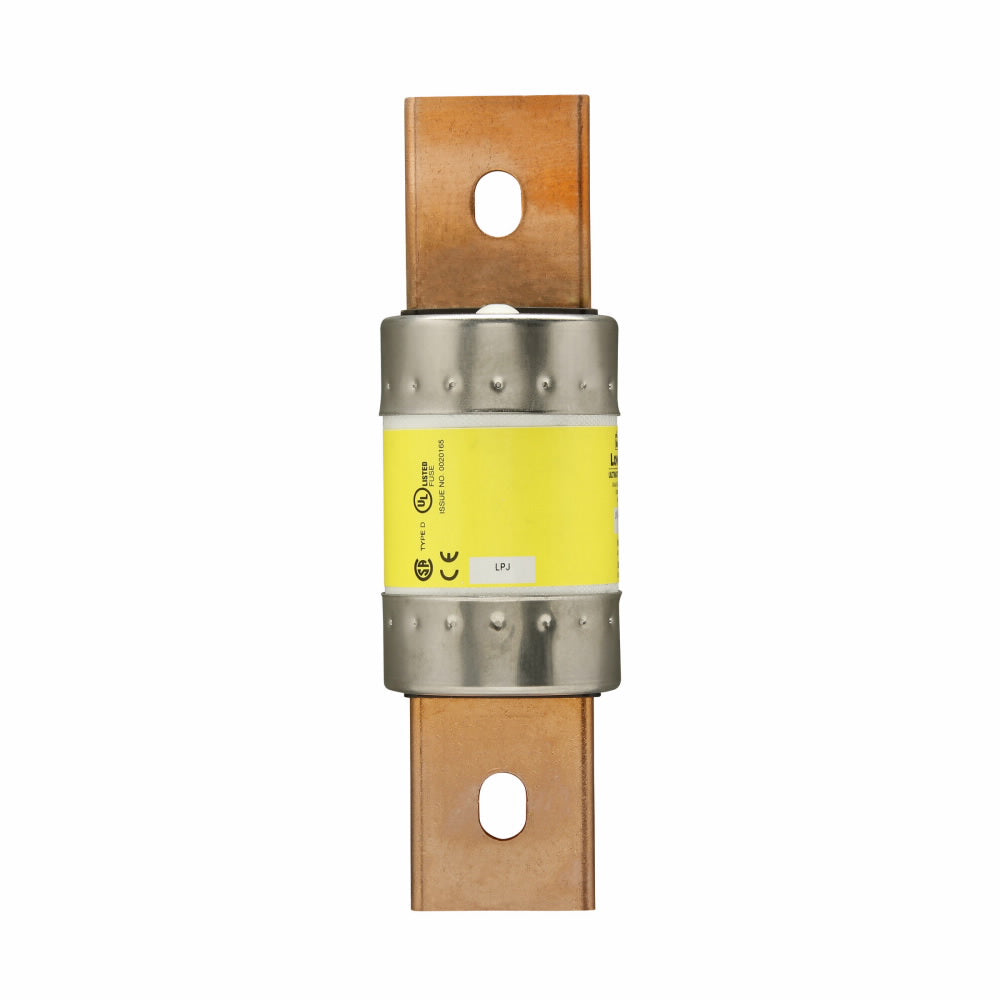

Eaton LPJ-400SP BUS FUSE LOW PEAK CLASS J FUSE 400A REPLACES JHC400

Product Description

The Eaton LPJ-400SP is a current limiting time delay fuse with a rating of four hundred amps. It operates at six hundred volts AC or three hundred volts DC. This fuse is designed for optimal performance in industrial applications. It features a cartridge body and is part of the Class J fuses used in various electrical systems.

• Rated for 400 amps
• 600 VAC / 300 VDC voltage rating
• 300/100 kAIC interrupt rating

Product Highlights

The LPJ-400SP fuse provides superior protection for electrical circuits by limiting the current and ensuring equipment safety.

Product Information

Standard Information

• Manufacturer: Eaton
• Product SKU: 22743

Technical Specifications

• Amperage Rating: 400 A
• Voltage Rating: 600 VAC / 300 VDC
• Body Type: Cartridge
• Response Time: 10 s at 500%
• Material: Melamine
• Body Size: 2.11 in Dia x 7.126 in L
• Indicating: Non-Indicating
• Class: J
• Standards/Approvals: CE Certified, CSA C22.2, RoHS Compliant, UL File No.E4273
