Eaton LPJ-35SP Low-Peak Time Delay Fuse 35A 600VAC/300VDC

Product Description

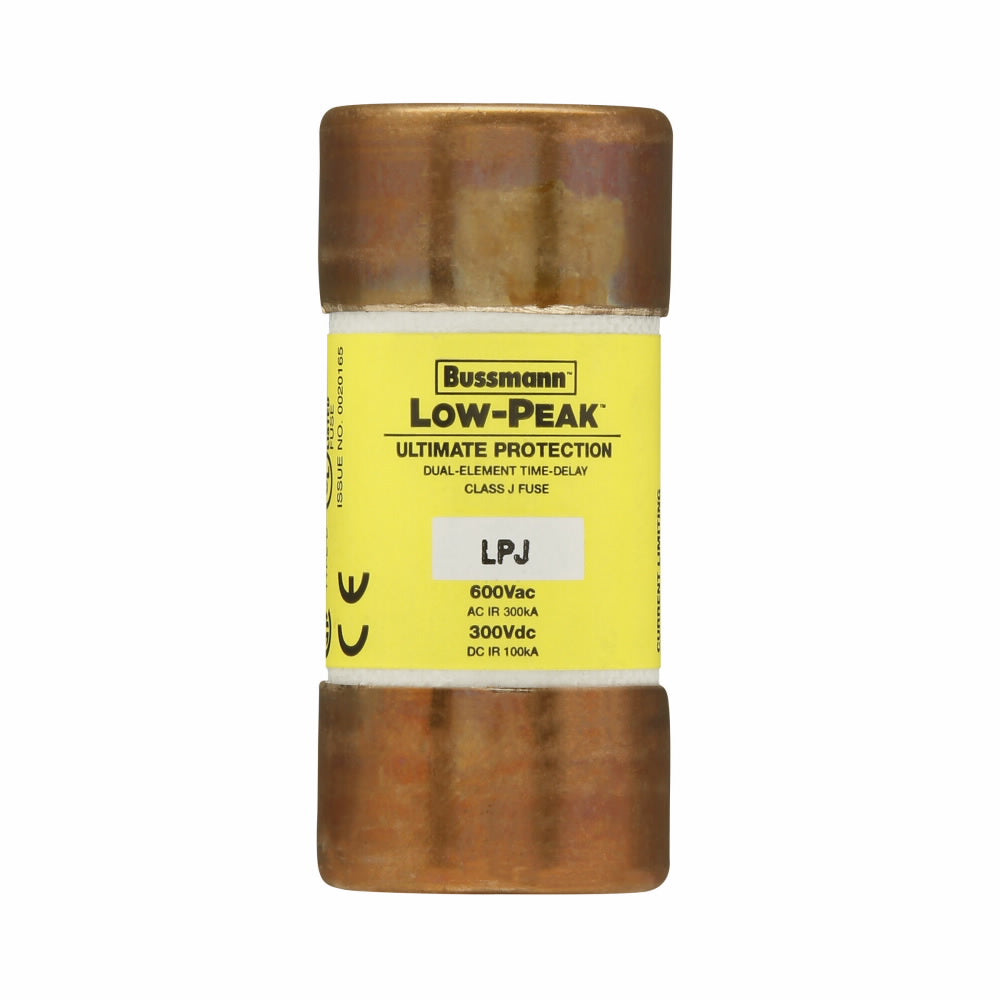

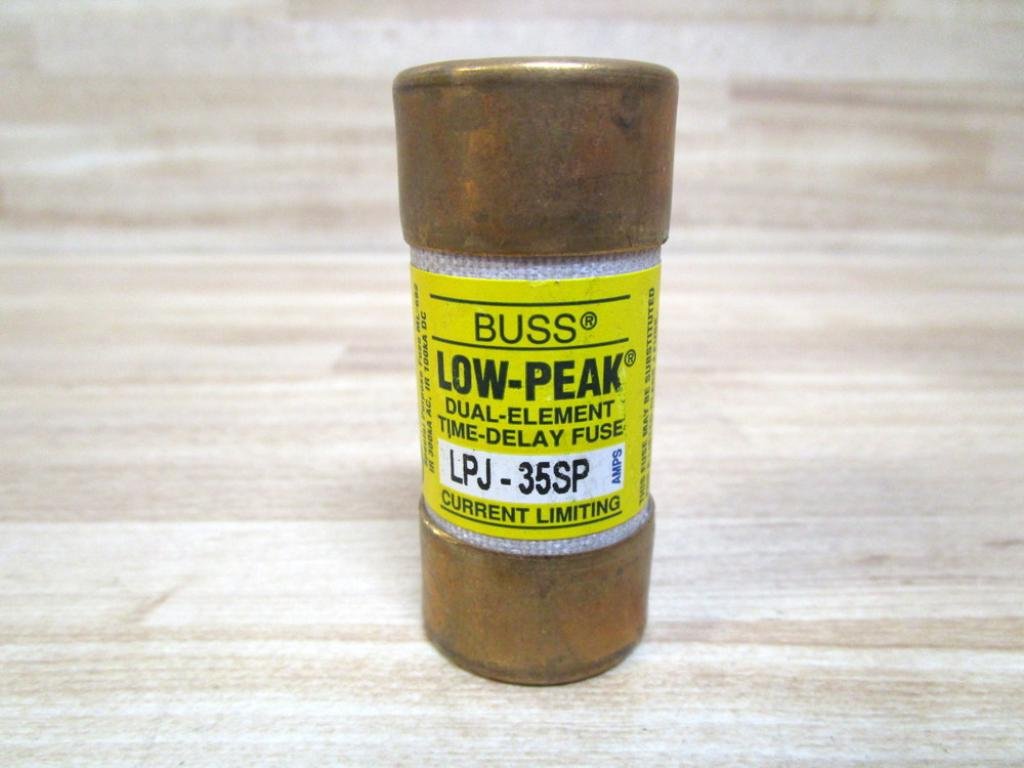

Eaton's LPJ-35SP fuse is a dual-element, cylindrical, current limiting time delay fuse with a rating of 35 amps and voltage rating of 600 VAC/300 VDC. It offers a long time delay at 500 percent of rated current, minimizing unnecessary fuse operations due to transient overloads and surge currents.

• Dual-element design provides ultimate protection
• Features a 300/100 kA interrupt rating at 600 VAC/300 VDC
• Time delay for high inrush loads linked with Class J current limitation

Product Highlights

This fuse is crafted from melamine, ensuring robust performance in industrial settings. It is designed with fast short-circuit protection and a selective coordination ratio of 2:1 within the Low-Peak series, which aids in containing system outages to the circuit of occurrence.

Specifications

• Amperage: 35 A
• Voltage: 600 VAC / 300 VDC
• Interrupt Rating: 300/100 kA
• Response Time: 10 s
• Body Size: 1.06 in Dia x 2.38 in L
• Terminal Type: Ferrule
• Mounting Type: Holder
• Standards/Approvals: CE Certified, UL Listed, CSA Class 1422-02
