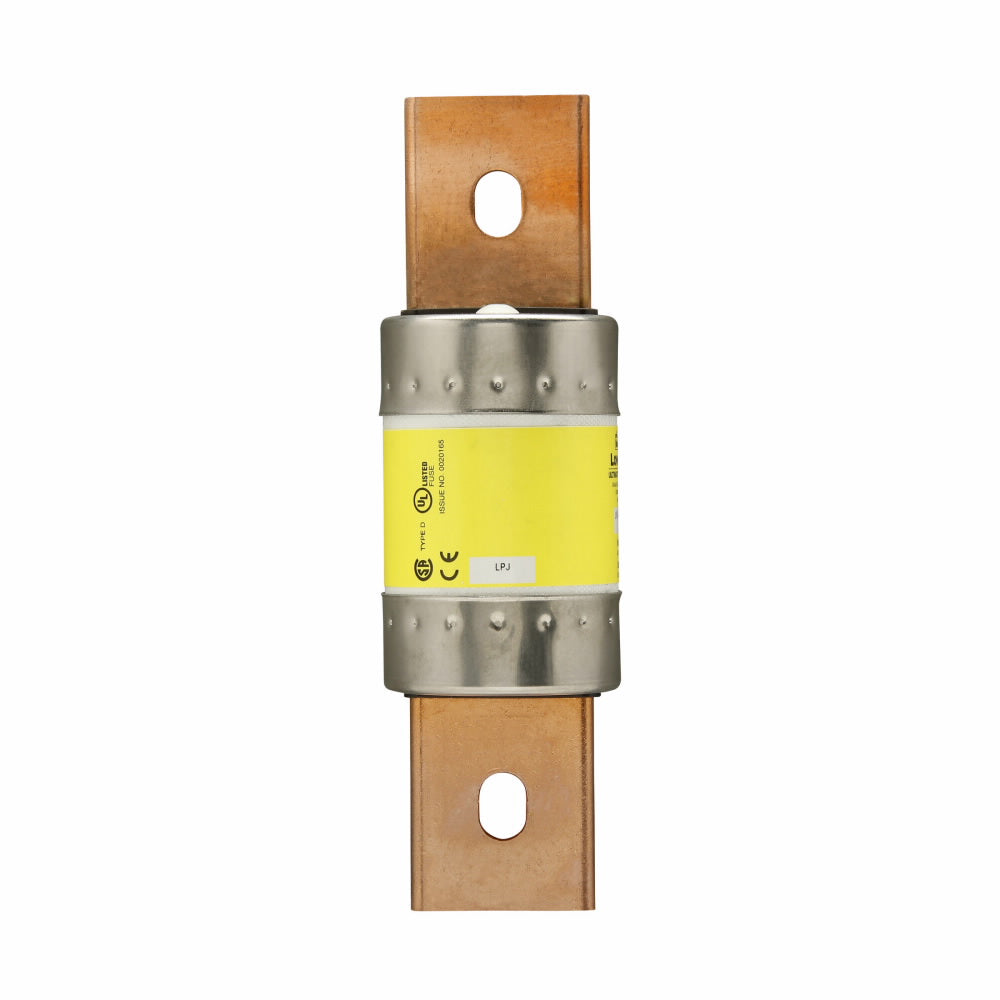

Eaton LPJ-350SP Bussmann Low-Peak LPJ Current Limiting Time Delay Fuse 350 A (2.11 in Dia x 7.126 in L)

Product Description

Eaton LPJ-350SP is a Bussmann Low-Peak Class J time-delay, dual-element current-limiting fuse rated 350 A for 600 VAC / 300 VDC service. It provides current limitation and a 10 second time delay at 500% for selective coordination and protection of panelboards, motor circuits, and industrial controls, and features bolted blade terminals and a melamine cartridge body measuring 2.11 in diameter by 7.126 in length.

• 350 A Class J, dual-element time-delay fuse with 10 s at 500% response
• Current-limiting design with 300 kA interrupting rating at 600 VAC and 100 kA at 300 VDC
• Bolted blade terminals, melamine cartridge body, holder mount; dimensions 2.11 in dia x 7.126 in L

Product Highlights

Class J, dual-element, time-delay current-limiting fuse for panelboard and motor protection with high interrupting rating and bolted blade terminals.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: LPJ-350SP
• Country of Origin: Mexico

Technical Specifications

• Brand: Eaton
• Manufacturer Part Number: LPJ-350SP
• Series: LPJ
• Product Type: Fuse
• Fuse Type: Time delay, current limiting
• Class: J
• Current Rating: 350 A
• Voltage Rating: 600 VAC / 300 VDC
• Interrupting Rating: 300 kA at 600 VAC; 100 kA at 300 VDC
• Response Time: 10 seconds at 500% rated current
• Number of Elements: Dual
• Body Type: Cartridge
• Material: Melamine
• Dimensions: 2.11 in diameter x 7.126 in length
• Terminal Type: Bolted blade
• Mounting Type: Holder
• Applications: Power panelboard; branch circuit breaker panelboard mains; machinery disconnect; industrial control; motor protection
• Approvals/Certifications: UL; CSA C22.2; CE; RoHS compliant; UL Files E4273, E56412; UL Guide JDDZ/JFHR
• Country of Origin: MEX
