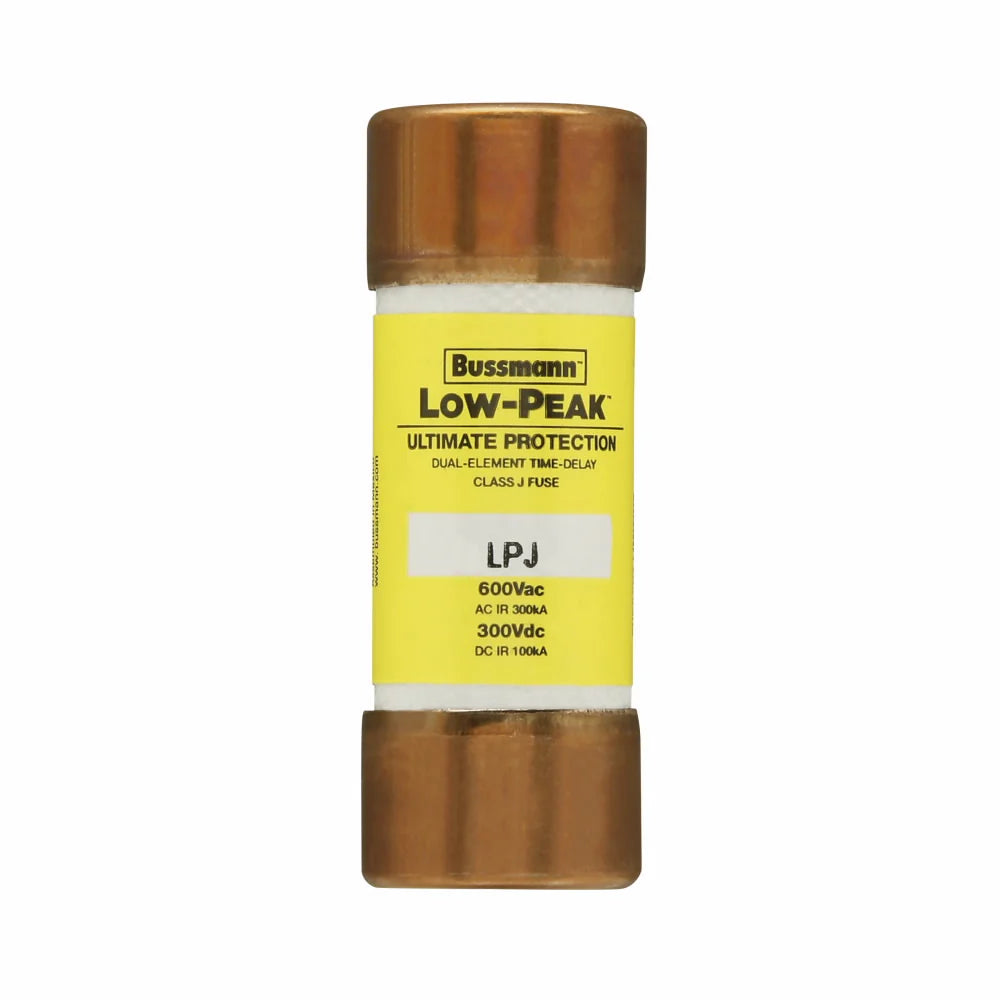

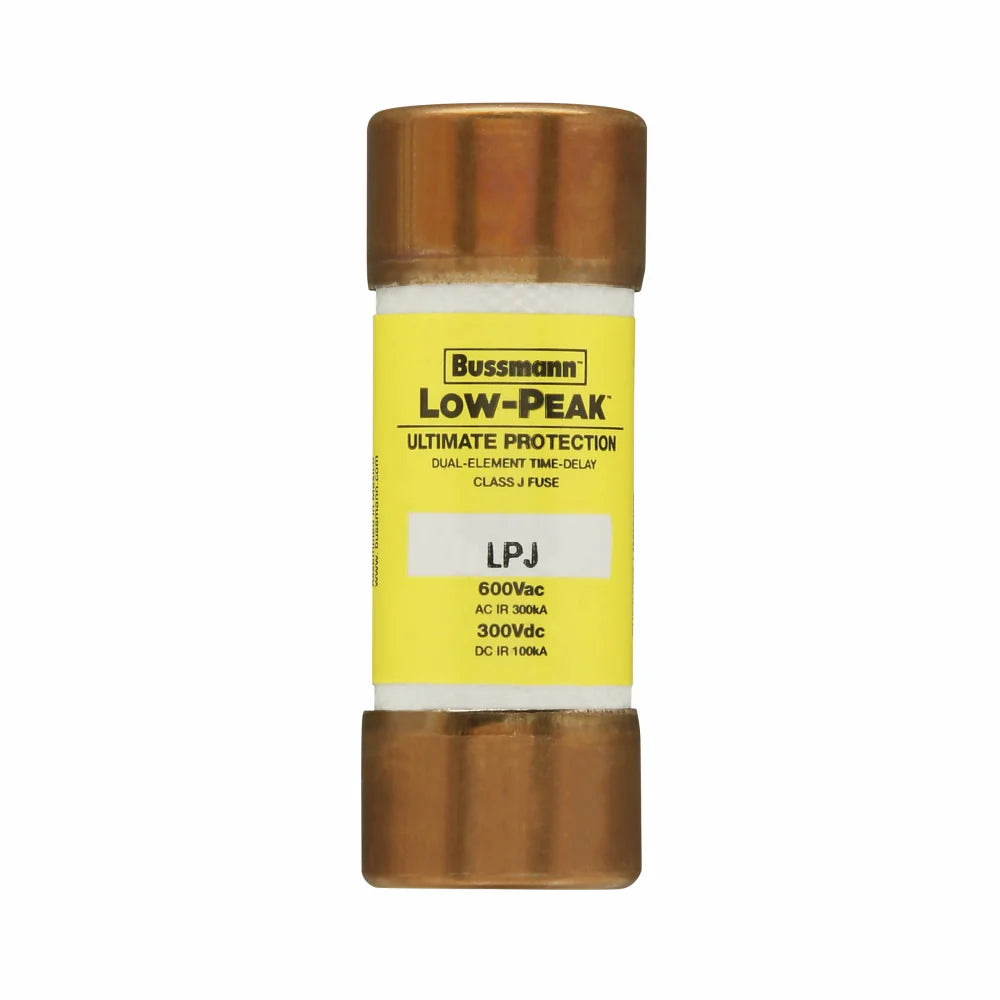

Eaton LPJ-2SP BUS 10W PEAK CLASS J 2AMP

Product Description

The Eaton LPJ-2SP is a Bussmann Low-Peak Time Delay Fuse designed for current limiting. This fuse operates at two amperes and is rated for six hundred volts AC and three hundred volts DC. It features a ten-second delay at five hundred percent rated current for high inrush applications.

• Current limiting design protects against overloads.
• Compatible with Class J fuse applications.
• Constructed with durable melamine material.

Product Highlights

The LPJ-2SP fuse is suitable for a variety of applications, including machinery disconnects and safety systems, ensuring reliable protection against short circuits and overloads.

Product Information

Standard Information

• Manufacturer: Eaton
• UPC: 05171252280

Technical Specifications

• Amperage Rating: 2 A
• Voltage Rating: 600 VAC / 300 VDC
• Interrupt Rating: 100/300 kA
• Body Size: 0.81 in Diameter x 2.25 in Length
• Body Type: Cylindrical
• Element: Dual
• Indicating: Non-Indicating
• Response Time: 10 s at 500%
• Mounting Type: Holder
