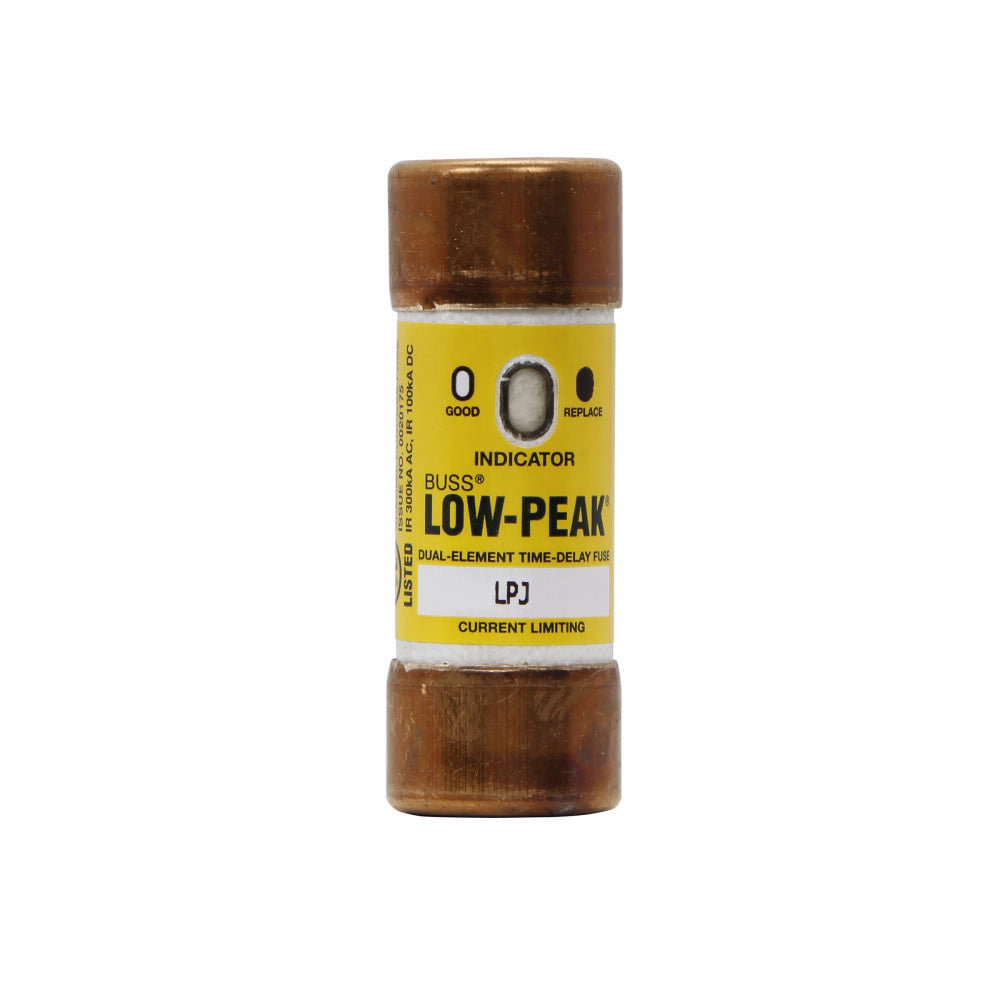

Eaton LPJ-20SPI BUS FUSE INDICATING (1)

Product Description

The Eaton LPJ-20SPI is a Bussmann Low-Peak Time Delay Fuse for current limiting applications. This fuse is rated at twenty amps and can handle voltages up to six hundred VAC or three hundred VDC. It features a cylindrical body with a diameter of zero point eighty-one inches and a length of two point twenty-five inches.

• Current limiting design protects downstream components from damage.
• Optional replace fuse indication offers visibility for maintenance.
• UL Class J provides versatility for various applications.

Product Highlights

This fuse is ideal for branch circuit panelboards, industrial controls, and machinery disconnects. It minimizes unnecessary interruptions due to temporary overloads.

Product Information

Standard Information

• Amperage Rating: 20 A
• Voltage Rating: 600 VAC / 300 VDC

Technical Specifications

• Body Size: 0.81 in Diameter x 2.25 in Length
• Body Type: Cylindrical
• Response Time: 10 s at 500%
• Element: Dual
• Indicating Type: Indicating
• Mounting Type: Holder
• Application: Suitable for branch circuit breaker panelboard mains
• Standards/Approvals: CE Certified, RoHS Compliant, UL File No. E4273
