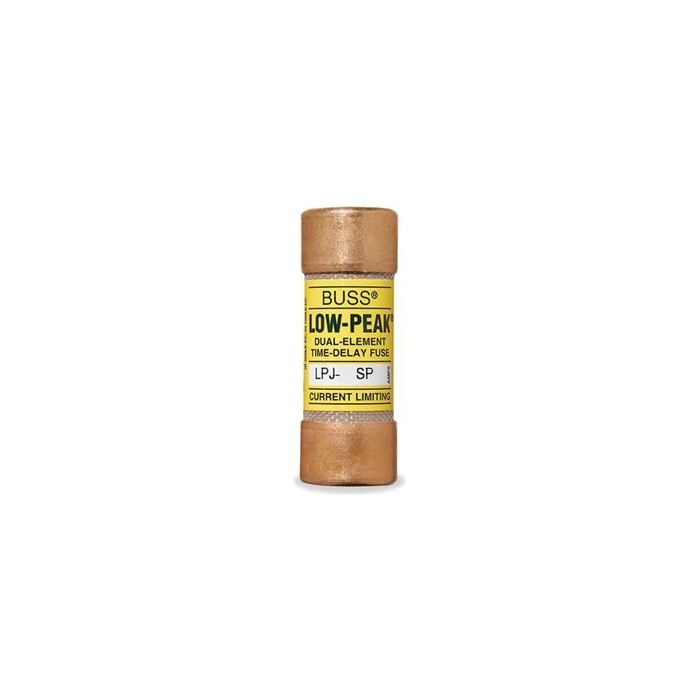

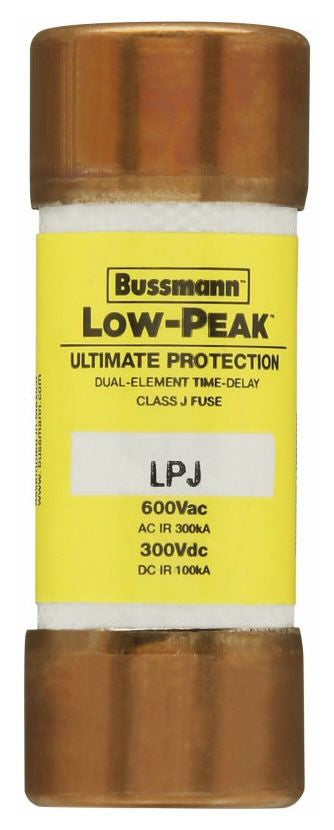

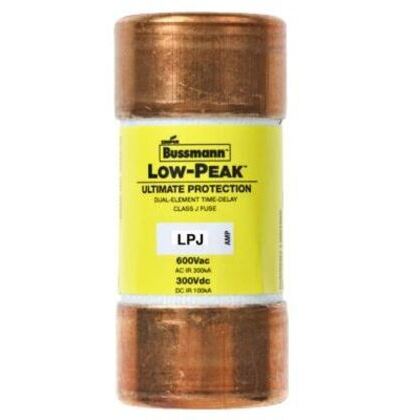

Eaton LPJ-2-1/2SP Low-Peak Class J Time-Delay Fuse 600V (0.81 in x 2.25 in)

Product Description

Eaton LPJ-2-1/2SP is a Low-Peak Class J dual-element time-delay current-limiting fuse rated 2-1/2 A and 600 VAC / 300 VDC. It provides high interrupting capacity (300 kA AC, 100 kA DC) and a minimum 10 second time delay at 500% of rating to accommodate inrush currents. The cartridge-style fuse features ferrule end terminals and a cylindrical melamine body sized 0.81 in diameter by 2.25 in length for panelboard and motor control applications.

• Dual-element time-delay design; minimum 10 s ride-through at 500% of rating for high inrush loads
• Ratings: 2.5 A, 600 VAC / 300 VDC; interrupting capacity 300 kA AC and 100 kA DC
• Physical: 0.81 in diameter x 2.25 in length; melamine cylindrical body; ferrule end terminals; cartridge/holder mounting

Product Highlights

Low-Peak Class J current-limiting, time-delay fuse for branch circuits, panelboards, motor control, and industrial equipment

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: LPJ-2-1/2SP
• Country of Origin: Mexico

Technical Specifications

• Brand: Eaton (Bussmann)
• MPN: LPJ-2-1/2SP
• Series: LPJ / Low-Peak
• Type: Current limiting time-delay fuse
• Class: J
• Amperage Rating: 2.5 A
• Voltage Rating AC: 600 VAC
• Voltage Rating DC: 300 VDC
• Interrupting Rating AC: 300 kAIC
• Interrupting Rating DC: 100 kAIC
• Time Delay / Response: Minimum 10 s at 500% rating
• Element: Dual-element
• Body Material: Melamine
• Body Type: Cylindrical
• Body Size (Dia x L): 0.81 in diameter x 2.25 in length
• Terminal Type: Ferrule end
• Mounting Type: Holder / cartridge
• Standards/Approvals: UL, CSA, CE, RoHS
• Applications: Power panelboards; branch circuit breaker panelboard mains; industrial control; machinery disconnects; motor protection
• UPC: 051712522717
• Weight: 0.19 lb
• Country Of Origin: MEX
