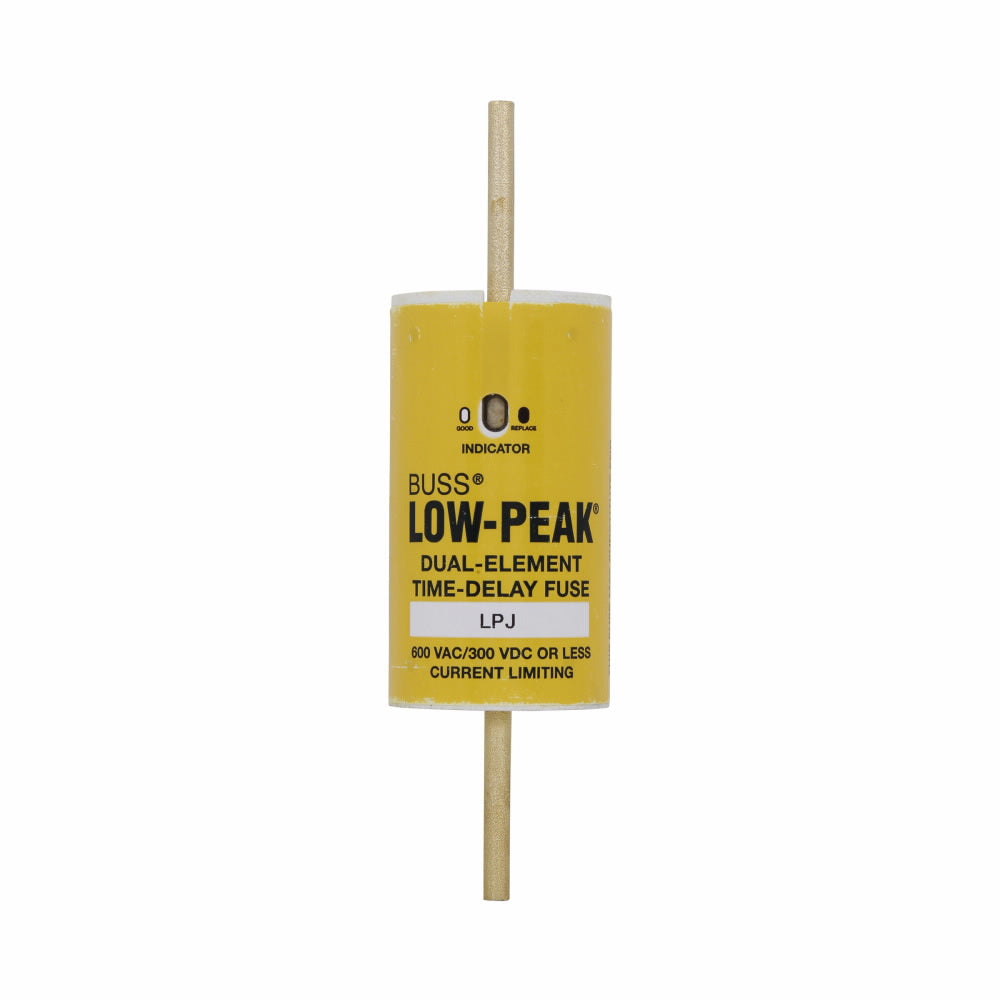

Eaton LPJ-175SPI Time Delay Fuse 175A 600V Class J Indicating Non-Rejection

Product Description

Eaton's Bussmann series LPJ-175SPI fuse features a current-limiting, time-delay design with a dual element that enhances functionality in industrial and commercial applications. Primarily used for protection against overloads and short circuits, this Class J cartridge fuse operates at 600V AC and 300V DC with a remarkable interrupt rating of 300kA at AC and 100kA at DC.

• Indicating style provides visual blowout confirmation
• Rejection-style design prevents incorrect fuse installation
• Dual-element construction offers a time delay of 10 seconds at 500% overload

Product Highlights

The LPJ-175SPI fuse is designed for reliability and safety, with a robust construction that ensures durability in demanding environments. The melamine body provides superior insulation and resistance to high temperatures.

Product Information

Standard Information

• Brand: Eaton
• Body Material: Melamine
• Body Size: 1.63 in Diameter x 5.75 in Length

Technical Specifications

• Amperage Rating: 175 A
• Voltage Rating: 600 VAC / 300 VDC
• Interrupt Rating: 300 kA at 600VAC, 100 kA at 300VDC
• Mounting Type: Holder
• Terminal Type: Bolted Blade End
• Standards/Approvals: CE Certified, CSA C22.2 File No.53787/248.8, RoHS Compliant, UL File No.E4273 Guide JDDZ
