Eaton LPJ-125SP Low-Peak Fuse 125A 600VAC/300VDC Class-J

Product Description

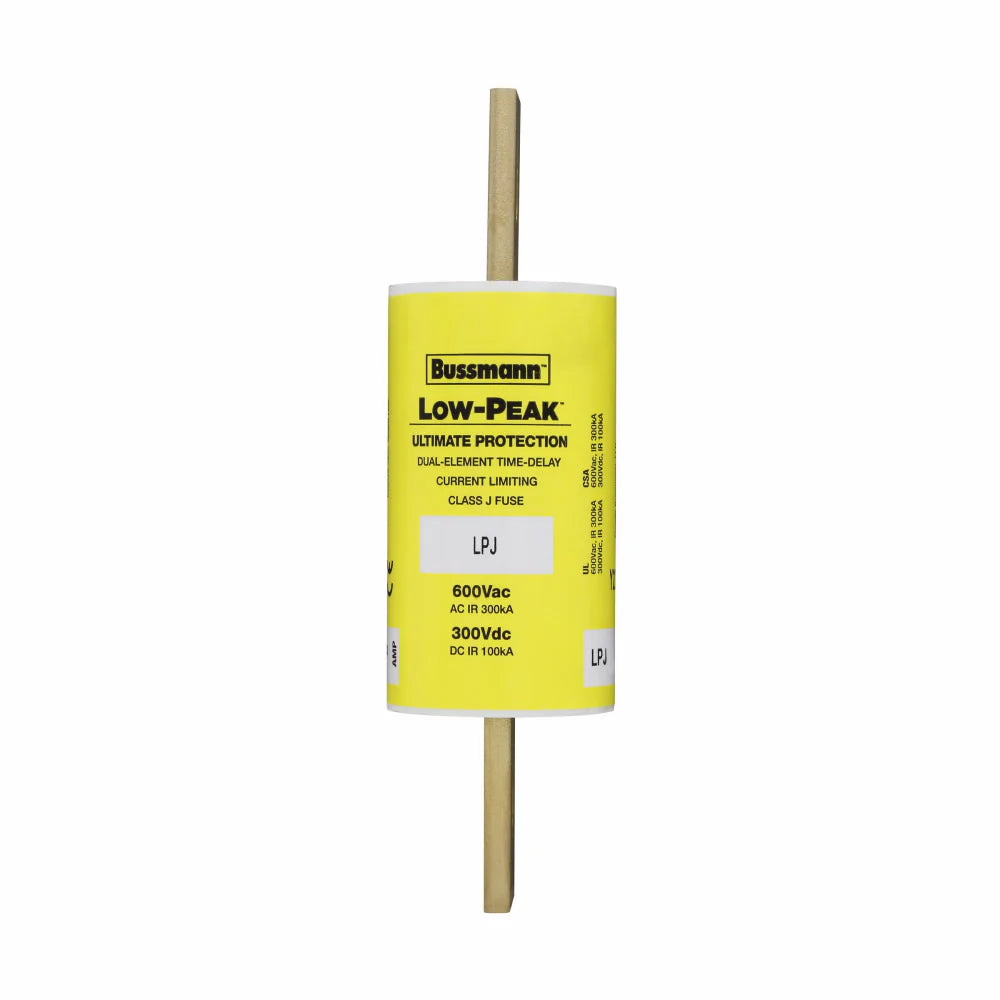

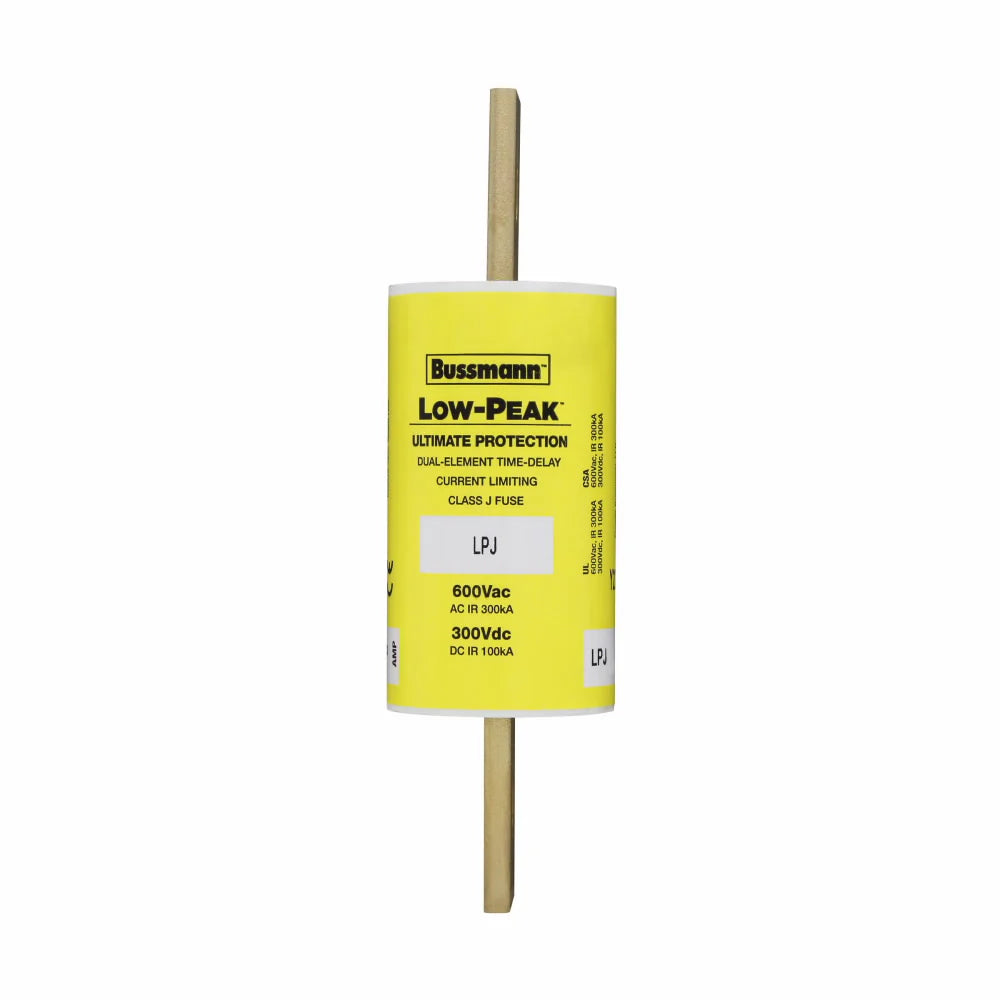

Eaton's Bussmann Low-Peak LPJ-125SP is a class J current limiting time delay fuse, rated for 125 ampere and 600 VAC/300 VDC with an interruption capacity of 300kA at 600VAC and 100kA at 300VDC, encapsulated in a melamine cartridge body measuring 1.63 inches in diameter and 5.75 inches in length. This fuse is designed for reliability and safety, ensuring robust circuit protection.

• Features dual-element design offering precise time delay and excellent current limiting characteristics.
• Non-indicating and non-rejecting type, suitable for a broad range of applications.
• Optimized for high inrush loads, providing essential protection for industrial equipment and electrical components.

Product Highlights

The Bussmann LPJ-125SP ensures exceptional performance in industrial settings, including power panelboards and machinery disconnects. Its long time delay minimizes unnecessary fuse trips, while the current limitation offers advanced protection against short circuit currents, enhancing overall system stability and device safety.

Product Information

Technical Specifications

• Amperage Rating: 125 A
• Voltage Rating: 600 VAC / 300 VDC
• Interrupt Capacity: 300kA at 600VAC, 100kA at 300VDC
• Body Size: 1.63 in Dia x 5.75 in L
• Body Material: Melamine
• Mounting Type: Holder Mount
• Terminal Type: Bolted Blade End
• Standards/Approvals: CE Certified, CSA C22.2, RoHS Compliant, UL Listed
