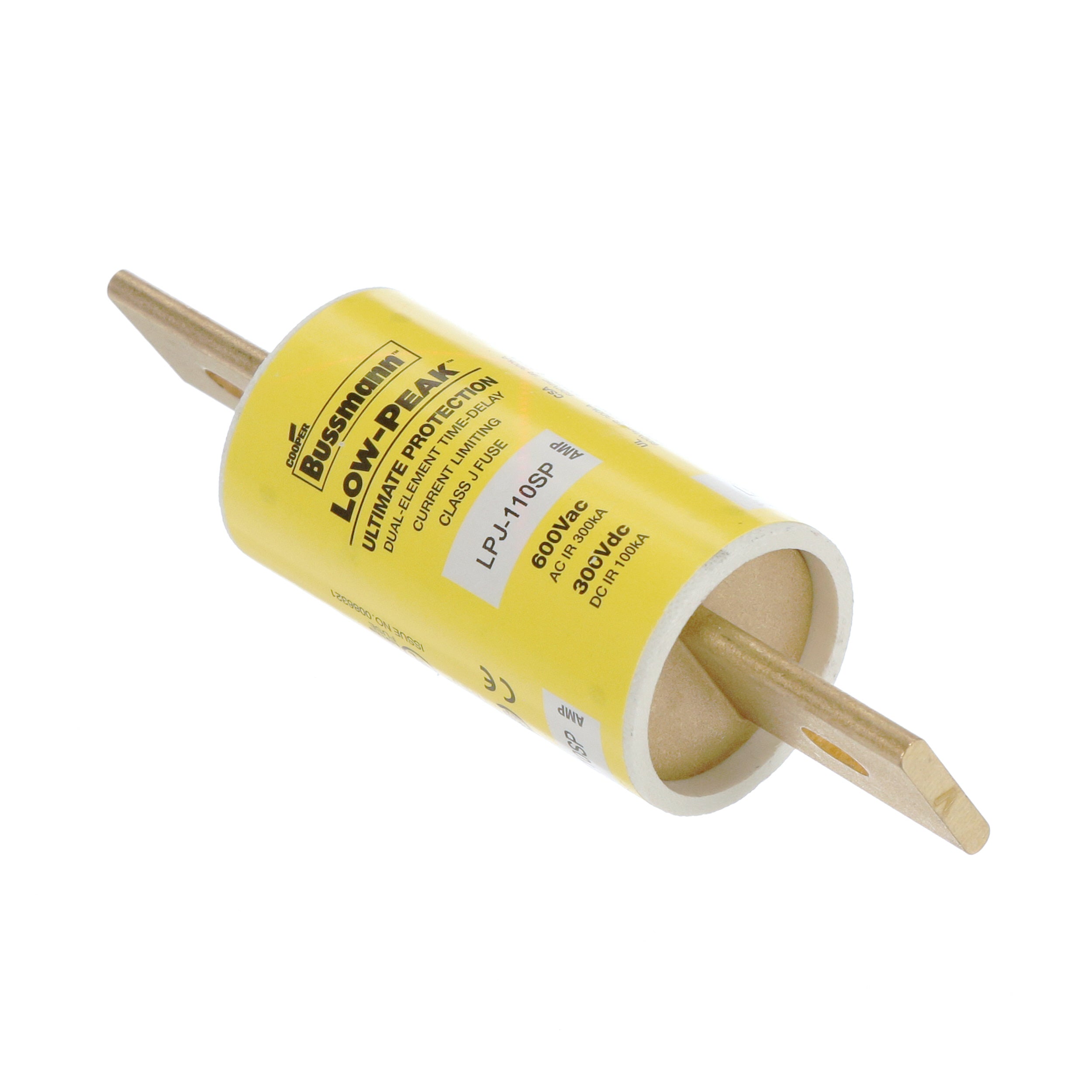

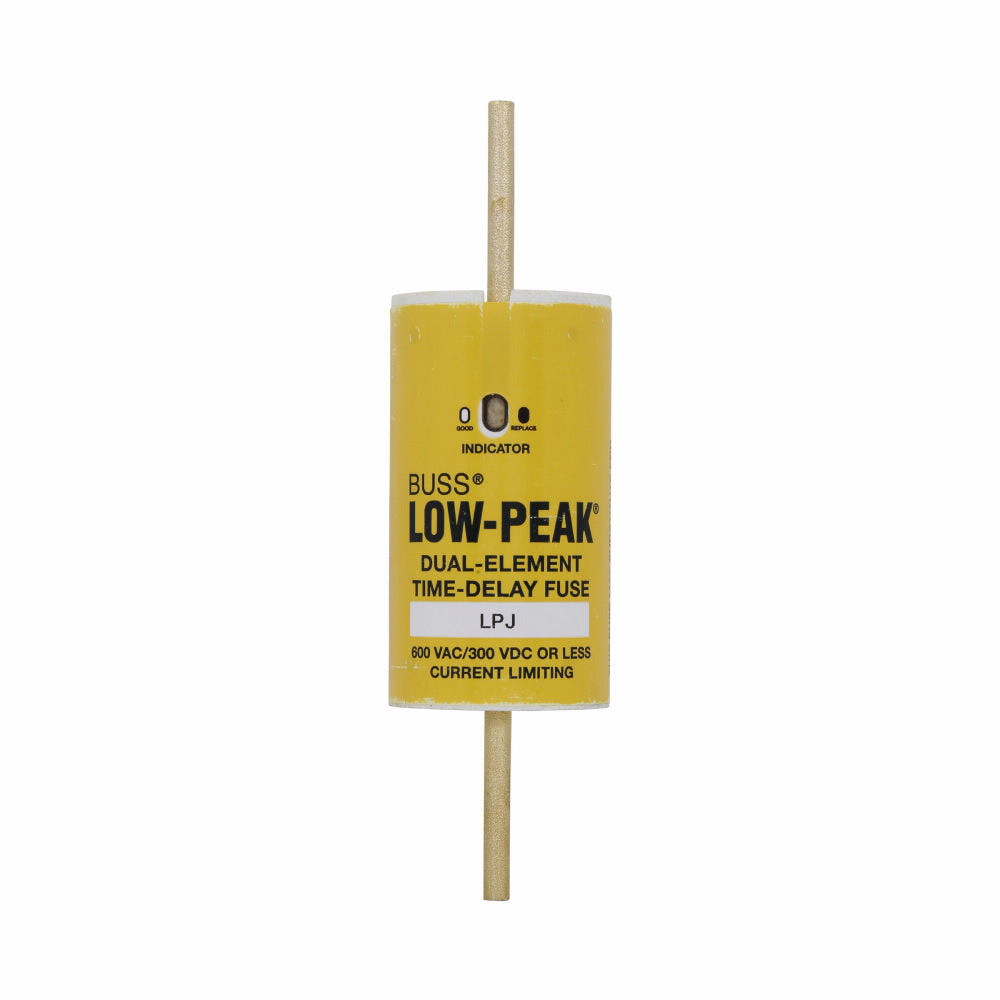

Eaton LPJ-110SPI Bussmann Series LPJ-110SPI 110 Amp Fuse

Product Description

The Eaton LPJ-110SPI Bussmann Series Class J fuse is a time-delay, dual-element, current limiting indicating fuse. This 110 A fuse has an interrupting rating of 300 kA at 600 VAC and 100 kAIC Vdc. It is suitable for industrial facilities, factories, safety systems, and power panelboard applications.

• Time-delay, dual-element fuse minimizes needless fuse openings.
• Current limitation protects downstream components.
• Industry's only UL listed and CSA certified fuse with a 300 kA interrupt rating.

Product Highlights

The Eaton LPJ-110SPI fuse provides time delay for high inrush loads and protects against short circuits. Its space-saving design is ideal for equipment downsizing.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: LPJ-110SPI
• Country of Origin: MX

Technical Specifications

• MPN: LPJ-110SPI
• Amperage: 110 A
• Voltage: 600 VAC, 300 VDC
• Fuse Class: J
• Fuse Type: Time Delay
• Element: Dual Element
• Interrupting Rating: 300 kA at 600 Vac
• Application: Specialized circuits and industrial control
• Body Size: 1.63 in Dia x 5.75 in L
• Body Type: Cartridge
• Indicating Non Indicating: Indicating
• Material: Melamine
• Mounting Type: Holder
• Rejection Non Rejection: Non-Rejection
• Response Time: 10 s at 500%
• Series: LPJ
• Standards/Approvals: CE Certified|CSA C22.2 File No.53787/248.8|RoHS Compliant|UL File No.E4273/E56412 Guide JDDZ/JFHR
• Terminal Type: Bolted Blade End
• Type: Current Limiting Time Delay
• Applications: Branch Circuit Breaker Panelboard Mains, Industrial Control, Machinery Disconnects, Power Panelboards
• Connection Type: Blade
• End Type: Blade,Bolted
• Interrupt Rating: 100 kAIC
• Standard: CSA,RU Listed,RoHS
• Brand: Eaton
• Sub Brand: Low-Peak
• Product UPC: 05171262769
• Diameter: 1.63 Inch
• Product Length/Depth: 5.75 in
• Product Width: 1.5 in
• Product Type: Fuse
• Number of elements: Dual
• Class: Class J
• Connection: Bolted blade end x bolted blade end
• Fuse indicator: Non-indicating With Indicator
• Special Features: Indicating, High in-rush current motor protection
• UNSPSC Code: 39120000
• Current Rating: 110 A
• Primary Type: Single Use Fuses
• Model: LPJ-110SPI
• Country of Origin: MX
• California Prop 65 Warning: N
