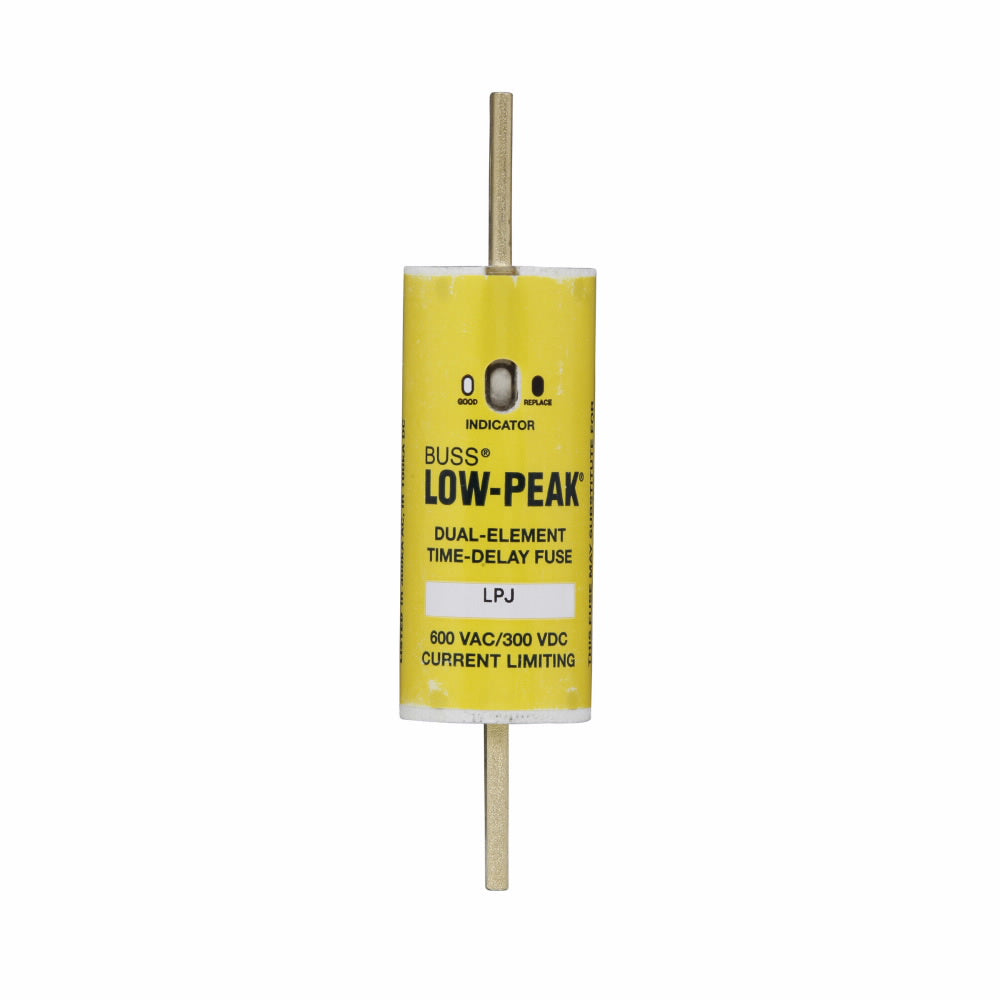

Eaton LPJ-100SPI BUS INDICATING FUSE 100A 600VAC/300VDC

Product Description

The Eaton LPJ-100SPI is a Bussmann Low-Peak fuse designed for current limiting time delay applications. This fuse has a rating of one hundred amps and is suitable for use in systems up to six hundred volts AC and three hundred volts DC. It features a cartridge body type and is designed to handle high inrush loads effectively.

• Long time delay minimizes unnecessary fuse openings.
• Current limiting protects downstream components from short circuit effects.
• Dual element design provides efficiency and lower resistance.

Product Highlights

This fuse is used extensively in industrial facilities, safety systems, and machinery disconnects.

Product Information

Standard Information

• Manufacturer: Eaton
• Manufacturer Part Number: LPJ-100SPI

Technical Specifications

• Amperage Rating: 100 A
• Voltage Rating: 600 VAC/300 VDC
• Class: J
• Response Time: 10 s at 500%
• Body Size: 1.13 in Dia x 4.63 in L
• Body Type: Cartridge
• Element: Dual
• Material: Melamine
