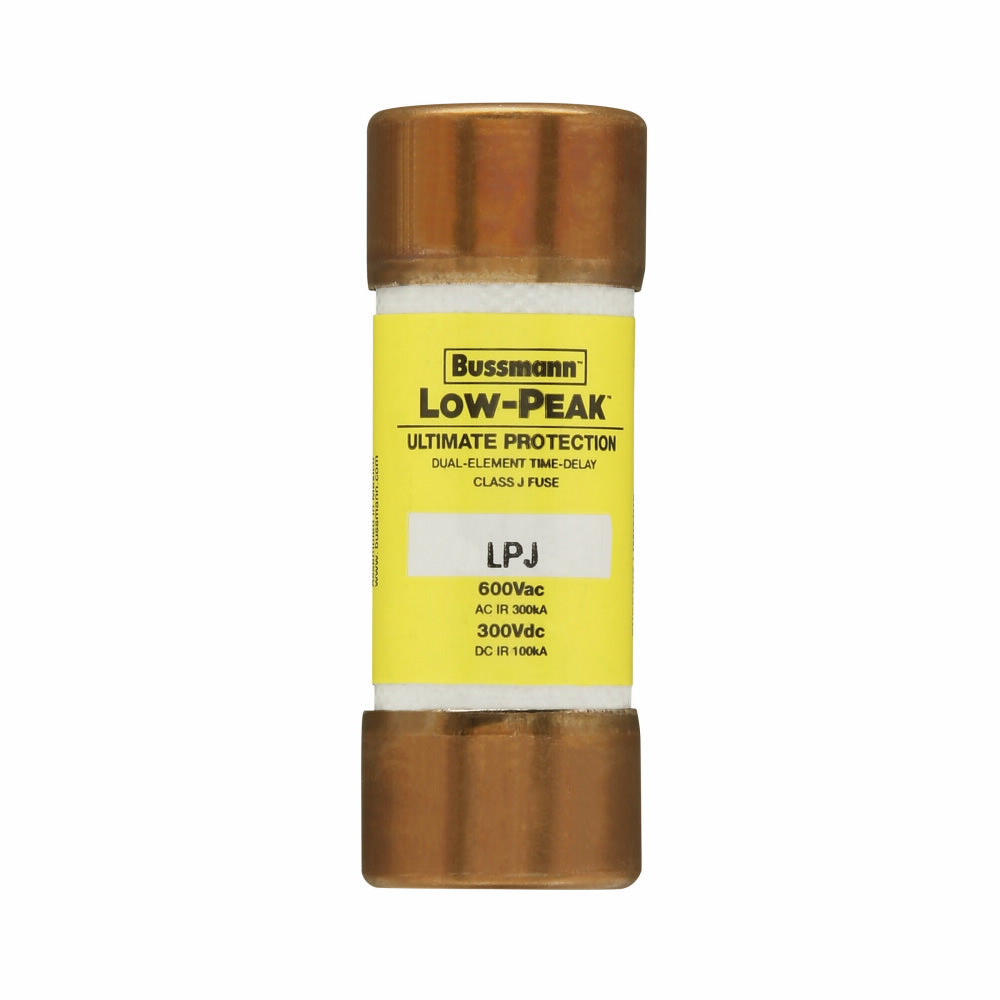

Eaton LPJ-1-6/10SP Bussmann Series LPJ-1-6/10SP Class J Low Peak Fuse

Product Description

The Eaton Bussmann series LPJ-1-6/10SP is a Class J Low Peak Fuse designed for reliable performance in various applications. This fuse operates at a rating of 1.6 Amperes and is ideal for current-limiting and time-delay functions.

• Time delay of ten seconds at five hundred percent of rated current
• Interrupt ratings of one hundred kAIC at DC and three hundred kAIC at AC
• Standard voltage rating of six hundred volts AC and three hundred volts DC

Product Highlights

This fuse is designed for branch circuit breaker panelboards, industrial controls, and machinery disconnects. The dual-element design minimizes unnecessary outages while providing rapid response to fault conditions.

Product Information

Standard Information

• Brand: Eaton
• MPN: LPJ-1-6/10SP

Technical Specifications

• Type: Current Limiting Time Delay
• Class: J
• Voltage Rating: 600 VAC/300 VDC
• Amperage Rating: 1.6 A
• Body Size: 0.81 inches Diameter x 2.25 inches Length
• Material: Melamine
• Response Time: 10 seconds at 500%
• Terminal Type: Ferrule End
