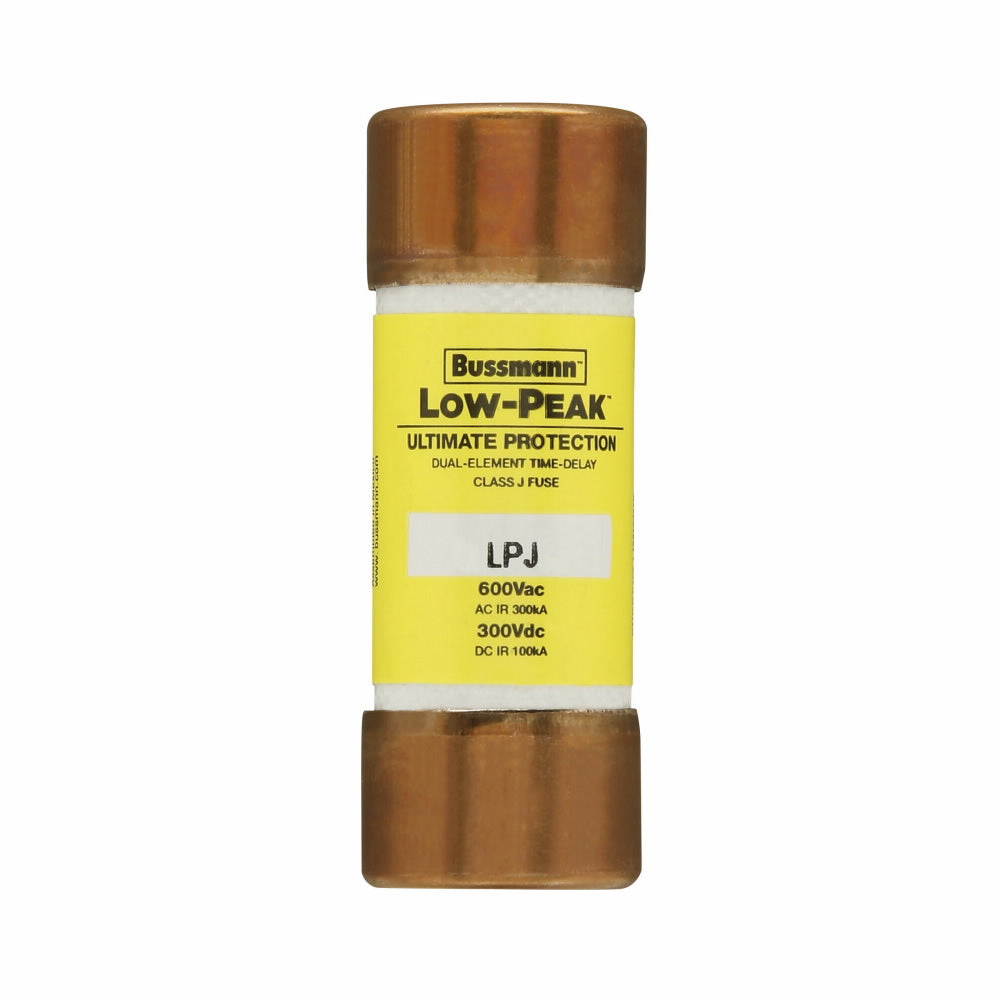

Eaton LPJ-1-1/4SP Bussmann LPJ 600V 1-1/4Amp Dual-Element Time-Delay Class-J Fuse

Product Description

The Eaton LPJ-1-1/4SP is a dual-element time-delay class J fuse designed for reliable circuit protection. With a voltage rating of up to six hundred VAC and a current rating of one and one-fourth amps, this fuse is suitable for various applications including branch circuit panels and industrial controls.

• Current limiting capabilities protect downstream components.
• Time-delay feature allows for handling inrush currents.
• Compact design and cylindrical body for easy installation.

Product Highlights

This fuse provides effective protection against overloads and short circuits, extending the life of electrical systems and minimizing disruptions.

Product Information

Standard Information

• Brand: Eaton
• Manufacturer PN: LPJ-1-1/4SP

Technical Specifications

• Voltage Rating: 600 VAC / 300 VDC
• Amperage Rating: 1.25 A
• Body Size: 0.81 in Diameter x 2.25 in Length
• Type: Current Limiting Time Delay
• Class: J
• Response Time: 10 sec at 500%
• Interrupt Rating: 300 kAIC
• Material: Melamine
