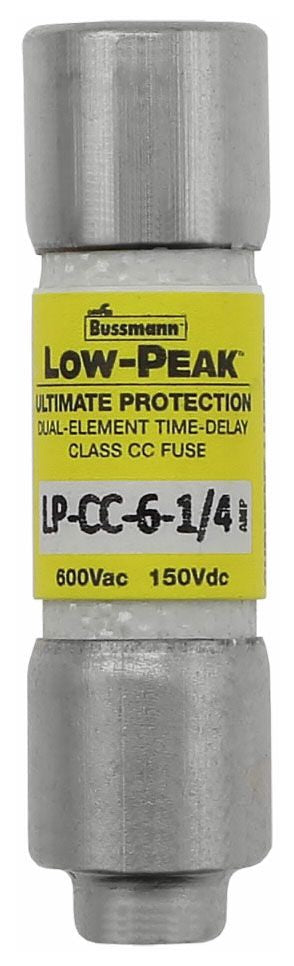

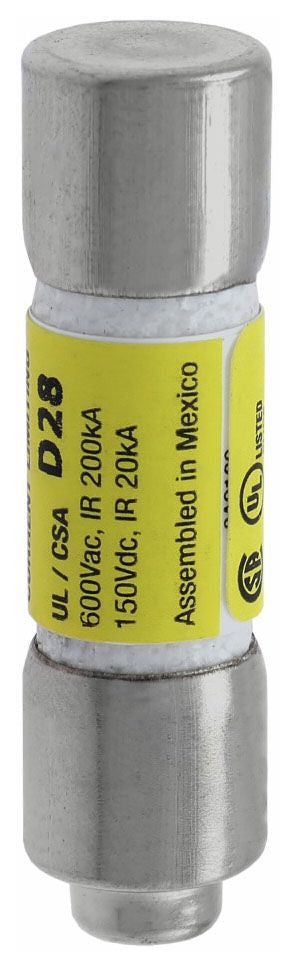

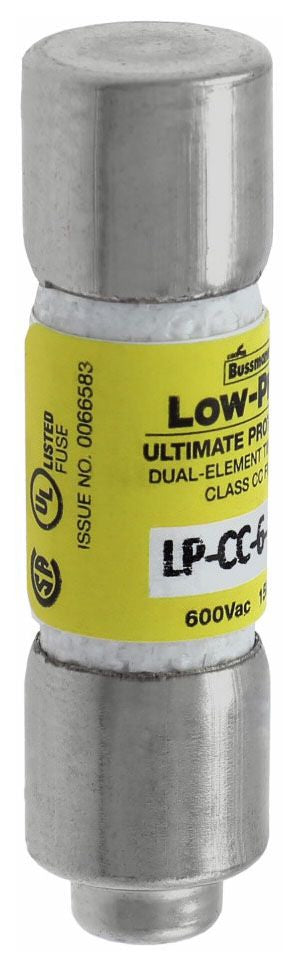

Eaton LP-CC-6-1/4 Bussmann Series Low Peak Time Delay Fuse

Product Description

The Eaton LP-CC-6-1/4 is a current-limiting time delay fuse designed for various applications. It is a part of the Bussmann series, recognized for reliability and performance. This fuse features a 6.25-amp rating and operates at a voltage of 600 volts AC and 150 volts DC.

• Current-limiting and time delay characteristics protect against short circuit currents.
• Ferrule end terminals allow for easy installation in fuse holders.
• Meets UL and CSA safety standards for use in industrial and specialized circuits.

Product Highlights

The LP-CC-6-1/4 fuse is suitable for circuit protection in industrial control systems and offers a space-saving design.

Product Information

Standard Information

• Brand: Eaton
• Manufacturer: Bussmann Mfg.

Technical Specifications

• Fuse Type: Current Limiting Time Delay
• Class: CC
• Voltage Rating: 600 VAC/150 VDC
• Amperage Rating: 6.25 A
• Interrupt Rating: 200 kAIC at 600 VAC, 20 kAIC at 150 VDC
• Body Size: 13/32 inch diameter x 1-1/2 inch length
• Material: Melamine Tube
• Response Time: 12 seconds at 200%
• Terminal Type: Ferrule End
• Standards/Approvals: CE, CSA, UL 248-4
