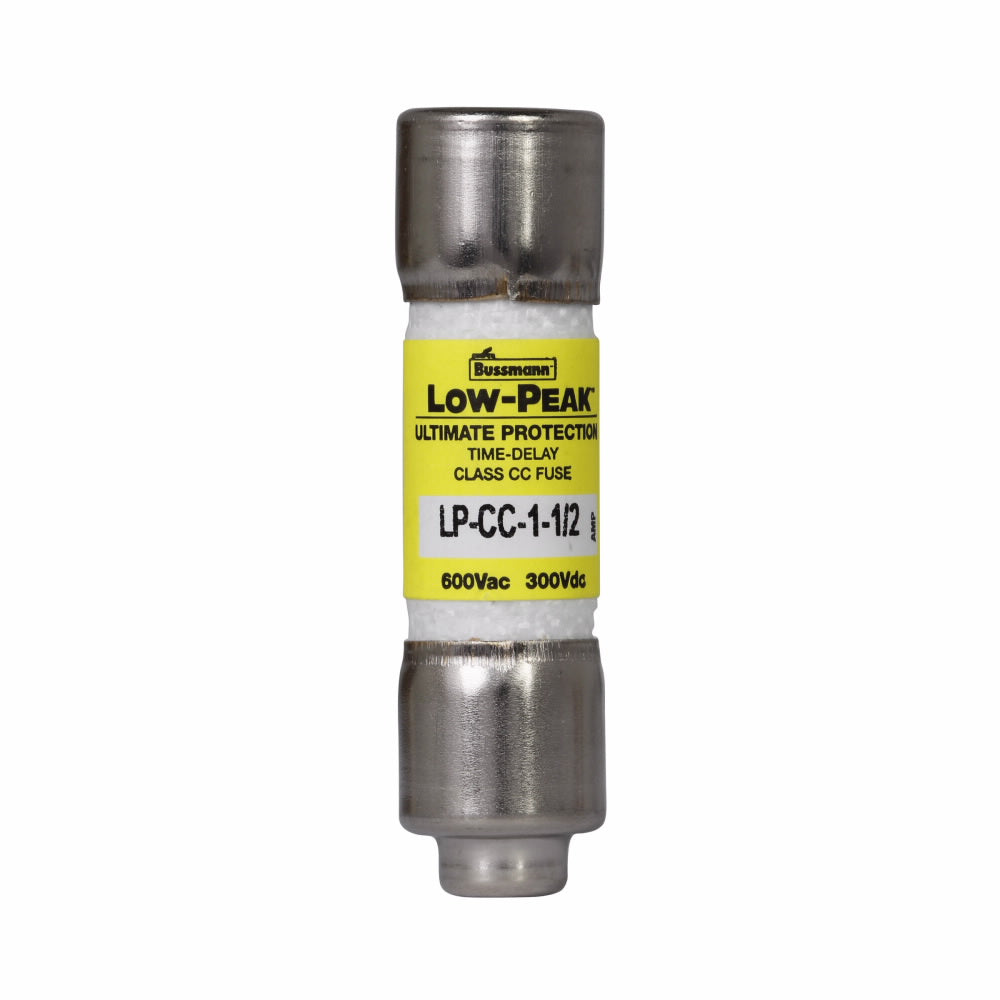

Eaton LP-CC-11/2 BUS FUSE 1-1/2 AMP LOW PEAK CLASS-CC

Product Description

The Eaton LP-CC-11/2 is a current limiting time delay fuse designed for circuit protection. This fuse operates at a rating of 1.5 amps, making it suitable for various applications including motors and electronic devices.

• Operates at 1.5 A with a voltage rating of 600 VAC/300 VDC.
• Features a compact cartridge body size of thirteen thirty-seconds inches in diameter by one and one-half inches in length.
• Designed for dual element performance, providing reliable protection against overloads and short circuits.

Product Highlights

This fuse is crucial for the protection of sensitive electrical components and is designed to reduce unwanted openings due to surge currents.

Product Information

Standard Information

• Brand: Eaton
• Manufacturer Part Number: LP-CC-1-1/2

Technical Specifications

• Amperage Rating: 1.5 A
• Voltage Rating: 600 VAC/300 VDC
• Body Size: 13/32 in Dia x 1-1/2 in L
• Body Type: Cartridge
• Class: cc
• Element: Dual
• Indicating: Non-Indicating
• Material: Melamine Tube
• Mounting Type: Holder
• Response Time: 12 s at 200%
• Standards/Approvals: CE Certified, CSA File No.53787, NEC 110.9, RoHS Compliant, UL 248-4 File No.E4273 Guide JDDZ
• Terminal Type: Ferrule End
• Application: Industrial Facilities, Safety and Security Systems
