Eaton LL58 Crs-H Ll58 1 1/2 Ll Form 8 Cndt Body

Product Description

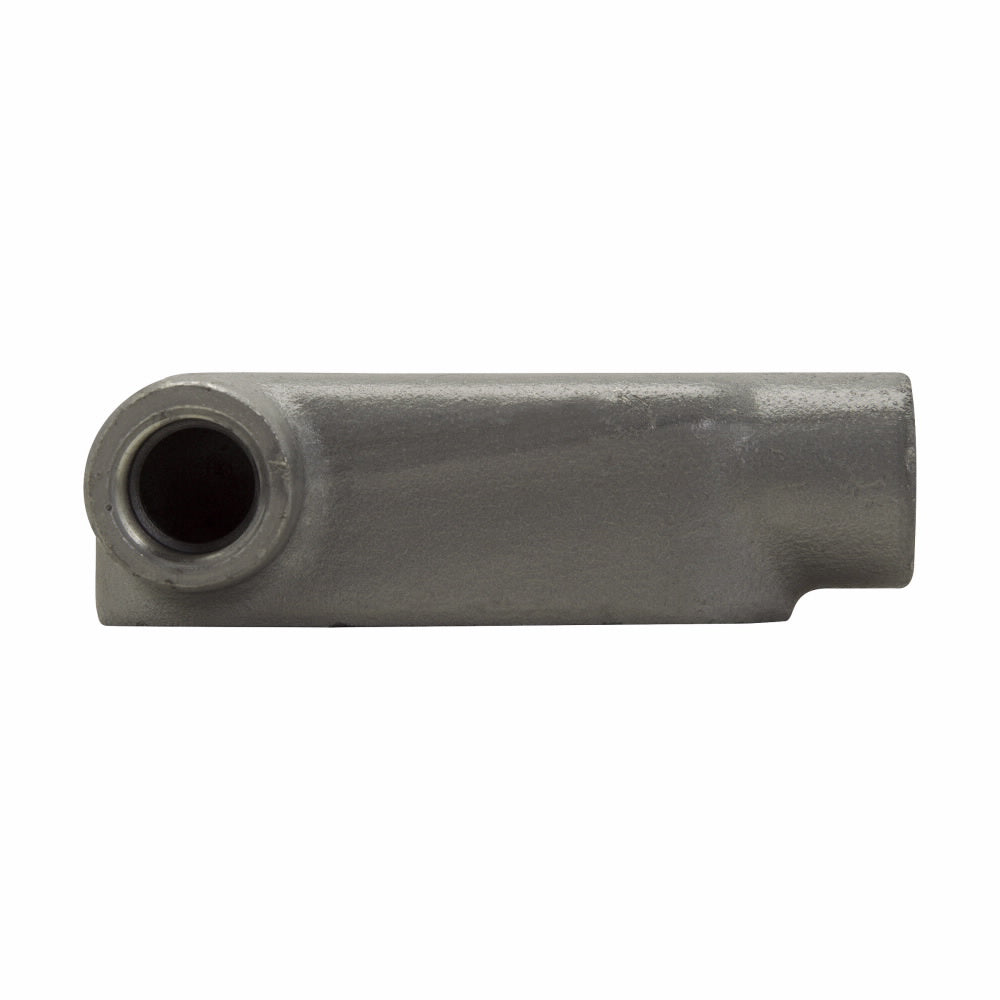

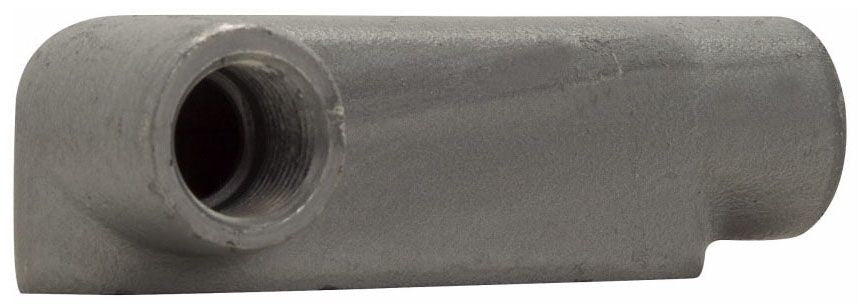

The EATON LL58 Crs-H Ll58 1 1/2 Ll Form 8 Cndt Body is a conduit body with an access opening on the left side and a LL configuration. It is designed for use on rigid conduit with threaded or set screw installation. The body is made of electrogalvanized aluminum acrylic painted Feraloy iron alloy.

• Access Opening Left Side
• Threaded, Set Screw Installation
• Used On Rigid Conduit

Product Highlights

This conduit body features a screw-on cover type and is UL 514B and CSA 22.2 approved. It has two hubs and is compliant with Federal Specification WC-586D.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: LL58
• Country of Origin: USA

Technical Specifications

• Configuration: LL
• Cover Type: Electrogalvanized Aluminum Acrylic Painted Feraloy Iron Alloy, Screw-On
• Hub Location: 90 Deg
• Number of Hubs: 2
• Hub Size: 1-1/2 Inch
• Installation: Threaded, Set Screw
• Material: Electrogalvanized Aluminum Acrylic Painted Feraloy Iron Alloy (Body), Solid Neoprene (Gasket), Stainless Steel (Screw)
• Form Type: Form 8
• Approval: UL 514B, CSA 22.2
• Used On: Rigid Conduit
• Applicable Standard: Federal Specification WC-586D
• Connection Type: Thread
• Finish: Aluminum Acrylic Painted/Electro-Galvanized
• Type: Type LL
• Enclosure Rating: NEMA 3R/12
• Application: Non-Hazardous Location
• Product Length/Depth: 9.13 in
• Product Height: 4 in
• Product Width: 2.78 in
• Area classification: Ordinary/Non-Hazardous Locations
• Shape: LL
• Trade size: 1-1/2"
