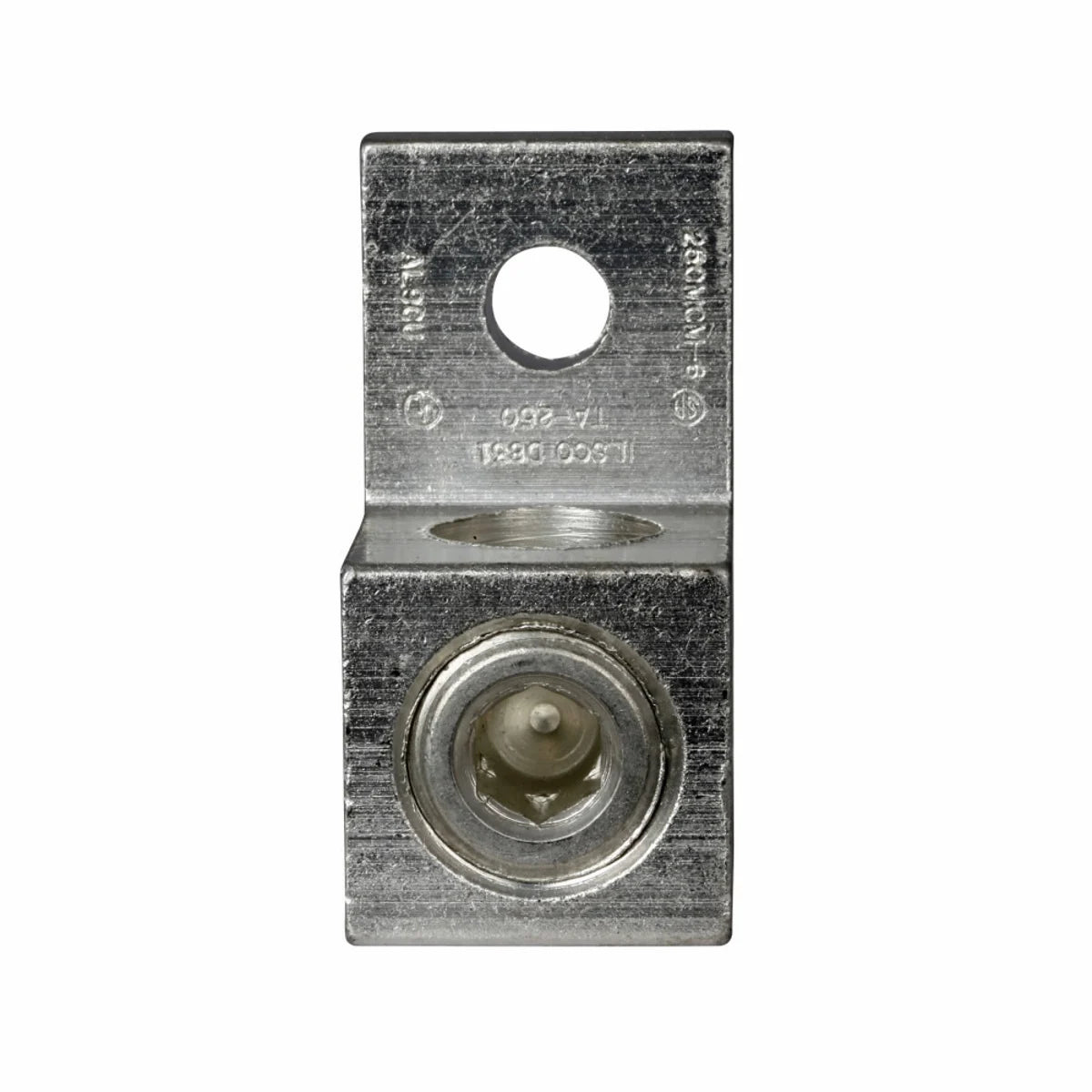

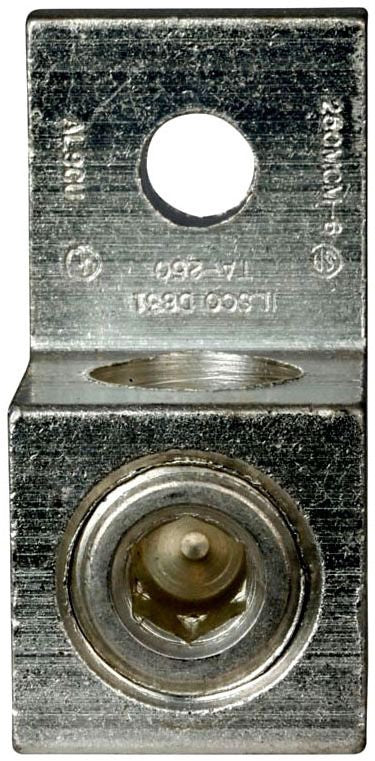

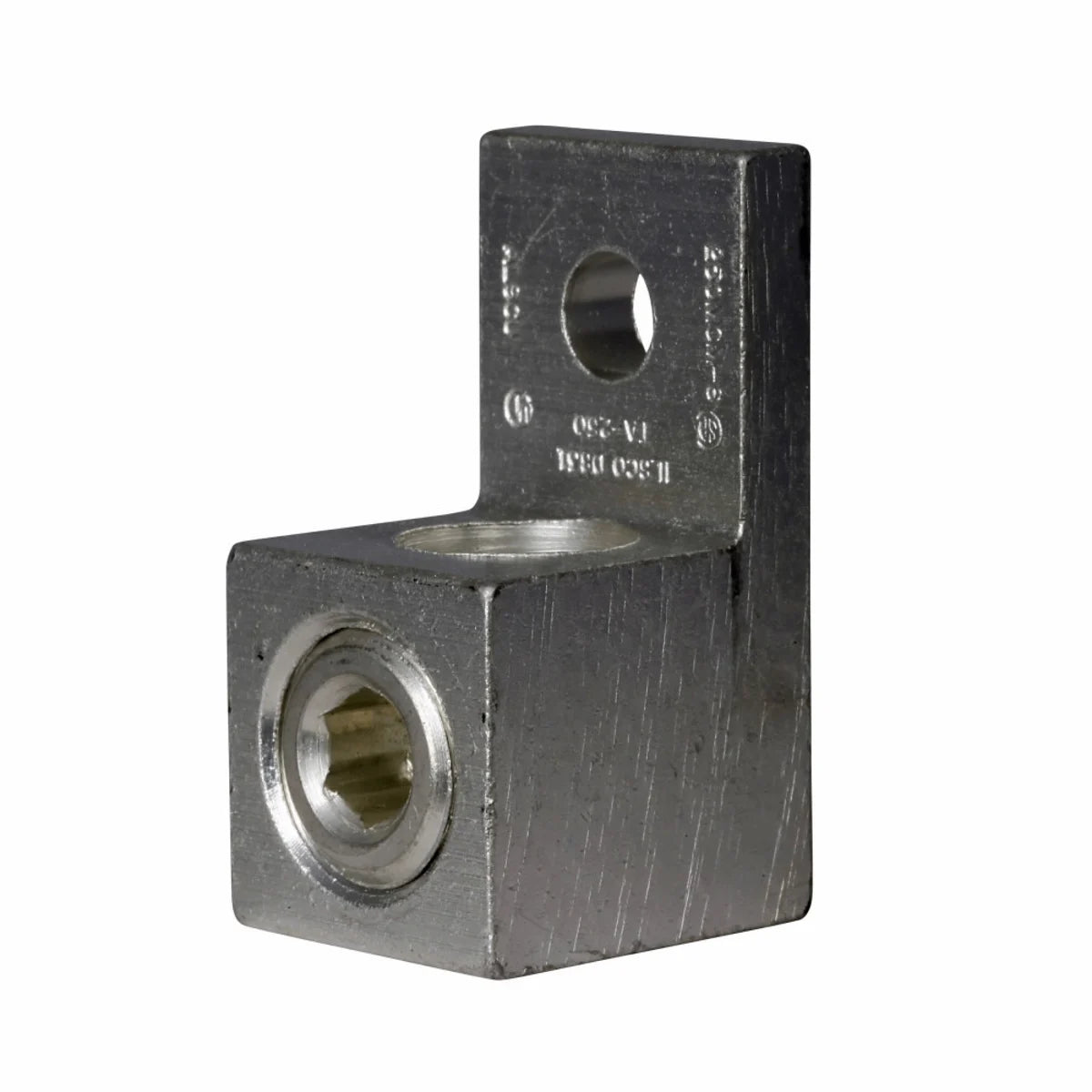

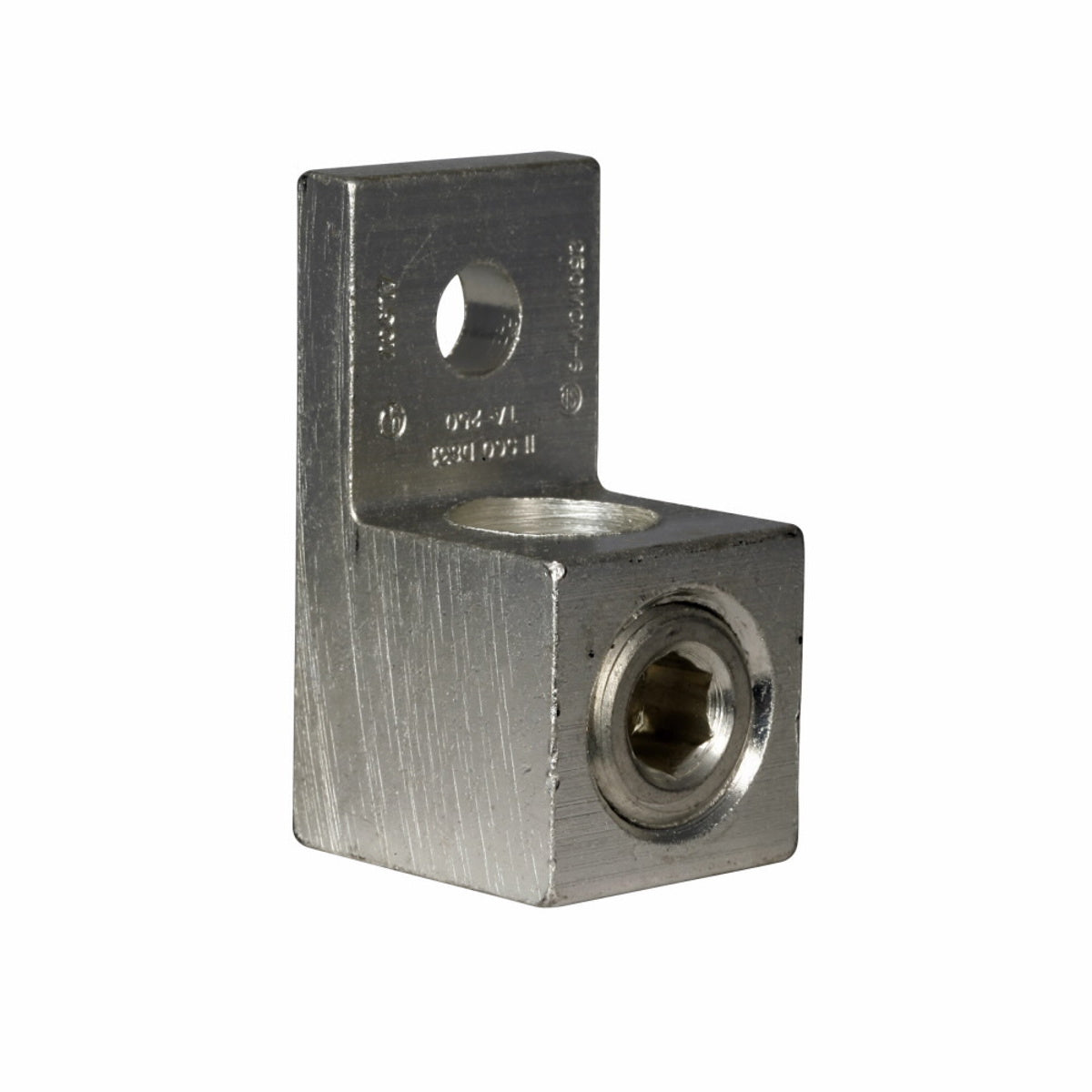

Eaton LKS2 KIT TERM LUG 1-PH DRY 1/4-20X3/4 IN

Product Description

The Eaton LKS2 is a terminal lug kit designed for use with type DT-3 dry transformers, suitable for 50 to 75 kVA single-phase and 75 to 112.5 kVA three-phase applications. This kit efficiently connects the transformer to the power supply, enhancing reliability in electrical systems.

• Compatible with 50 to 75 kVA single-phase and 75 to 112.5 kVA three-phase transformers
• Specifications include 6 AWG to 250 kcmil cable size
• Includes required bolt sizes for installation

Product Highlights

Ideal for professional electricians and engineers working on transformer installations and replacements.

Product Information

Standard Information

• Manufacturer: Eaton
• MPN: LKS2

Technical Specifications

• Dimensions: 5 inches L x 5 inches W x 2 inches H
• Weight: 1.2 lb
• UPC: 786680132308
• Type: Terminal Lug Kit
• Recommended Use: Power Distribution
• Application: Commercial / Institutional Buildings
• Terminal Size: 12 terminals, 6 AWG to 250 kcmil
• Bolts: (8) 1/4 Inch-20 TPI x 3/4 Inch L and (8) 1/4 Inch-20 TPI x 1-3/4 Inch L
