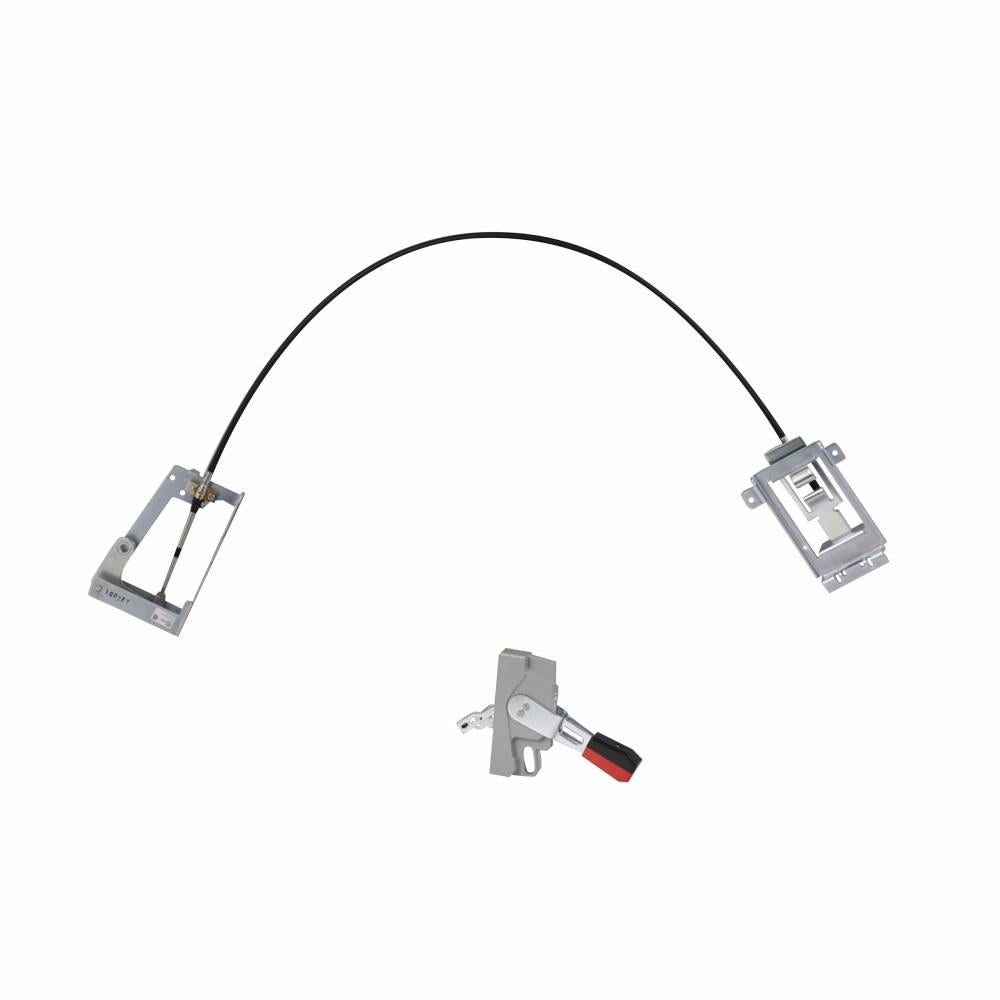

Eaton LHMFS04 Handle Mechanism

Product Description

The EATON LHMFS04 handle mechanism is designed for circuit protection needs across the globe. It is compatible with G Series LG-Frame Molded Case Circuit Breakers. The flex shaft handle can be remotely mounted and accepts up to three padlock shackles. It requires only minor field adjustments on installation.

• Flex shaft handle can be remotely mounted from breaker
• The flex shaft is an extra heavy duty mechanism for use with various size enclosures
• The flex shaft handle will accept up to three padlock shackles, each with a maximum 3/8 in Dia

Product Highlights

The EATON LHMFS04 handle mechanism offers user-friendly accessories and high-performance interruption ratings. It provides a flexible shaft for remote mounting and accepts multiple padlock shackles.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: LHMFS04
• Country of Origin: USA

Technical Specifications

• Shaft Length: 4 ft
• NEMA Rating: NEMA 1, NEMA 12, NEMA 3R
• Handle/Operation: Rotary/Variable Depth Handle
• Handle Mounting Position: Door
• Suitable For Use With: G Series LG-Frame Molded Case Circuit Breaker
• Handle To Device Connection: Flexible Shaft
• Type: Flex Shaft
• Series: G Series
• Operator Type: Flange
• Net Weight: 7.2 lbs
