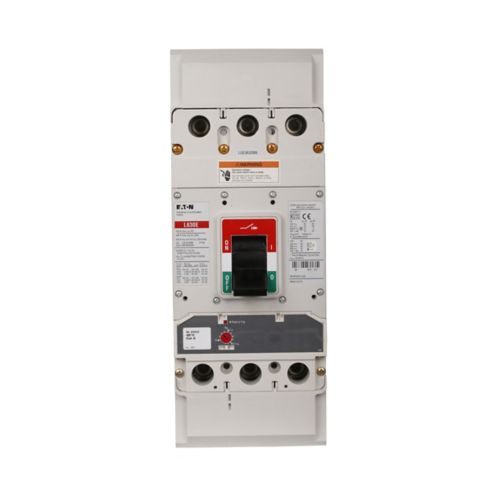

Eaton LGE3400FAG Series G Molded Case Circuit Breaker 400A

Product Description

The Eaton LGE3400FAG Series G molded case circuit breaker is an LG-frame, three-pole breaker with a fixed thermal, adjustable magnetic trip and is 80% rated. Rated at 400 A, it has interrupt ratings of 65 kAIC at 240 Vac, 35 kAIC at 480 Vac, and 18 kAIC at 600 Vac. It is suitable for motor drive and control, industrial, defense, military, and aerospace applications.

• Fixed thermal, adjustable magnetic trip
• Interrupt rating: 65 kAIC at 240 Vac, 35 kAIC at 480 Vac, 18 kAIC at 600 Vac
• Suitable for a range of applications

Product Highlights

The Eaton Series G circuit breaker is a reliable solution for circuit protection in various applications.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: LGE3400FAG

Technical Specifications

• Product Name: Eaton Series G complete molded case circuit breaker
• Catalog Number: LGE3400FAG
• UPC: 782116142408
• Product Length/Depth: 4.09 in
• Product Height: 5.48 in
• Product Width: 5.48 in
• Compliances: CE Marked
• Certifications: UL Listed IEC Rated CSA Certified
• Catalog Notes: LG breaker is HACR rated
• Product Type: Molded case circuit breaker
• Amperage Rating: 400 A
• Trip Type: T185
• Circuit breaker type: LG
• Circuit breaker frame type: Complete breaker
• Rating: 80% rated
• Series: Series G
• Terminals: Line and load
• Frame: LG
• Frequency rating: 50 to 60 Hz
• Mounting hardware: Metric
• Interrupt rating: 35 kAIC at 480 Vac 18 kAIC at 600 Vac 65 kAIC at 240 Vac
• Number of poles: Three-pole
• Type: Complete breaker
• Product Range: G Series
• Current Rating: 400A
• No. of Poles: 3 Pole
• Voltage Rating VDC: 250V
• Voltage Rating VAC: 600V
• Circuit Breaker Mounting: DIN Rail, Panel
