Product Description

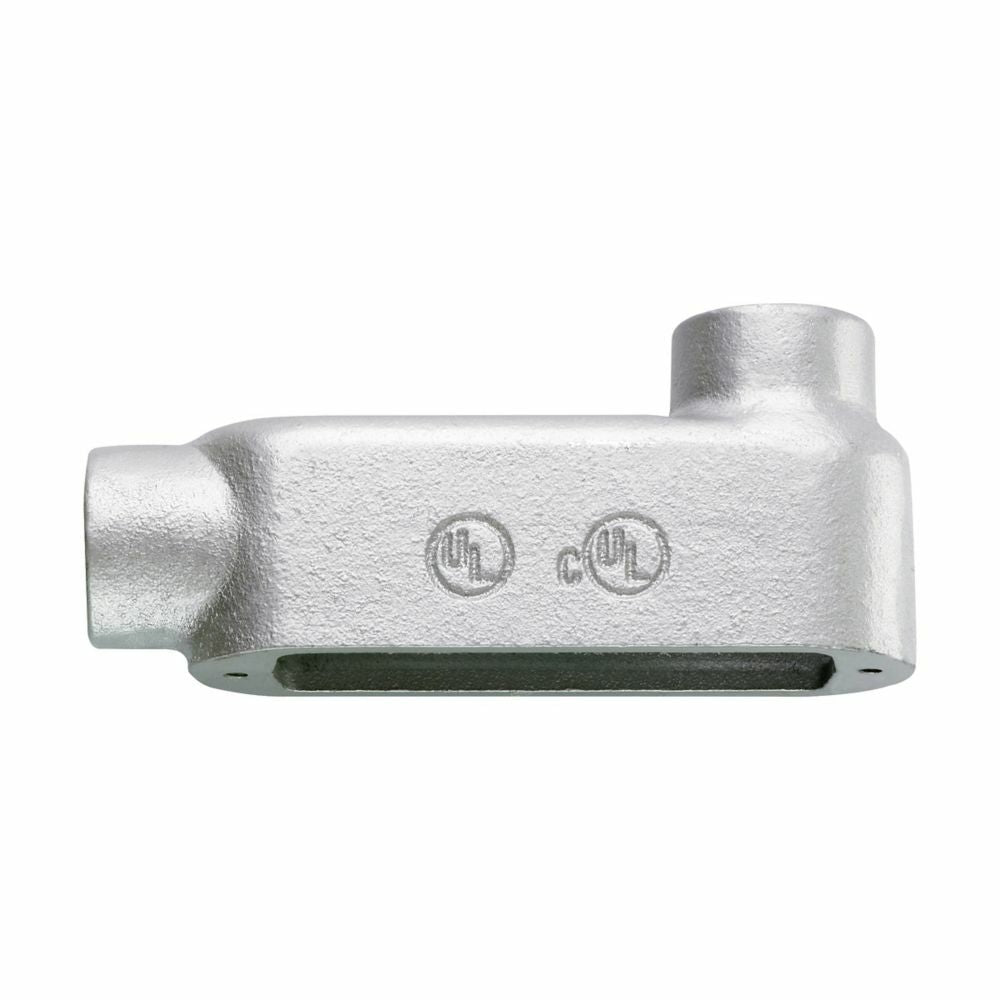

The Eaton LB150M is a conduit outlet body designed for use in electrical systems. It features a malleable iron construction that makes it suitable for both commercial and industrial applications. The conduit outlet body includes built-in rollers to assist with wire pulling, while its design supports making splices and taps in conductors.
- Material: Malleable iron
- Hub Size: 1-1/2 inches
- Form: Type LB with a capacity of 35.3 cubic inches
Product Highlights
This conduit outlet body is ideal for threaded rigid and intermediate metal conduit systems. It is compatible with various applications that require access to conductors, including maintenance tasks and future changes.
Product Information
Standard Information
-
Brand: Eaton Crouse-Hinds
-
Manufacturer Part Number: LB150M
Technical Specifications
-
Application: For rigid and IMC conduit, providing pull outlets for conductors
-
Connection Type: Threaded
-
Finish: Electro-galvanized with aluminum acrylic paint
-
Dimensions: 8.12 inches length, 2.83 inches width, 2.6 inches height
-
Number of Hubs: 2
-
Standards/Approvals: UL 514B, CSA C22.2 No. 18
