Eaton LB100M Condulet Form 5 Conduit Outlet Body 1

Product Description

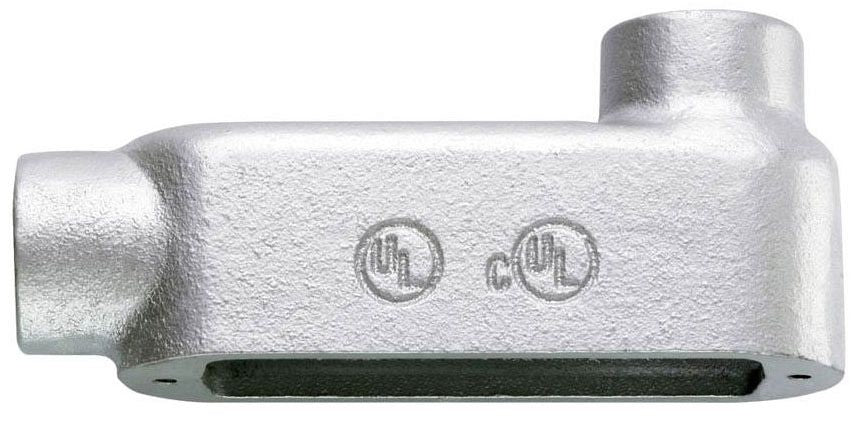

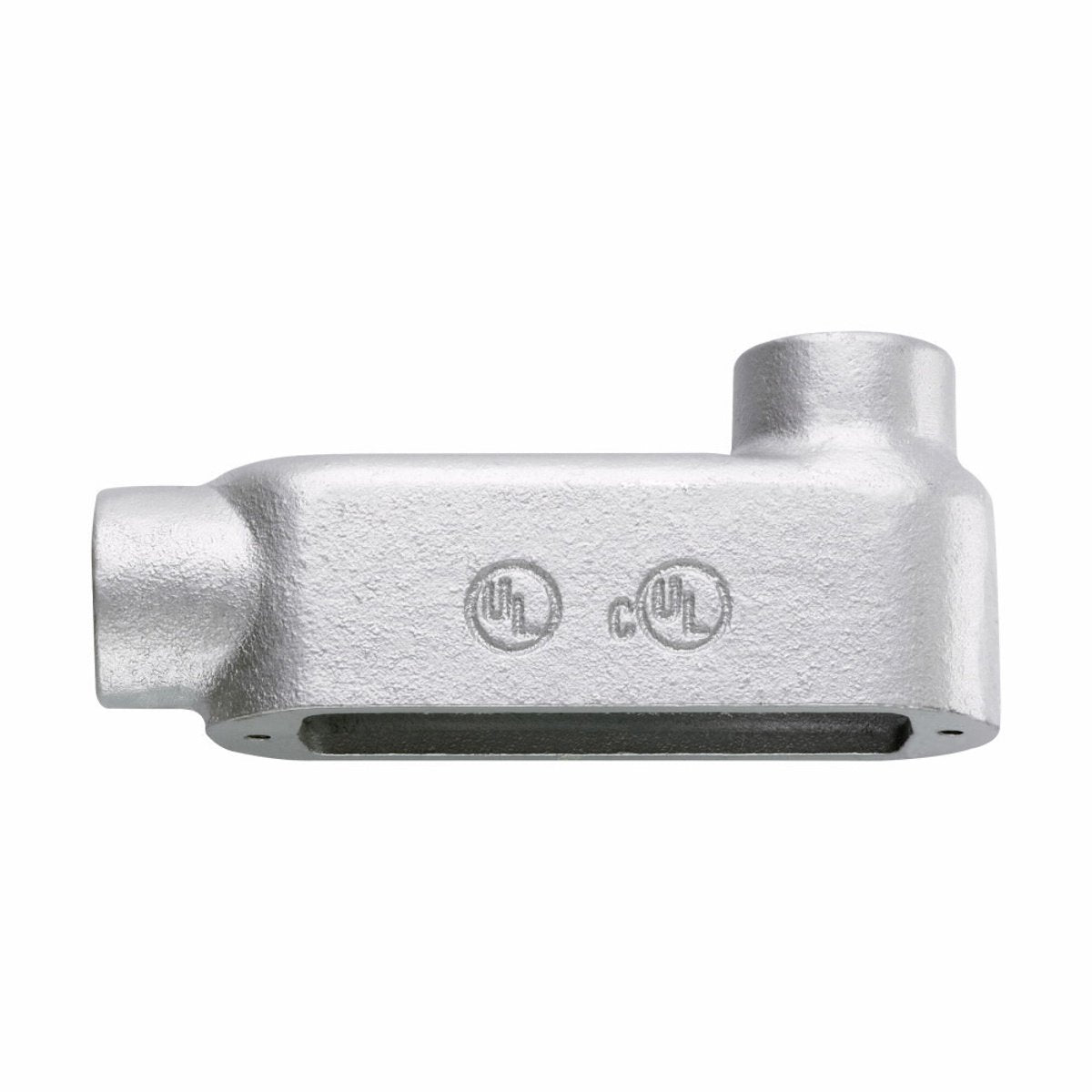

Eaton LB100M is a conduit outlet body designed for use in rigid conduit systems. This Form 5 model is made of malleable iron and features a one-inch hub. It serves multiple functions including acting as a pull outlet for conductors and providing access for maintenance.

• Malleable iron construction for durability
• Interchangeable with Appleton Form 35 conduit bodies
• Available with a hot dip galvanized finish for corrosion protection

Product Highlights

This product is ideal for commercial and institutional buildings. It allows for efficient access to conductors and makes 90-degree bends in conduit runs smooth.

Product Information

Standard Information

• Catalog Number: LB100M
• Brand: Eaton Crouse-Hinds

Technical Specifications

• Material: Malleable Iron
• Hub Size: 1 inch
• Form Type: Form 5
• Length: 6.20 inches
• Width: 2.65 inches
• Height: 1.80 inches
• Application: Rigid/IMC Conduit
• Finish: Electrogalvanized with Aluminum Acrylic Painted
• Standards: UL 514B, cUL to CSA C22.2 No. 18
