Eaton L520PW Plug WT 20A 125V 2P3W Lkg

Product Description

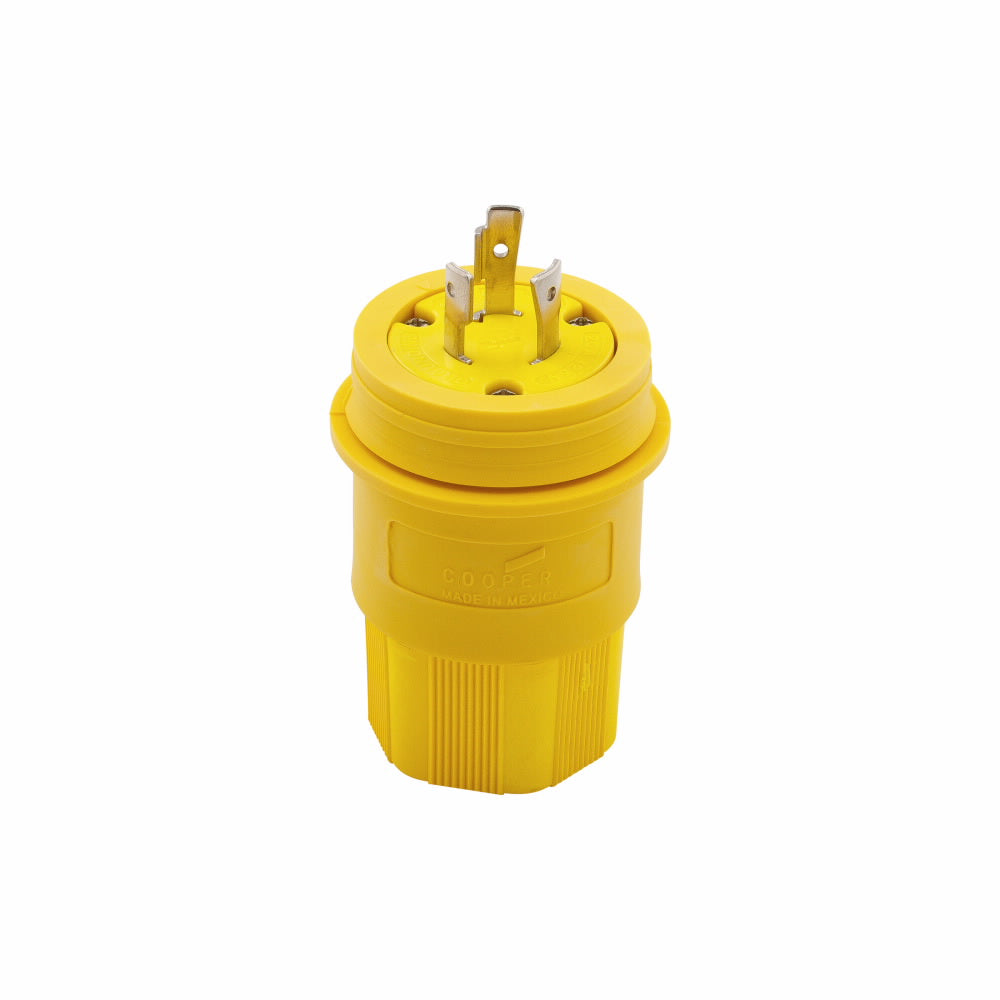

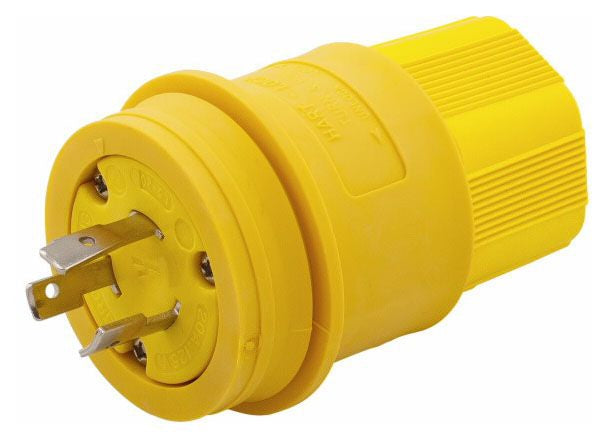

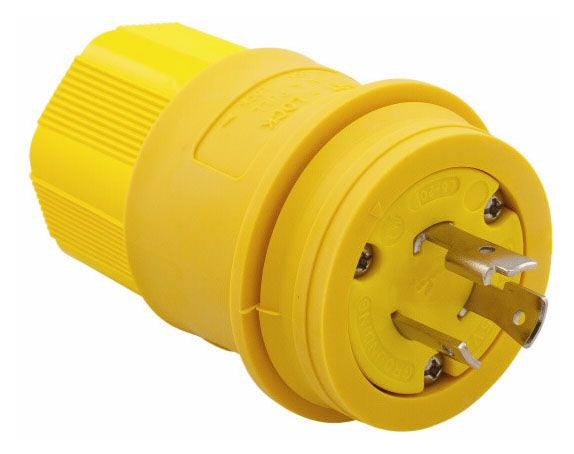

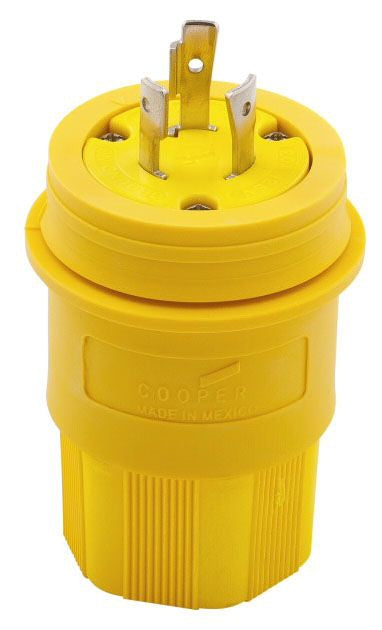

The EATON L520PW is an Arrow Hart Hart-Lock watertight locking plug. Rated at 125 VAC and 20 A, this industrial grade plug features a 2-pole, 3-wire configuration and NEMA L5-20 rating. Constructed from Santoprene TPE, it accommodates cord diameters from 0.36 to 0.84 inches and supports wire sizes from 18 to 10 AWG.

• Accommodates 18 to 10 AWG wire
• Watertight locking
• Industrial grade

Product Highlights

Watertight locking plug designed for industrial applications, ensuring secure and reliable power connections in demanding environments.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: L520PW
• Country of Origin: MEX

Technical Specifications

• Amperage Rating: 20 A
• Application: Elastomeric Devices Applications
• Color: Yellow
• Cord Diameter: 0.36 to 0.84 in
• Grade: Industrial
• Manufacturer Part Number: L520PW
• Material: Santoprene�� TPE
• NEMA Rating: NEMA L5-20
• Number of Poles: 2
• Number of Wires: 3
• Standards/Approvals: cULus Listed|NOM 426 Certified
• Temperature Rating: -40 to 75 deg C
• Terminal Type: Screw
• Type: Watertight
• Voltage Rating: 125 VAC
• Wiring Type: Back
• Wire Size: 18 to 10 AWG
• Enclosure Rating: IP67
• Compliances: RoHS Compliant
• Certifications: cULus Listed NOM
• Product Type: Watertight
• Degree of protection: IP67
• NEMA configuration: L5-20P
• Torque rating: 14-16 lbf-inch
• Environmental resistance: NEMA 6P NEMA 4 NEMA 6 IP67 NEMA 4X
• Allowable wire size: #18-10 AWG
• Wiring method: Back
• Contact material: Nickel plated brass
• Design type: Watertight locking plug
• Device grade: Extra heavy-duty industrial specification grade
• Face/body material: Nylon
• Special features: Watertight
• Current Rating (Amps): 20A
• Number of Positions: 3
• Mounting Type: Free Hanging (In-Line)
• Termination: Screw
• Features: Cord Grip
• Material Flammability Rating: UL94 V-2
• Ingress Protection: IP67 - Dust Tight, Waterproof
• Approval Agency: cULus, NOM
• Product Series: Complex Environment
• Family Series: Eaton Plugs & Receptacles, Complex Environment Series
• Phase: 1
• Body Type: Straight
• Connection Type: Plug
• Isolated Ground: No
• Approvals: UL
• Applications: ELASTOMERIC PRODUCTS
• Brand: Cooper Electric
• Sub Brand: Eaton Wiring Devices
• 12-Digit UPC: 040893641744
