Product Description

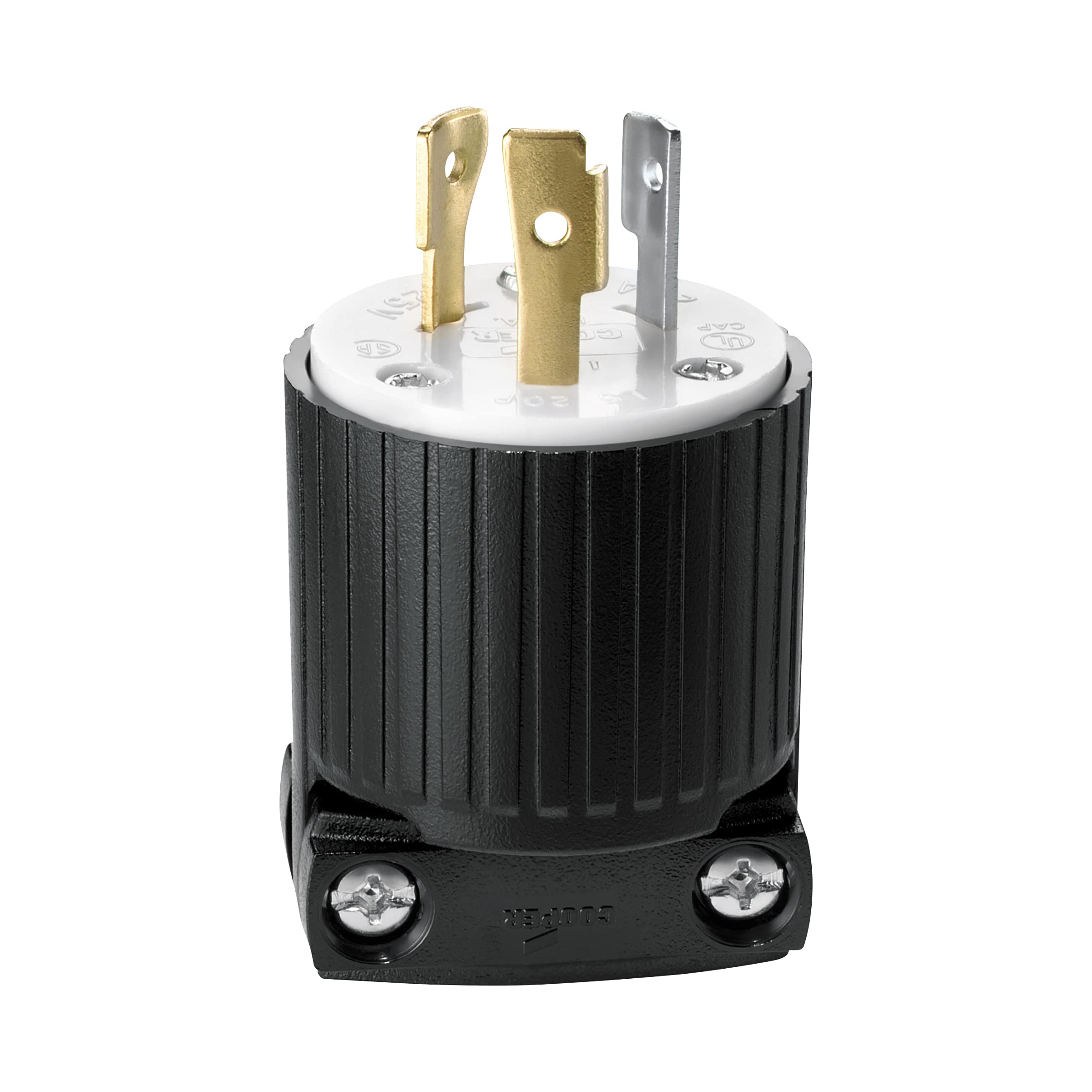

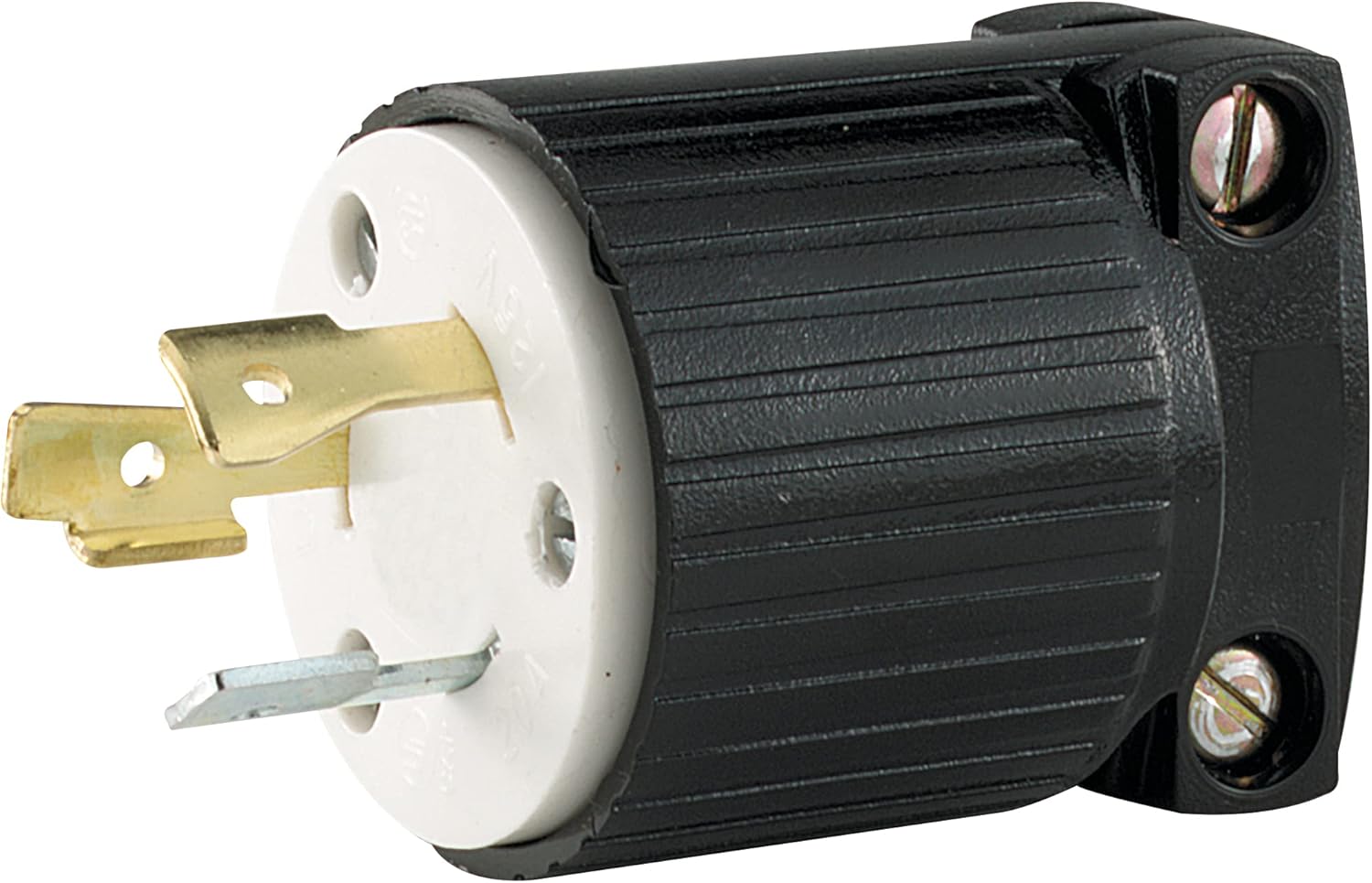

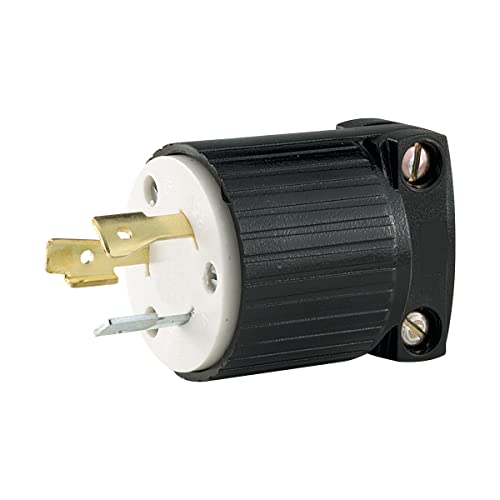

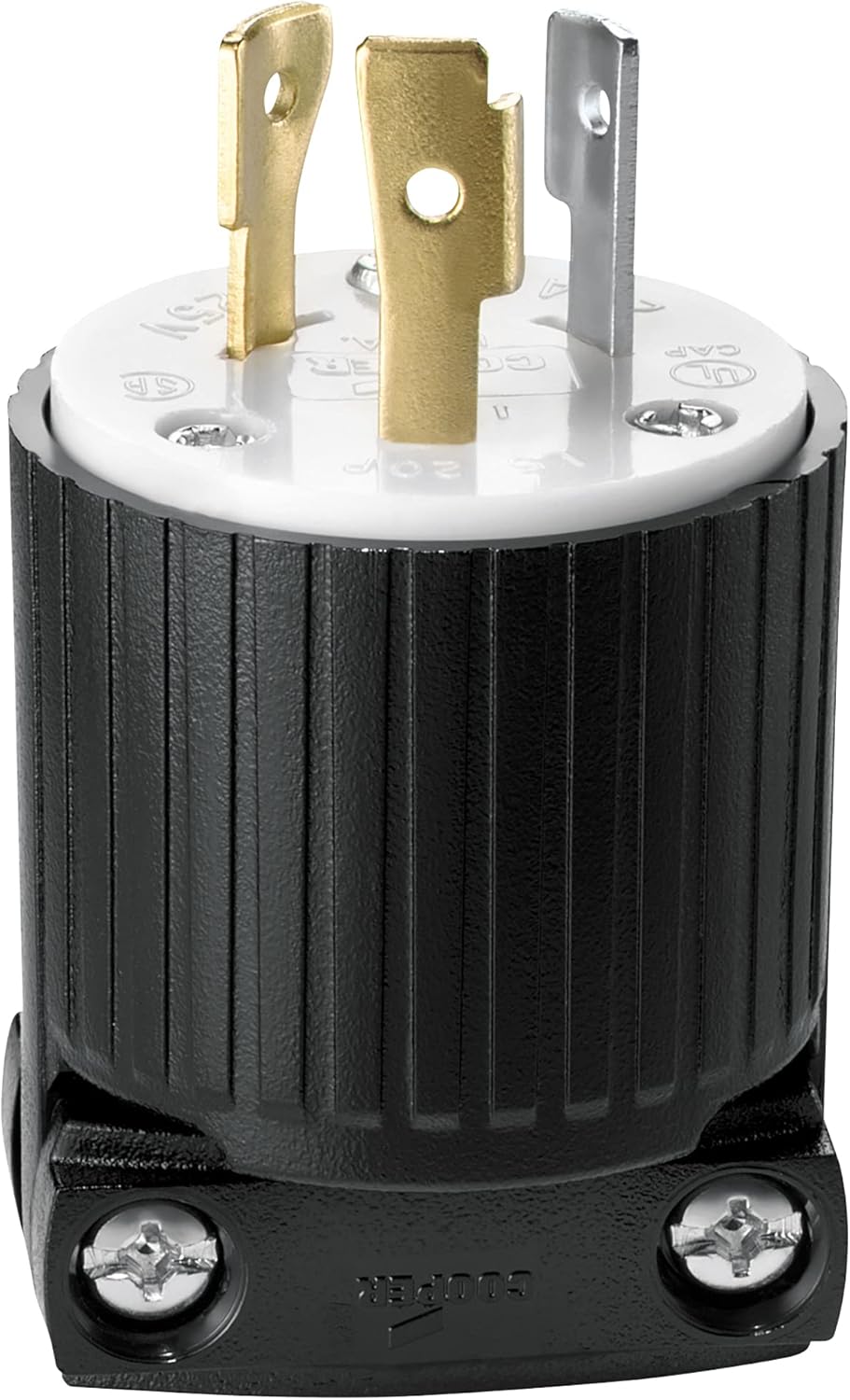

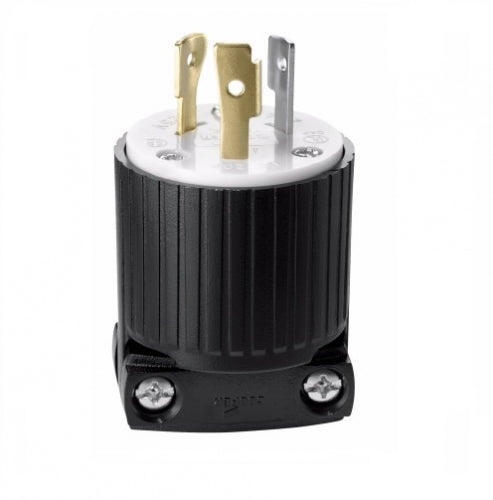

The Eaton L520P locking electrical plug operates at 125 V and 20 A. This 2-pole, 3-wire plug features crimp connector type and NEMA specification compliance. It is constructed from plastic and designed for industrial applications, ensuring reliable performance in demanding environments.
- Thermoplastic construction for durability
- External cable clamp provides firm strain relief
- Back wire terminal clamps for secure wiring
Product Highlights
This Eaton locking electrical plug is ideal for industrial applications requiring a secure and reliable connection.
Product Information
Standard Information
-
Brand: EATON
-
Manufacturer Part Number: L520P
-
Country of Origin: United States
Technical Specifications
-
Voltage: 125 V
-
Amperage: 20 A
-
Material: Plastic
-
Number of wires: 3
-
Connector Type: Crimp
-
Specification Met: NEMA
-
Batteries Included?: No
-
Batteries Required?: No
-
Poles: 2 P
-
Cord Diameter: 0.25-0.69 in (6.4 mm-17.5 mm)
-
Application: Industrial
-
Operating Temperature: -20 to 60 °C (-4 to 140 °F)
-
Allowable wire size: #16-12 AWG
-
NEMA configuration: L5-20
-
Torque rating: 15 lbf-inch
-
Design type: Standard locking plug
-
Face/body material: Thermoplastic
-
Product Length/Depth: 3.13 in
-
Product Height: 1.81 in
-
Product Width: 1.79 in
-
Compliances: RoHS Compliant
-
Certifications: CSA certified, UL Listed, NOM
-
Product Type: Standard locking
-
Special features: Severe duty locking connector
-
Type: Locking plug
-
Contact material: Brass
-
Device grade: Commercial
-
Wiring method: Back
-
Number of poles: Two-pole
-
Maximum Amperage: 20 Amp
-
Maximum Voltage: 125V
