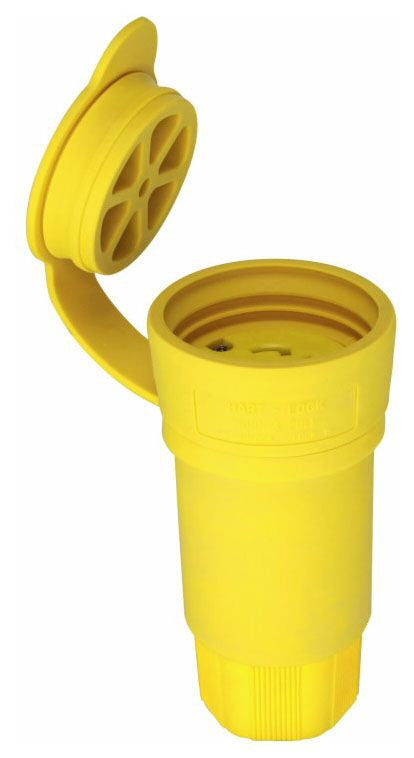

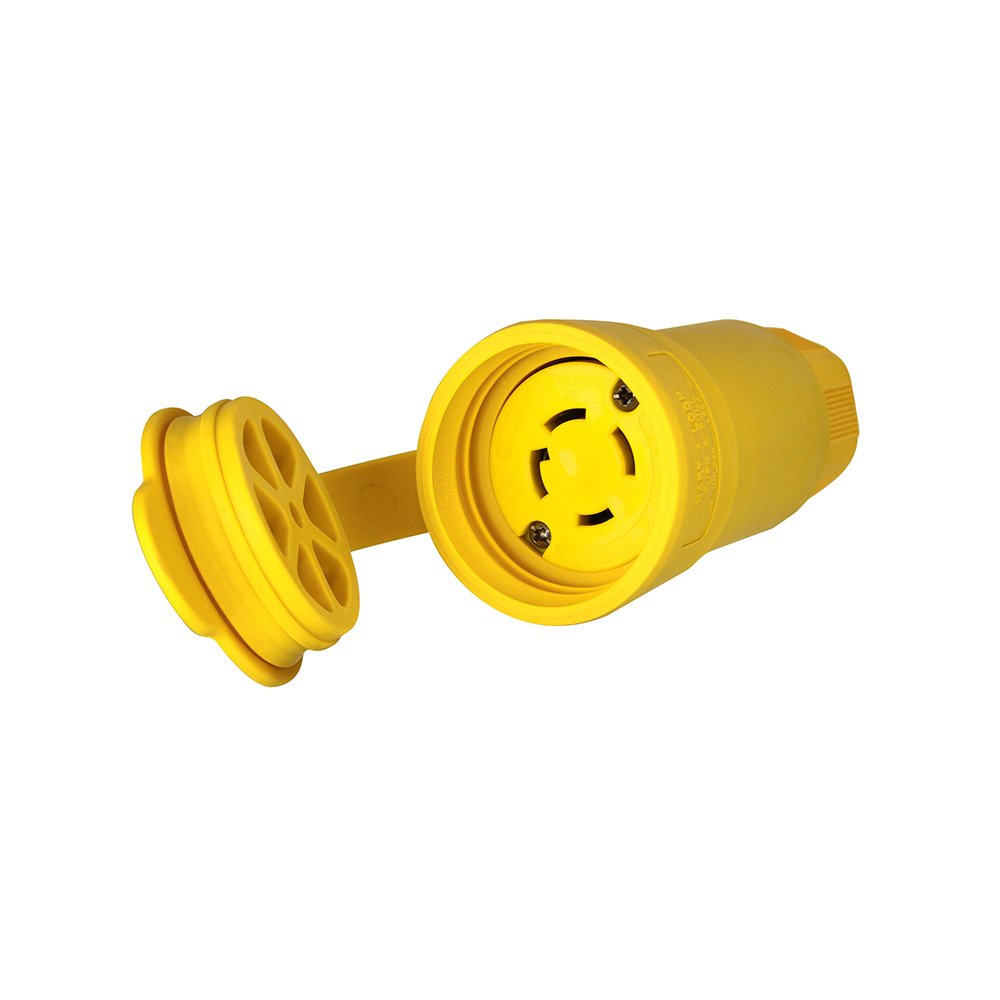

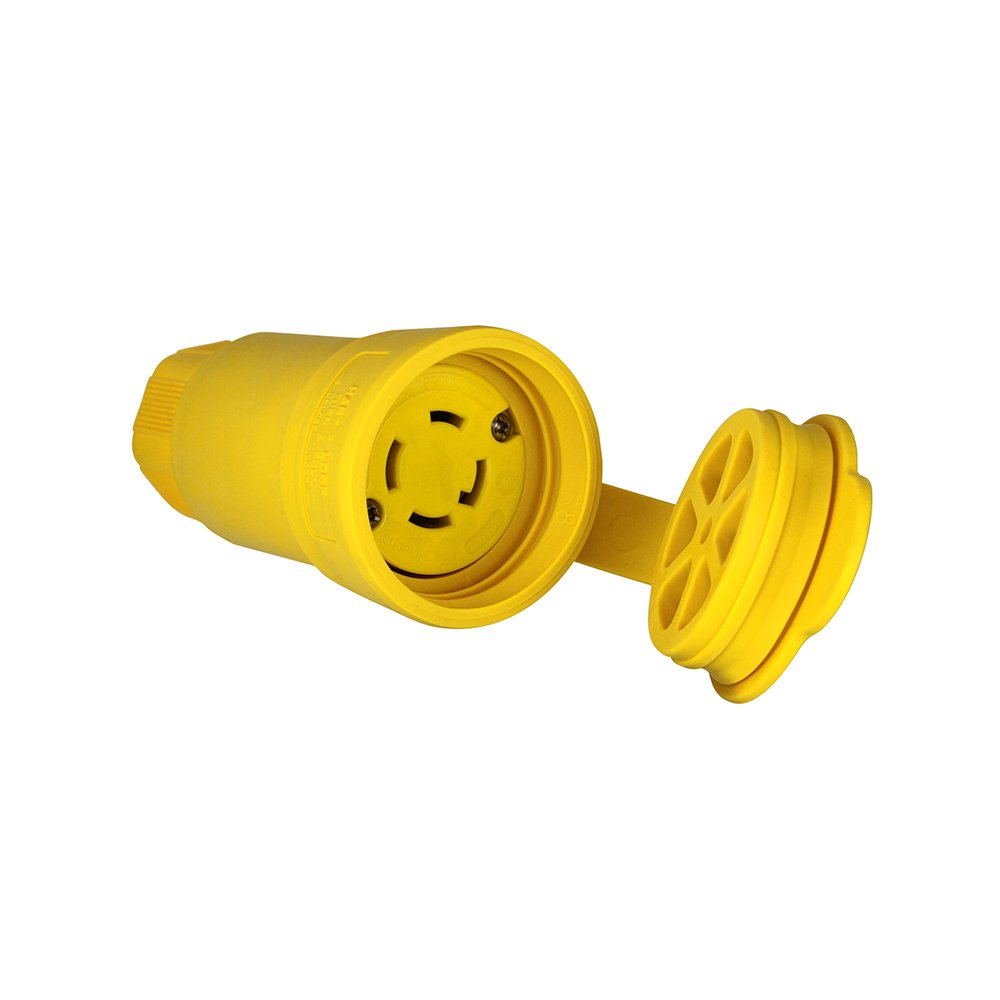

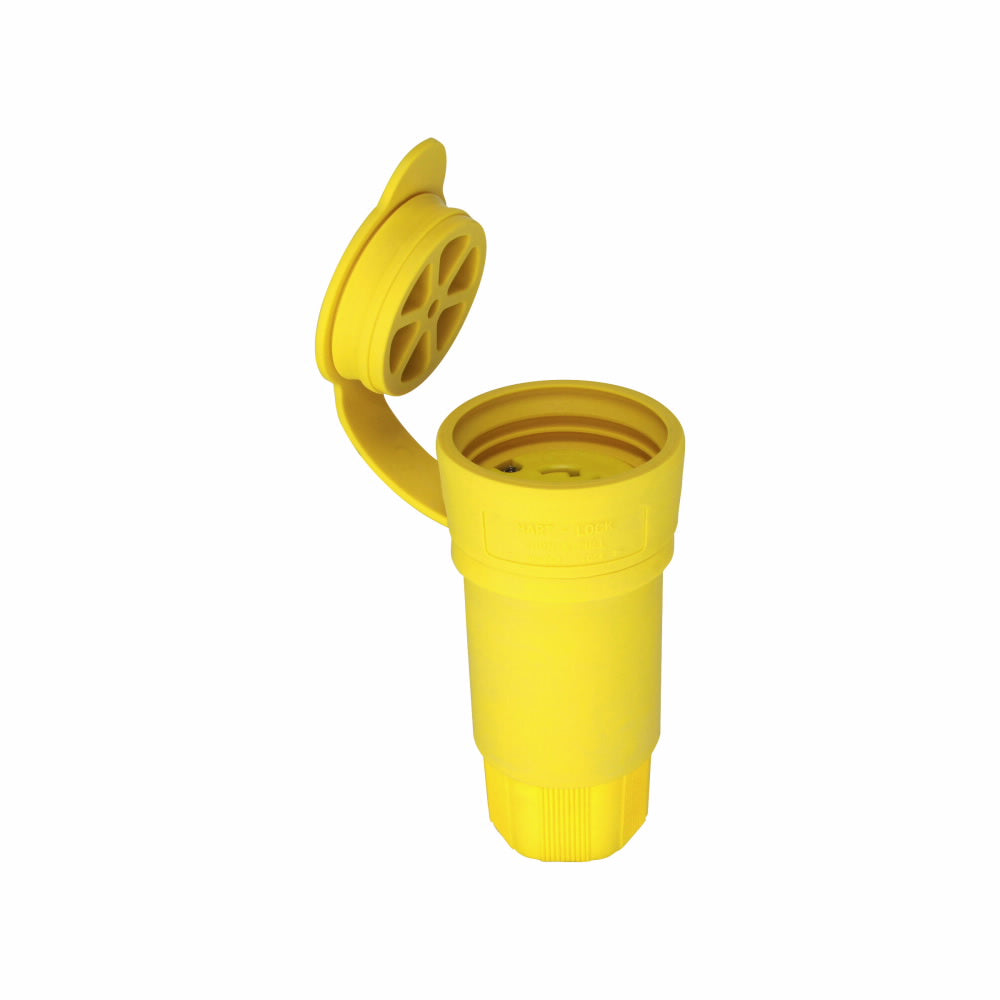

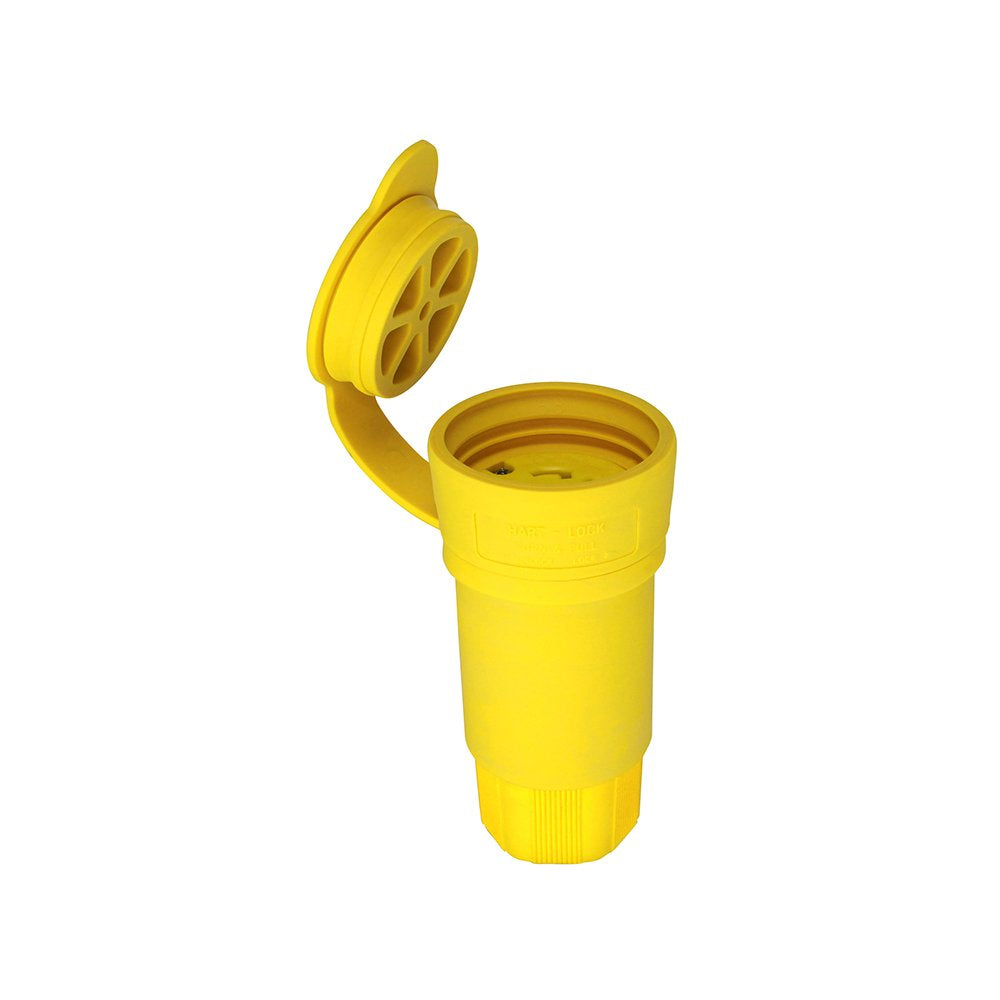

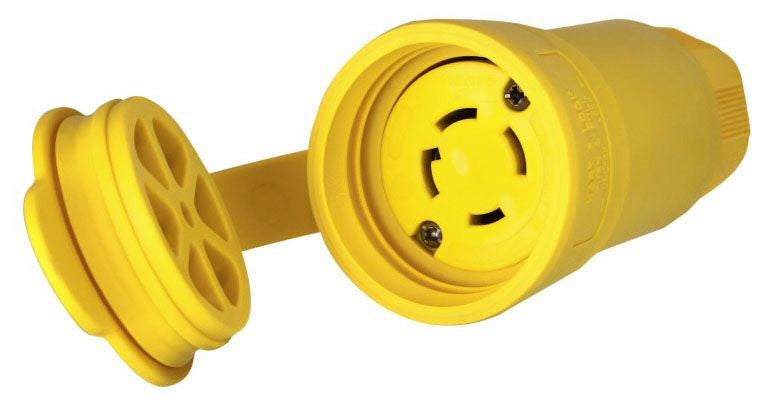

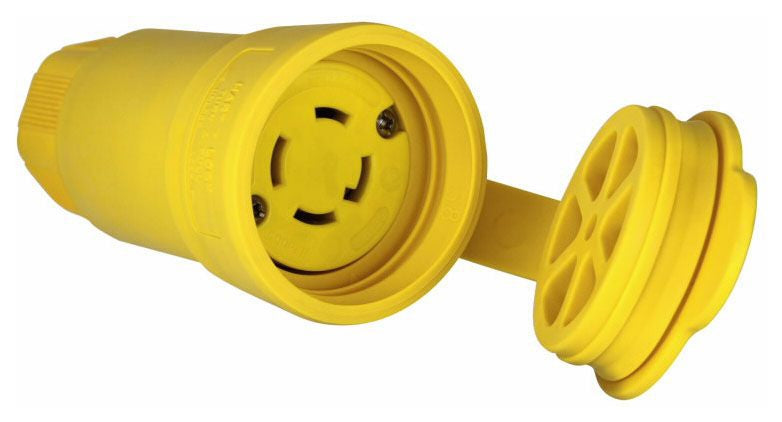

Eaton L1630CW Watertight Connector 30 Amp 480V

Product Description

The Eaton L1630CW is a 30 Amp 480V hart-lock watertight connector ideal for industrial applications. It is available in a wide range of NEMA and non-NEMA configurations. The connector features a Santoprene thermoplastic elastomeric exterior with a triple sealing system for watertight performance resistant to chemicals and severe washdown environments.

• Nickel plated contacts, blades and terminal screws provide corrosion-resistance
• Innovative sealing system provides multipoint watertight seal
• Watertight plug & connector 30A, 3O 480V Nema L16-30 3-Pole/4-Wire

Product Highlights

This Eaton watertight locking connector offers a robust design and superior materials for watertight security in harsh environments. It has a NEMA 4X and IP67 watertight rating when mated.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: L1630CW
• Country of Origin: MEX

Technical Specifications

• Brand: Eaton
• Manufacturer: EATON
• Model / MPN: L1630CW
• Amperage Rating: 30 A
• Application: Elastomeric Devices Applications
• Cord Diameter: 0.43 to 1.15 in
• Enclosure: IP67
• Grade: Industrial
• Material: Santoprene™ TPE
• NEMA Rating: NEMA L16-30
• Number of Poles: 3
• Number of Wires: 4
• Standards/Approvals: cULus Listed|NAFTA Compliant|NOM 426 Certified|UL 498|UL 94 V-2 Flammability Rated
• Temperature Rating: -40 to 75 deg C
• Terminal Type: Screw
• Type: 3-Phase Grounding Watertight
• Voltage Rating: 480 VAC
• Wiring: Back
• AWG: 18-10
• Compliances: RoHS Compliant
• Certifications: cULus Listed NOM
• Degree of protection: IP67
• NEMA configuration: L16-30
• Number of poles: Three-pole
• Number of wires: Grounding 4
• Torque rating: 20 lbf-inch
• Environmental resistance: IP67 NEMA 6P NEMA 4X NEMA 4 NEMA 6
• Allowable wire size: #18-10 AWG
• Wiring method: Back
• Contact material: Nickel plated brass
• Design type: Watertight locking connector
• Device grade: Extra heavy-duty industrial specification grade
• Face/body material: Nylon
• Special features: Watertight
• Connector Style: NEMA L16-30C
• Connector Type: Receptacle, Female Sockets
• Current Rating (Amps): 30A
• Number of Positions: 4
• Mounting Type: Free Hanging (In-Line)
• Termination: Screw
• Features: Cord Grip, Cover
• Material Flammability Rating: UL94 V-2
• Ingress Protection: IP67 - Dust Tight, Waterproof
