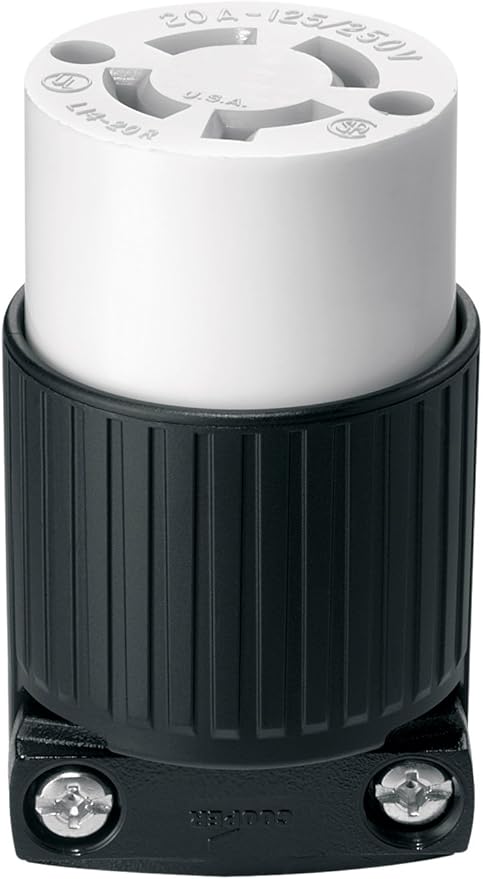

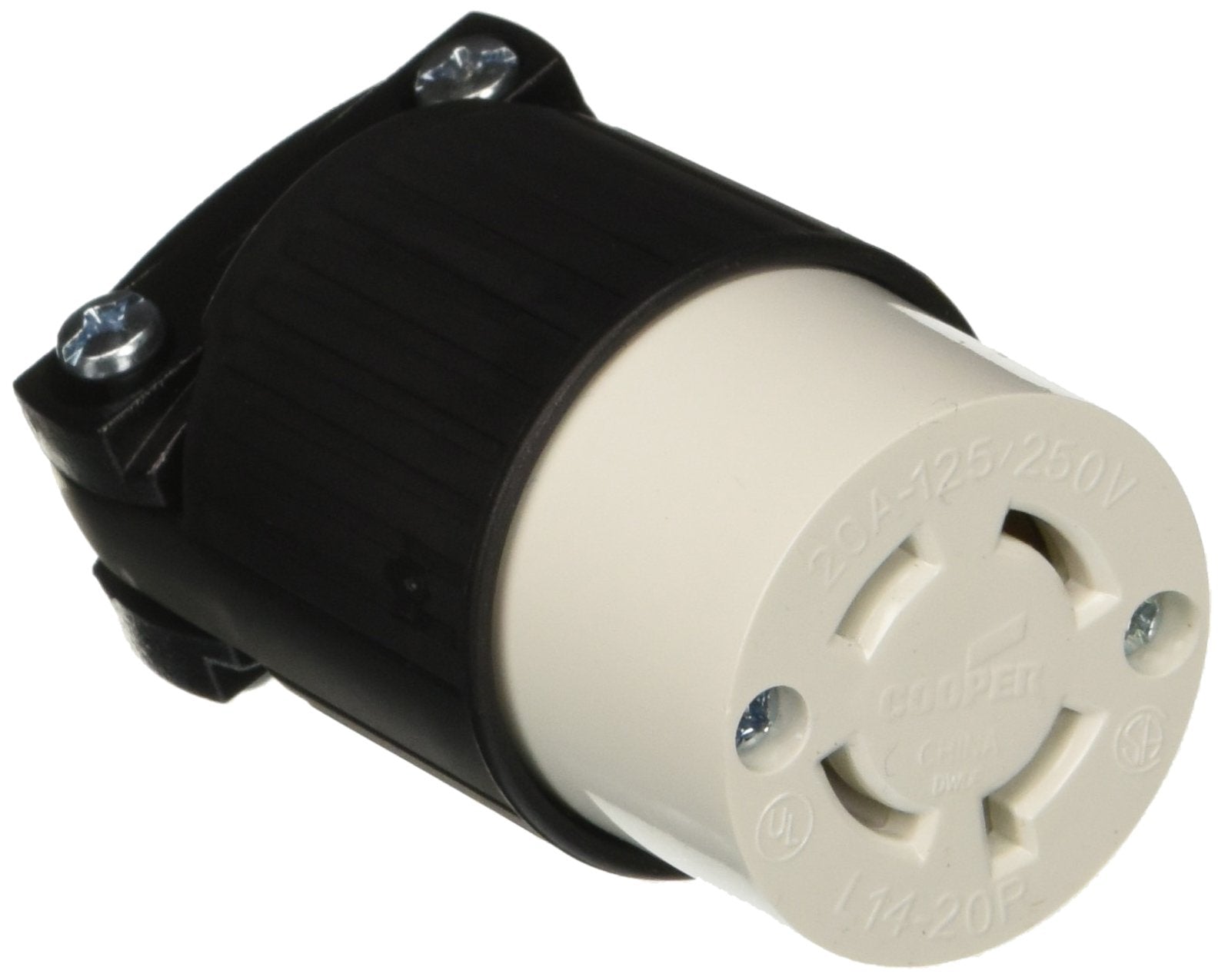

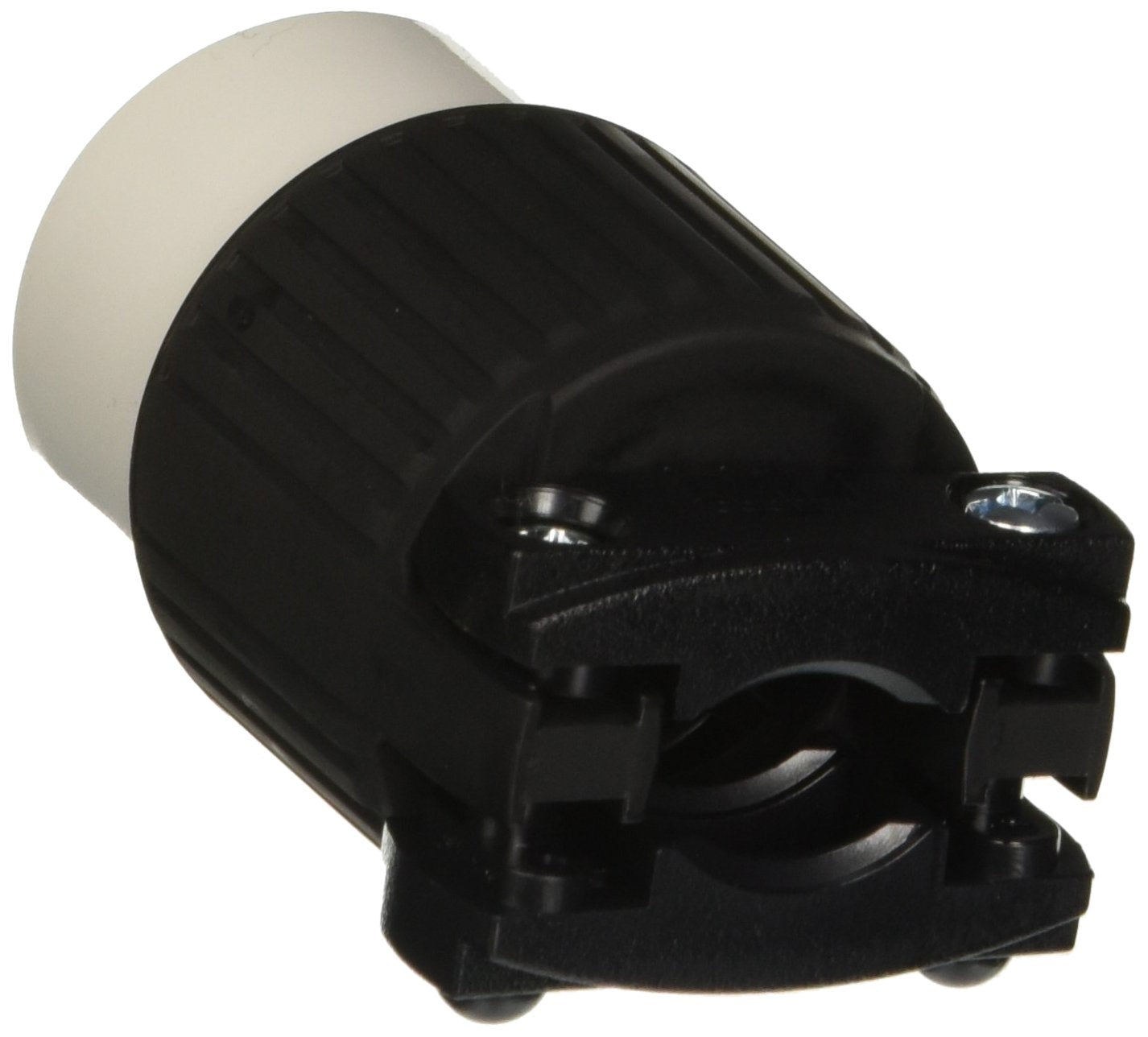

Eaton L1420C Arrow Hart Safety Grip Heavy Duty Grounded Polarized Twist Lock, 125/250 V, 20 A

Product Description

The EATON L1420C Arrow Hart Safety Grip Heavy Duty Grounded Polarized Twist Lock is an industrial connector operating at 125/250 V and 20 A. This twist lock connector features a safety grip and is built for heavy-duty applications. It is designed to meet NEMA standards and is suitable for commercial, industrial, and institutional use.

• Heavy Duty construction
• Grounded and Polarized
• Twist Lock mechanism

Product Highlights

This EATON twist lock connector ensures a secure and reliable connection for demanding electrical applications.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: L1420C
• Country of Origin: China

Technical Specifications

• Color: Black
• Voltage: 125/250 V
• Amperage: 20 A
• Connector Type: Plug in
• Specification Met: NEMA
• Batteries Included?: No
• Batteries Required?: No
• Poles: 3
• Wires: 4
• Wire Gauge: 16 - 12 AWG
• Cord Diameter: 0.38 - 1 in
• Material: Nylon
• Application: Commercial, Industrial and Institutional
• Product Length/Depth: 1.82 in
• Product Height: 3.19 in
• Product Width: 1.82 in
• Compliances: RoHS Compliant
• Certifications: NOM, UL Listed, CSA certified, cULus Listed
• Product Type: Standard locking
• Special features: Safety grip locking plug
• Type: Polarized
• Contact material: Brass
• Device grade: Commercial
• Wiring method: Back
• Number of wires: Grounding, 4
• Number of poles: Three-pole
• Operating temperature: -20 to 60 °C (-4 to 140 °F)
• Allowable wire size: #16-10 AWG Copper, or Copper-Clad Aluminum
• NEMA configuration: L14-20
• Torque rating: 15 lbf-inch
• Design type: Standard locking connector
• Face/body material: Thermoplastic
• Grounding Type: Grounded
• Cable/Wire Size: 1/4 to 11/16 in
