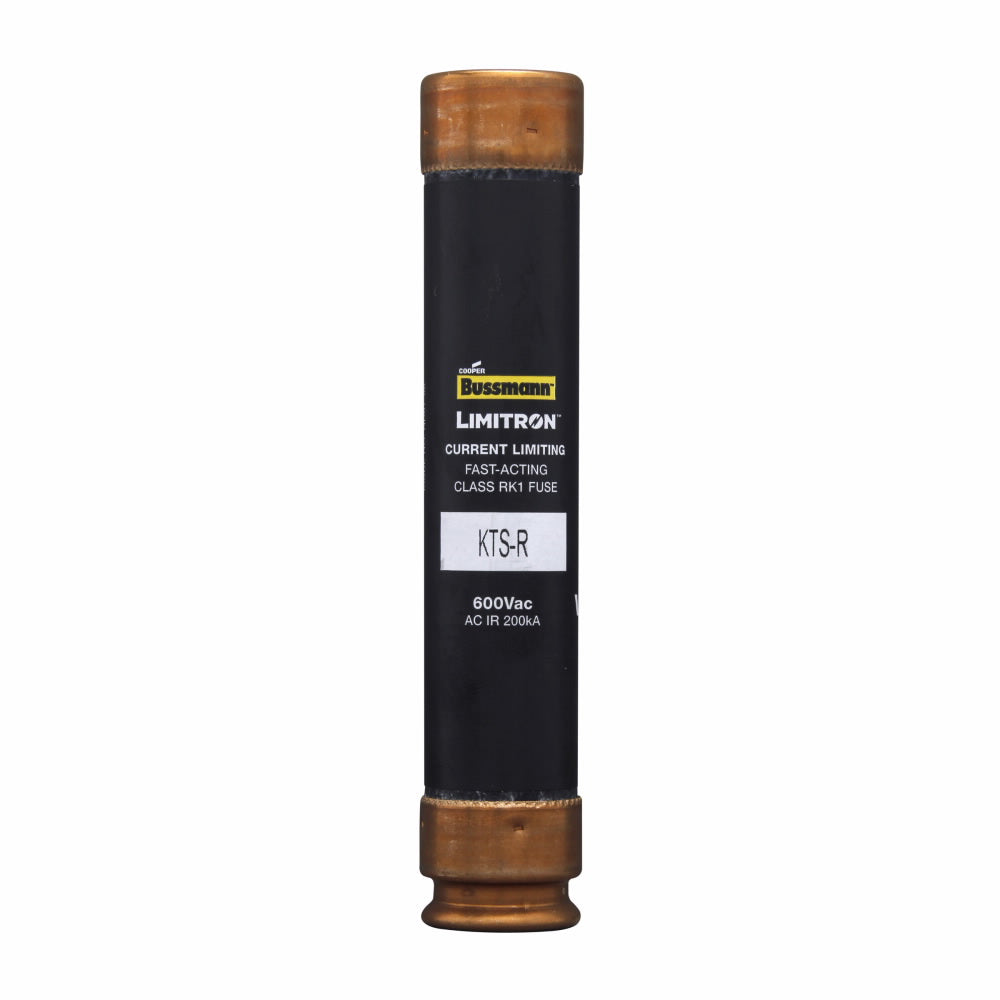

Eaton KTS-R-35 BUS 600V Limitron Fuse

Product Description

Eaton KTS-R-35 BUS 600V Limitron Fuse is designed for fast acting current limiting applications. This low voltage fuse is rated for thirty-five amperes and six hundred volts. It has a two hundred kA interrupting capacity making it suitable for high fault conditions.

• Fast acting current limiting response
• Non-indicating rejection type fuse
• Compatible for use in panelboard and safety systems

Product Highlights

This fuse offers reliable performance in critical electrical applications. The cartridge body type allows for easy installation in compatible fuse holders.

Product Information

Standard Information

• Manufacturer: Eaton
• Manufacturer Part Number: KTS-R-35

Technical Specifications

• Amperage Rating: 35 A
• Voltage Rating: 600 VAC
• Interrupt Rating: 200 kA
• Body Size: 1.06 inches Diameter x 5.5 inches Length
• Body Type: Cartridge
• Class: RK1
• Element: Single
• Material: Melamine Glass
• Terminal Type: Ferrule
• Mounting Type: Holder
• Indicating Type: Non-Indicating
• Series: KTS-R
• Approval Standards: CE Certified, CSA, UL
