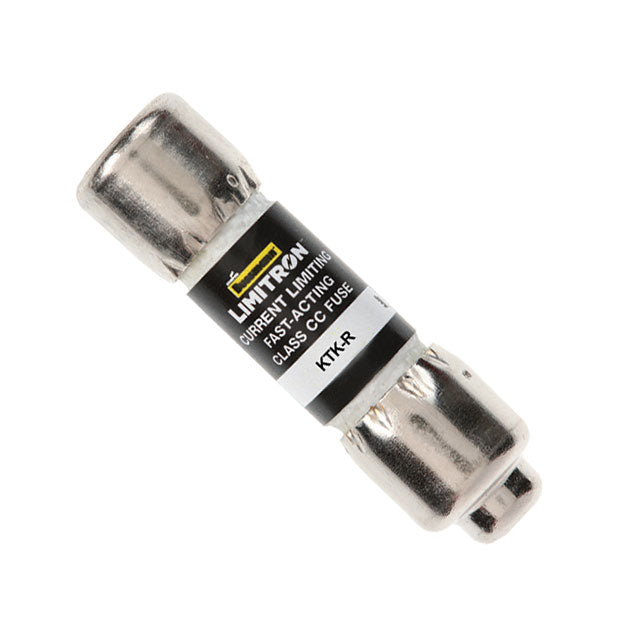

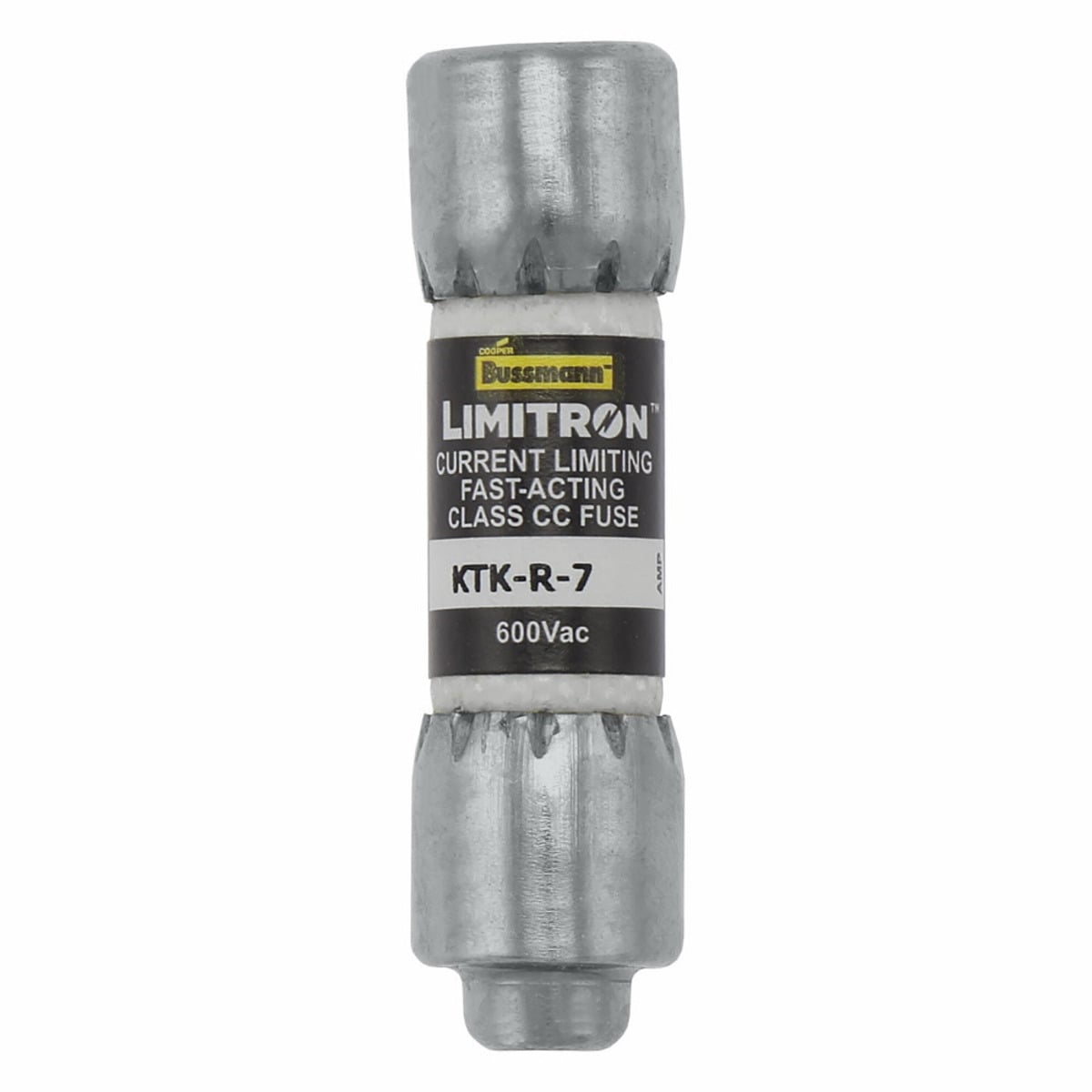

Eaton KTK-R-7 Limitron fast-acting fuse 7 A (Class CC, 600 V)

Product Description

Eaton KTK-R-7 is a Limitron fast-acting, current-limiting Class CC cartridge fuse rated 7 A at 600 V AC. It is a rejection-style, non-indicating fuse with ferrule end-to-end terminations and a melamine tube body, offering a 200 kA interrupting rating. The compact 5AG (10 mm x 38 mm) package measures 0.406 in diameter by 1.50 in length and requires a fuse holder for branch circuit and industrial control protection.

• 7 A current rating, Class CC, LIMITRON fast-acting current-limiting design for branch circuits and industrial control
• 600 V AC voltage rating with 200 kAIC interrupting capacity; melamine tube body with ferrule end-to-end terminations
• Rejection-style, non-indicating 5AG (10 mm x 38 mm) cartridge that requires a compatible fuse holder

Product Highlights

Limitron fast-acting 7 A Class CC cartridge fuse, 600 V AC, 200 kAIC, rejection-style, ferrule terminations, 0.406 in x 1.50 in

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: KTK-R-7
• Country of Origin: Mexico

Technical Specifications

• Brand: Eaton
• MPN: KTK-R-7
• Series: Bussmann KTK-R (Limitron)
• Type: LIMITRON fast-acting current-limiting fuse
• Fuse Class: Class CC
• Current Rating: 7 A
• Voltage Rating: 600 V AC
• Interrupting Rating: 200 kAIC
• Body Material: Melamine tube
• End Termination: Ferrule end x ferrule end
• Style: Rejection
• Indicating: Non-indicating
• Body Size / Dimensions: 0.406 in diameter x 1.500 in length (10.30 mm x 38.10 mm)
• Package / Case: 5AG (10 mm x 38 mm) cartridge
• Number of Elements: Single
• Mounting Type: Requires fuse holder / Holder mount
• Terminal Type: Ferrule
• Applications: Branch circuits; industrial control; specialized circuits; street lighting; inline fuse holders; capacitors and distribution
• Standards / Certifications: UL 248-4; UL Listed; CSA Certified; CE Marked; RoHS Compliant
• Weight: 0.02 lb
