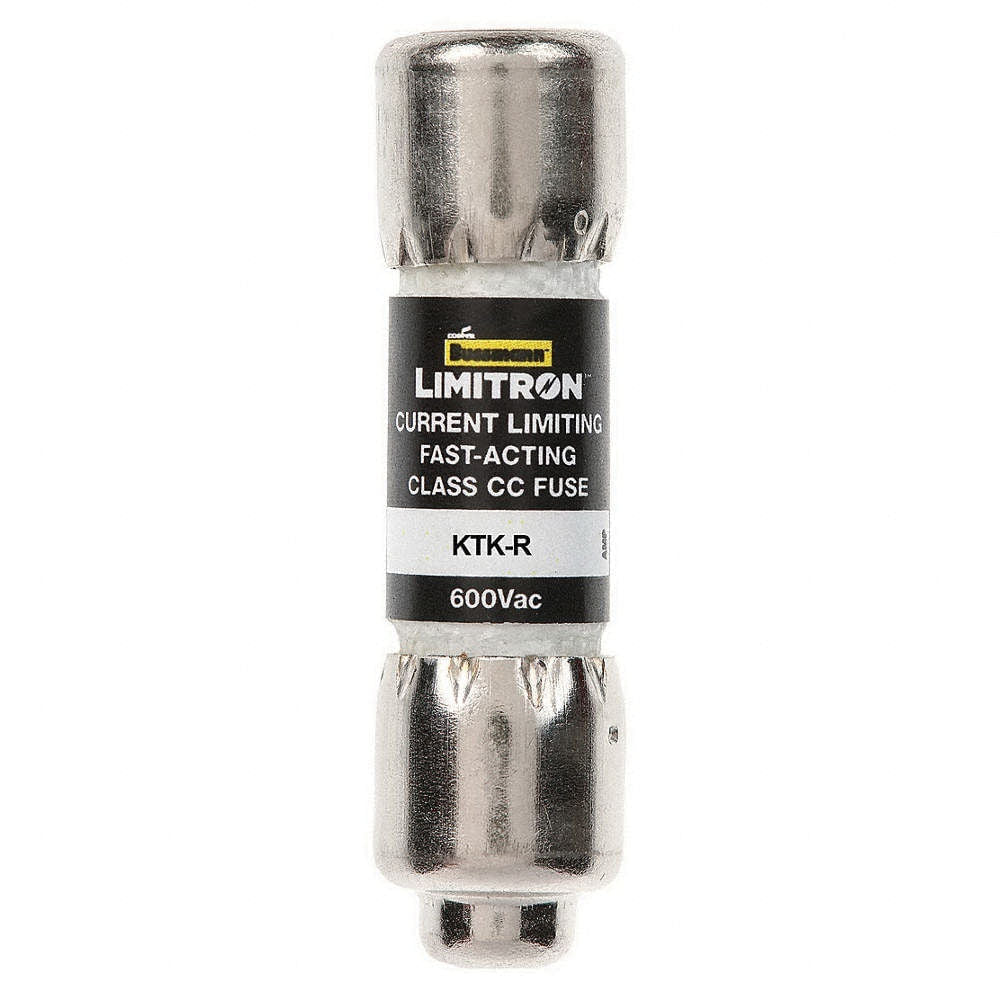

Eaton KTK-R-12 Limitron Fast-Acting Class CC Fuse 12 A (13/32 in x 1-1/2 in)

Product Description

Eaton KTK-R-12 is a Bussmann series Class CC fuse rated 12 A and 600 V for specialized circuits and industrial control. It is a rejection-style, non-indicating, current-limiting fast-acting fuse with ferrule end-to-end terminations and a melamine tube body, rated 200 kA interrupting capacity and sized 13/32 in diameter by 1-1/2 in length for holder mounting and branch-circuit protection.

• 12 A current rating, Class CC; voltage rating 600 V; interrupting rating 200 kAIC
• Rejection-style with ferrule end x ferrule end termination and melamine tube body (13/32 in x 1-1/2 in)
• Limitron current-limiting fast-acting characteristic for branch-circuit and industrial control protection

Product Highlights

Class CC 12 A, 600 V current-limiting fuse; 200 kAIC interrupting rating; rejection-style ferrule terminations; melamine tube body.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: KTK-R-12
• Country of Origin: Mexico

Technical Specifications

• Brand: Eaton
• MPN: KTK-R-12
• Series: Bussmann KTK-R
• Type: Current limiting fast-acting fuse
• Fuse Type: Limitron Fast-Acting
• Current Rating: 12 A
• Fuse Class: Class CC
• Voltage Rating: 600 V
• Interrupting Rating: 200 kAIC
• Style: Rejection
• Indicating: Non-indicating
• Termination: Ferrule end x ferrule end
• Tube Material: Melamine
• Element: Single
• Body Size: 13/32 in diameter x 1-1/2 in length
• Body Type: Cylindrical
• Mounting Type: Holder
• Applications: Specialized circuits; industrial control; branch-circuit protection; lighting and commercial applications
• Approvals / Certifications: UL Listed (UL 248-14), CSA C22.2, CE Marked, RoHS Compliant
• Dimensions: 13/32 in Dia x 1-1/2 in L
