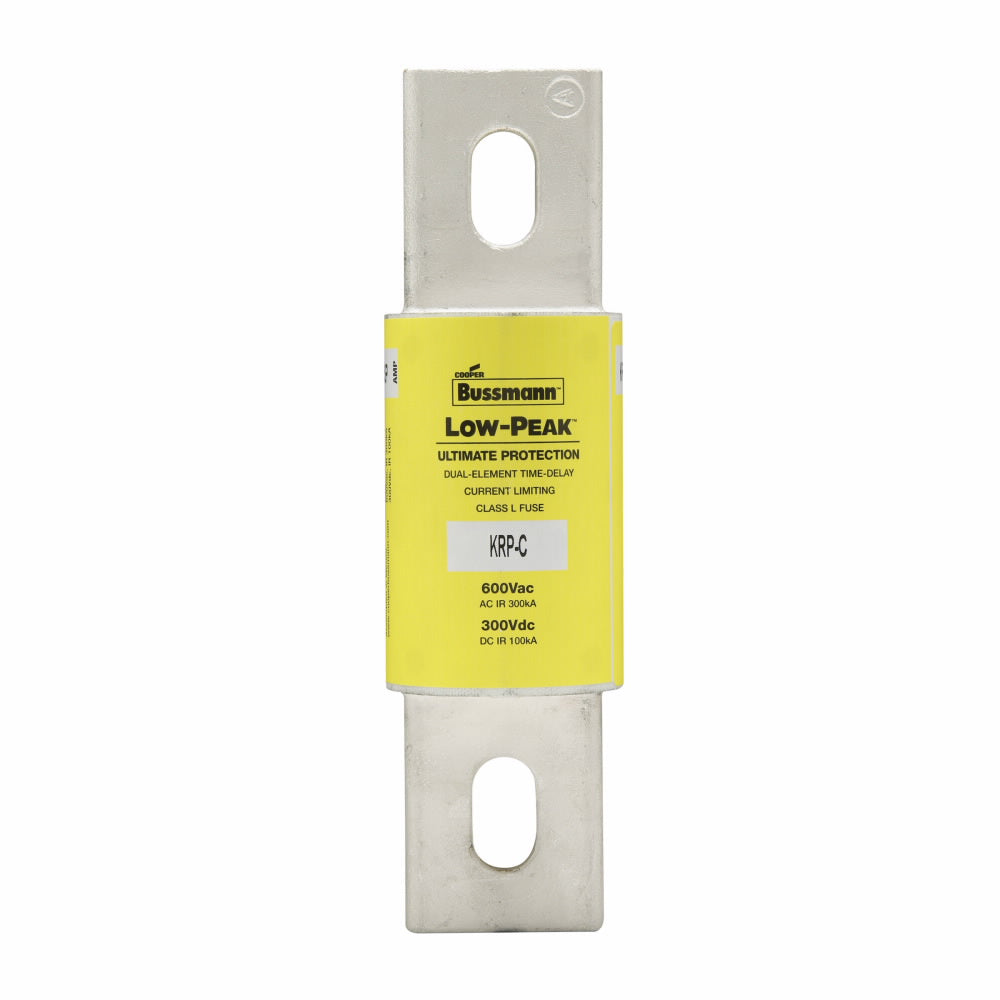

Eaton KRP-C-700SP BUS 600V CLSS L TD FUSE

Product Description

The Eaton KRP-C-700SP is a Bussmann Low-Peak™ current limiting time delay fuse designed for high-capacity applications. This fuse operates at a voltage rating of six hundred VAC and three hundred VDC with an amperage rating of seven hundred amps. It features a 300 kA interrupt rating for safety and reliability in various industrial settings.

• Time delay characteristic of four seconds at five hundred percent rated load
• Dimensions: two point five inches in diameter by eight point six three inches in length
• Dual element design for enhanced performance

Product Highlights

Use this fuse in large machinery disconnects and power panelboards for optimal protection against overload and short circuits.

Product Information

Standard Information

• Manufacturer: Eaton
• Series: KRP-C

Technical Specifications

• Voltage Rating: 600 VAC / 300 VDC
• Amperage Rating: 700 A
• Interrupt Rating: 300 kAIC
• Body Size: 2.5 in diameter x 8.63 in length
• Body Type: Cartridge
• Mounting Type: Bolted-On
• Material: Melamine
• Class: L
• Response Time: 4 s at 500%
