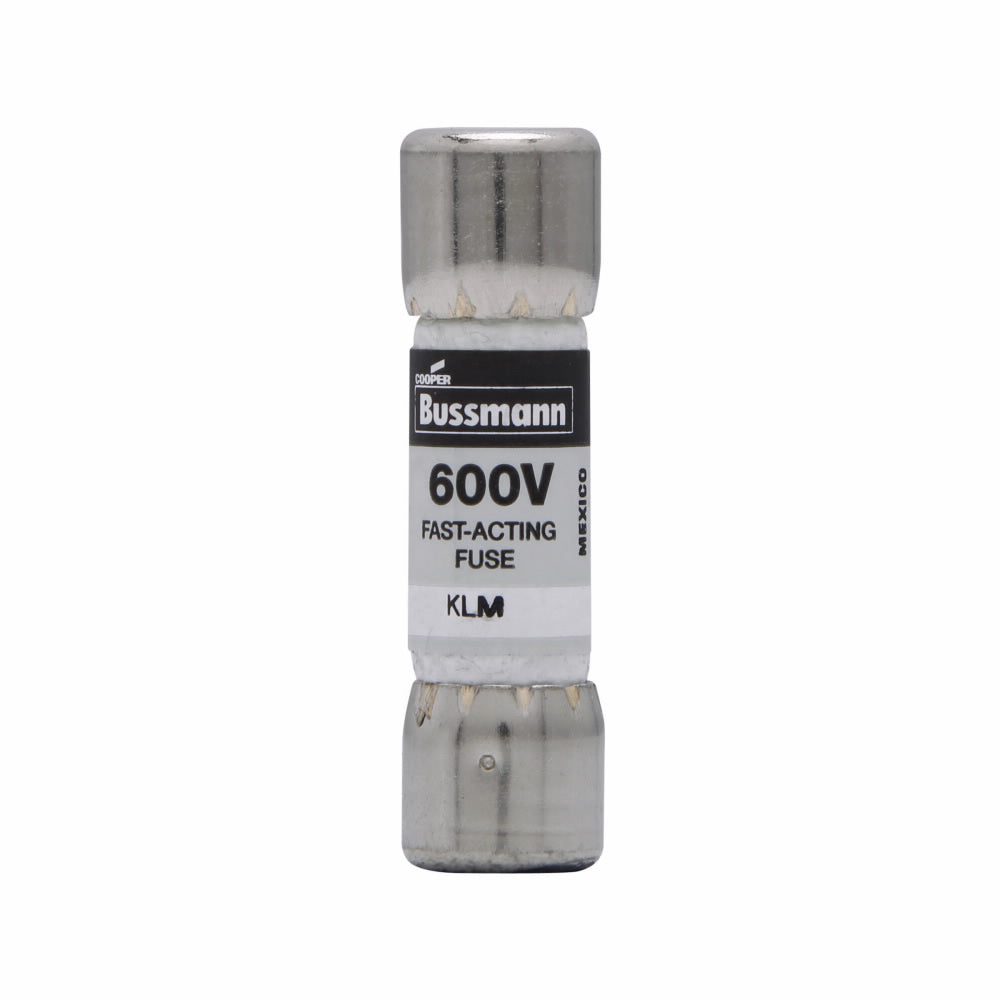

Eaton KLM-12 Bussmann Series KLM-1/2 Limitron Fast Acting Fuse 600 VDC 50 kAIC

Product Description

The Eaton KLM-1/2 Limitron Fast Acting Fuse is designed for reliable circuit protection. It operates at half an ampere with a voltage rating of 600 volts AC or DC. This fuse features a nickel-plated bronze end cap and a melamine tube for durability.

• Fast acting for quick fault response
• Rated for DC control circuits and solar power applications
• Compatible with ferrule end terminals

Product Highlights

This fuse is a great choice for electrical professionals needing effective protection solutions.

Product Information

Standard Information

• Brand: Eaton
• Manufacturer: Bussmann Mfg.

Technical Specifications

• Amperage: 1/2 Amp
• Voltage Rating: 600 VAC/VDC
• Interrupt Rating: 50 kAIC at 600 VDC, 100 kAIC at 600 V
• Body Size: 13/32 inches diameter x 1-1/2 inches length
• Material: Melamine
• Connection Type: Ferrule End X Ferrule End
• Class: Supplemental
• Standards/Approvals: CE, CSA C22.2, UL 248-14
