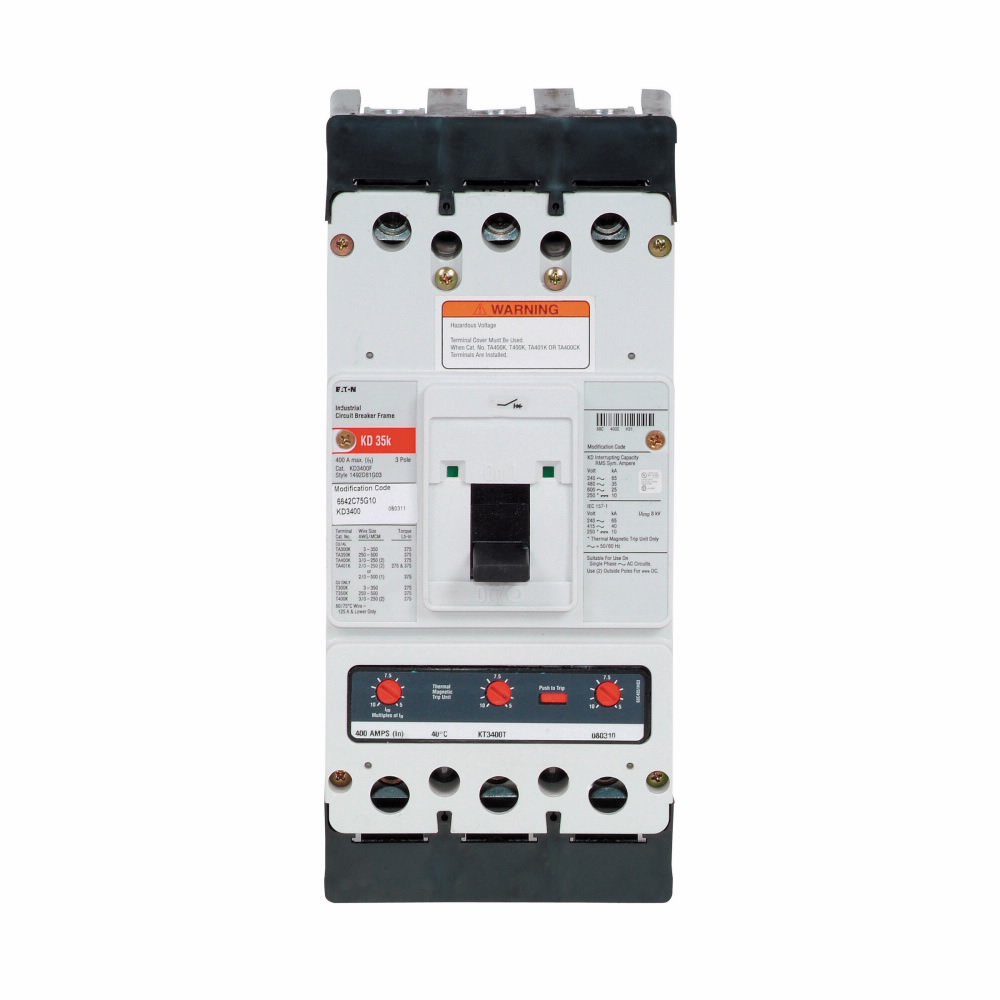

Eaton KD3400K ETN KD 3P 400A MCCB SW W/3T

Product Description

Eaton KD3400K is a three-pole molded case circuit breaker rated for four hundred amps. This unit is part of the Eaton Series C and is designed for applications up to six hundred volts AC and two hundred fifty volts DC.

• Fixed thermal and fixed magnetic trip type
• Interrupt rating of sixty-five kAIC at two hundred forty VAC
• Application suitable for electrical assemblies, panels, and OEMs

Product Highlights

The Eaton KD3400K circuit breaker is suitable for panelboards, switchboards, and motor control centers. Designed for high reliability and user acceptance, this model meets North American standards

Product Information

Standard Information

• Manufacturer: Eaton
• Brand: Eaton

Technical Specifications

• Catalog Number: KD3400K
• Voltage Rating: 600 VAC, 250 VDC
• Amperage Rating: 400 A
• Frequency Rating: 50-60 Hz
• Trip Type: Fixed Thermal, Fixed Magnetic
• Interrupt Rating: 65 kAIC at 240 VAC | 35 kAIC at 480 VAC
• Number of Poles: 3
• Dimensions: 4.1 inches x 5.5 inches x 5.5 inches
