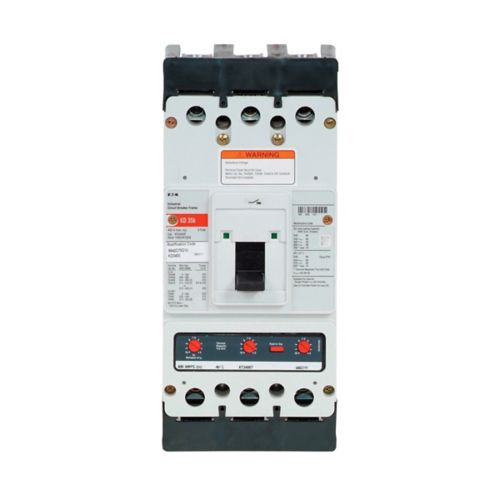

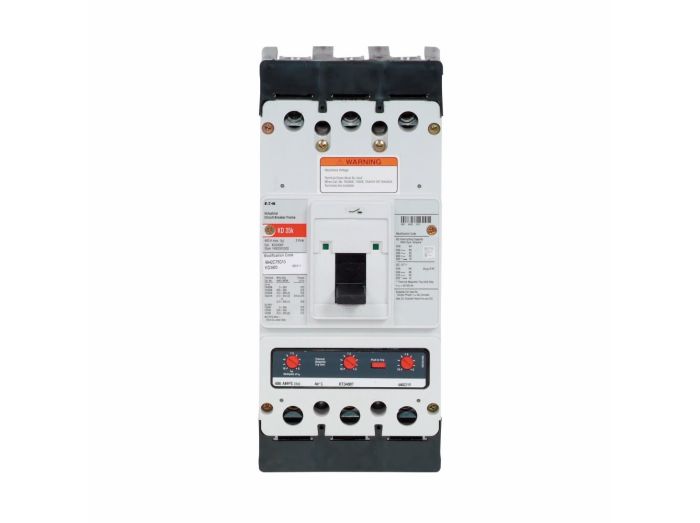

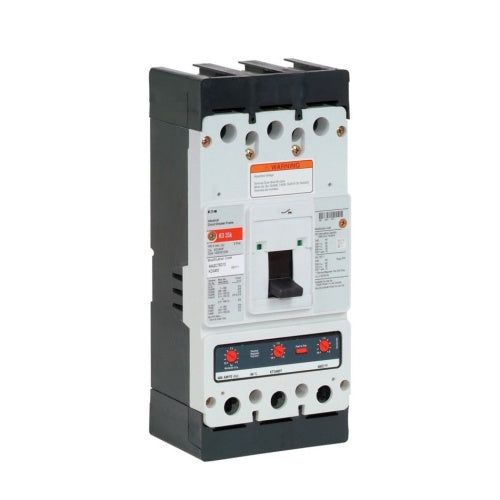

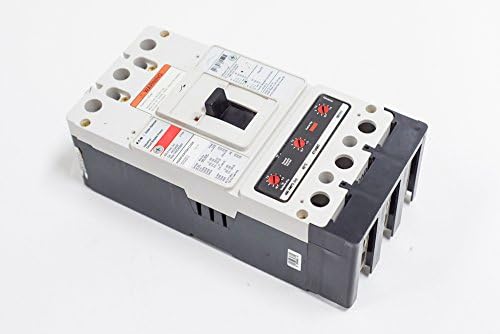

Eaton KD3350 Series C Complete Molded Case Circuit Breaker 350A

Product Description

The Eaton KD3350 Series C complete molded case circuit breaker is a K-frame, three-pole breaker with a fixed thermal and magnetic trip. Rated at 350 A, 600 Vac, and 250 Vdc, it offers interrupt ratings of 65 kAIC at 240 Vac and 35 kAIC at 480 Vac. It is designed with aluminum line and load terminals and operates at 50/60 Hz.

• Patented contact design features high-speed “blow-open” action.
• Large domestic installed base ensures familiarity and acceptability throughout the U.S.
• Extensive line of heavy duty external accessories are ideal for harsh and hazardous environments.

Product Highlights

The Eaton KD3350 circuit breaker is designed for reliable circuit protection in various applications.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: KD3350
• Country of Origin: United States

Technical Specifications

• Product Name: Eaton Series C complete molded case circuit breaker
• Catalog Number: KD3350
• UPC: 786679349182
• Product Length/Depth: 4.1 in
• Product Height: 5.5 in
• Product Width: 5.5 in
• Certifications: UL Listed
• Product Type: Molded case circuit breaker
• Amperage Rating: 350 A
• Voltage rating: 600 Vac, 250 Vdc
• Trip Type: T186
• Circuit breaker type: KD
• Circuit breaker frame type: Complete breaker
• Series: Series C
• Terminals: Line and load
• Frame: K
• Frequency rating: 50 to 60 Hz
• Terminal material: Aluminum
• Interrupt rating: 35 kAIC at 480 Vac 65 kAIC at 240 Vac
• Number of poles: Three-pole
• Poles (Molded Case Breaker): Three Pole
• Maximum Voltage (Molded Case Breaker): 600 VAC
• Component: Molded Case Circuit Breaker
• Manufacturer: Eaton
• Frame Type (Molded Case Breaker): K Frame
• Product Series: C
• Family Series: Eaton Circuit Breakers, C Series
• Description: CIRCUIT BREAKER, 3-P, 350A/600VAC 35KAIC@480VAC, W/ LINE AND LOAD LUGS SERIES C
• Poles: 3
• Current Rating: 350 A
• Max Voltage: 600 VAC
• Net Weight: 11.9 lbs
• Mounting Type: Bolt-On Mount
• Voltage: 600 Volts
