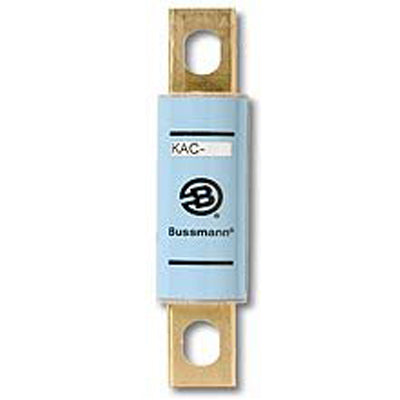

Eaton KAC-80 Bussmann Tron KAC High Speed Fuse 80 A 600 V

Product Description

Eaton KAC-80 is a Bussmann Tron KAC series high speed fuse rated 600 V AC and 80 A with a 200 kAIC interrupting rating, intended for rapid overcurrent protection of power semiconductors and power conversion equipment. It features blade end to blade end terminals with stud (bolt-down) termination and a non-indicating, non-rejection design. Typical applications include rectifiers, DC link protection, reduced voltage starters, and industrial power converters.

• Rated 600 V AC, 80 A with 200 kAIC interrupting capacity
• High speed (fast-acting) semiconductor fuse with blade end x blade end terminals and stud/bolt-down mounting
• Non-indicating, non-rejection design for protection of semiconductors, rectifiers, converters, and power electronics

Product Highlights

High speed semiconductor fuse; 600 V AC, 80 A; 200 kAIC interrupting rating

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: KAC-80
• Country of Origin: Mexico

Technical Specifications

• Brand: Eaton (Bussmann)
• Manufacturer Part Number: KAC-80
• Series: Bussmann Tron KAC
• Product Type: High speed fuse
• Fuse Type: Fast-acting (high speed semiconductor)
• Voltage Rating: 600 V AC
• Current Rating: 80 A
• Interrupting Rating: 200 kAIC
• Termination: Stud (blade end x blade end)
• Mounting Type: Stud / Bolt-on
• Terminal Type: Blade
• Indicator: Non-indicating
• Rejecting: Non-rejection
• Dimensions (L x W x H): 5 x 1 x 1 inches
• Diameter: 1 in
• Weight: 0.27 lb
• Packaging: Standard
• UPC: 51712470803
• Certifications: UL Recognized; CE Marked
• Country of Origin: Mexico
• Series Alias: KAC
