Product Description

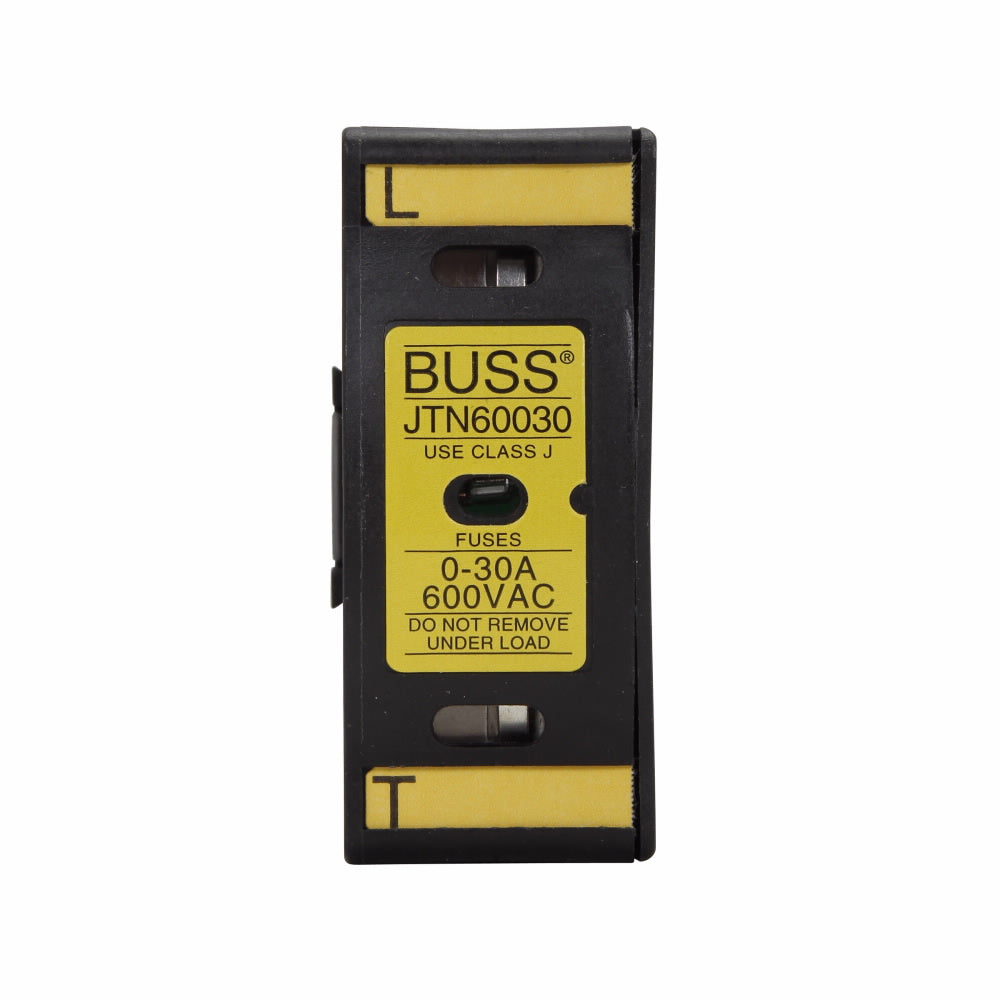

Eaton's JTN60030 is a Bussmann fuse holder designed for safety and ease of use. This finger-safe holder accommodates fuses rated at thirty amps and six hundred volts. It features a neon lamp indicator for quick status checks. The holder is suitable for various electrical assemblies and can be mounted on a DIN rail.
- Finger-safe design minimizes the risk of accidental contact.
- Accommodates wire sizes between eighteen and eight AWG.
- Compatible with LPJ and JKS series class J non-indicating fuses.
Product Highlights
This product is ideal for electrical panels and assemblies. It reduces installation time and space requirements, leading to lower labor costs. Additionally, it provides a reliable solution for fuse applications in industrial controls.
Product Information
Standard Information
-
Manufacturer: Eaton
-
Manufacturer Part Number: JTN60030
Technical Specifications
-
Amperage Rating: 30 A
-
Voltage Rating: 600 V
-
Class: J
-
Number of Poles: 3
-
Fuse Length: 2-1/4 in
-
Fuse Diameter: 0.81 in
-
Connection Type: Box Lug
-
Temperature Rating: 75 deg C
-
Mounting Type: DIN Rail
-
Material: Thermoplastic
-
Dimensions: 2.52 in L x 1.23 in W x 2.75 in H
-
Standards/Approvals: CE Certified | CSA File No. 47235 | IEC 60529 | RoHS Compliant | UL 4248 File No. 14853 Guide IZLT
