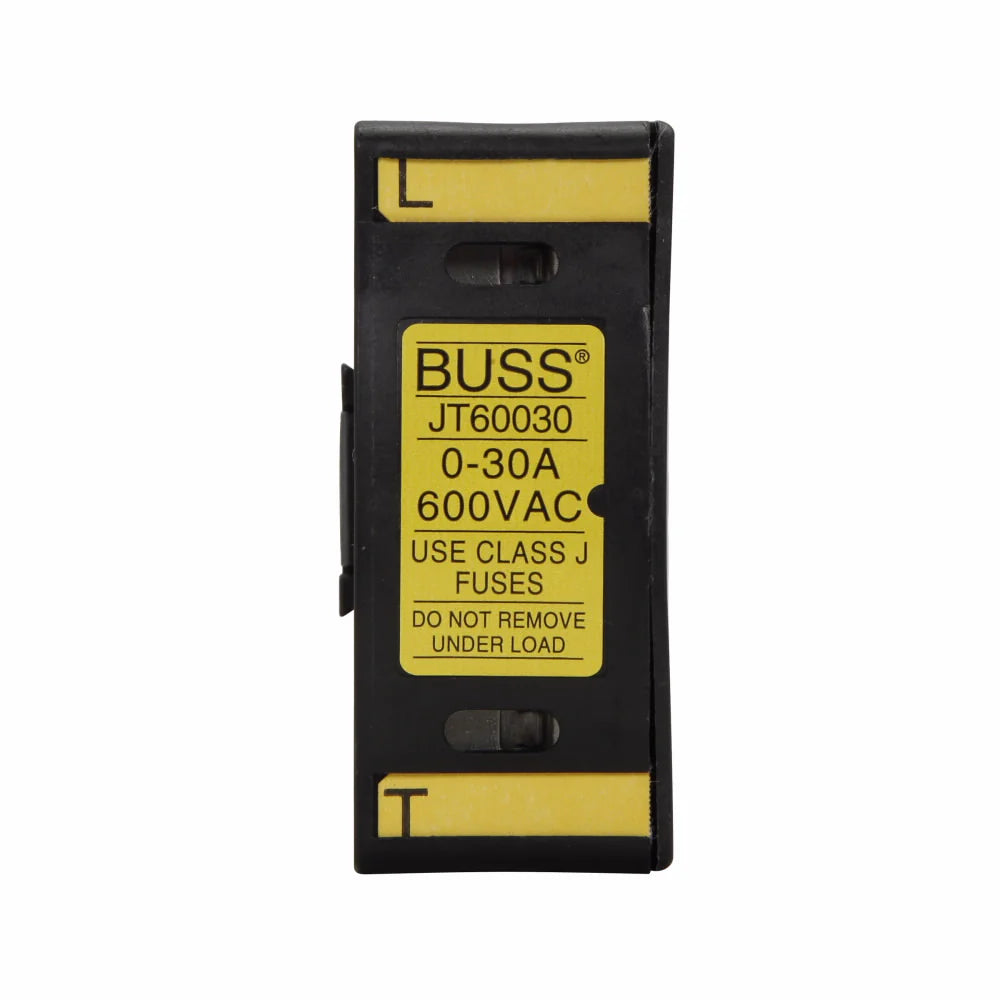

Eaton JT60030 BUS 30A 600V Safety J Fuseholder

Product Description

The Eaton JT60030 is a Bussmann safety fuseholder rated at thirty amps and six hundred volts. It is designed as a Class J fuse holder with a finger-safe feature that ensures safe handling. This fuse holder accommodates wire sizes from eighteen to eight AWG and is suitable for use with LPJ and JKS series non-indicating fuses. The construction includes a thermoplastic body for durability and a box lug connection type.

• Finger-safe design to prevent accidental contact with live parts.
• Easy installation with DIN rail mounting options.
• Compatible with multiple fuse types to enhance versatility.

Product Highlights

The Bussmann JT60030 offers a one-pole setup that simplifies electrical assemblies while providing reliable short-circuit protection.

Product Information

Standard Information

• Manufacturer: Eaton
• UPC: 05171255702

Technical Specifications

• Amperage Rating: 30 A
• Application: Electrical Assemblies, Panels, EOEMs, Industrial Controls
• Class: J
• Dimensions: 2.52 in L x 1.23 in W x 2.75 in H
• Fuse Diameter: 0.81 in
• Fuse Length: 2-1/4 in
• Voltage Rating: 600 V
• Temperature Rating: 75 deg C
• Mounting Type: DIN Rail
• Number of Poles: 1
• Material: Thermoplastic
• Connection Type: Box Lug
• Standards/Approvals: CE Certified, CSA File No.47235, RoHS Compliant
• Suitable For Use With: LPJ, JKS Series Class J Non-Indicating Fuses
