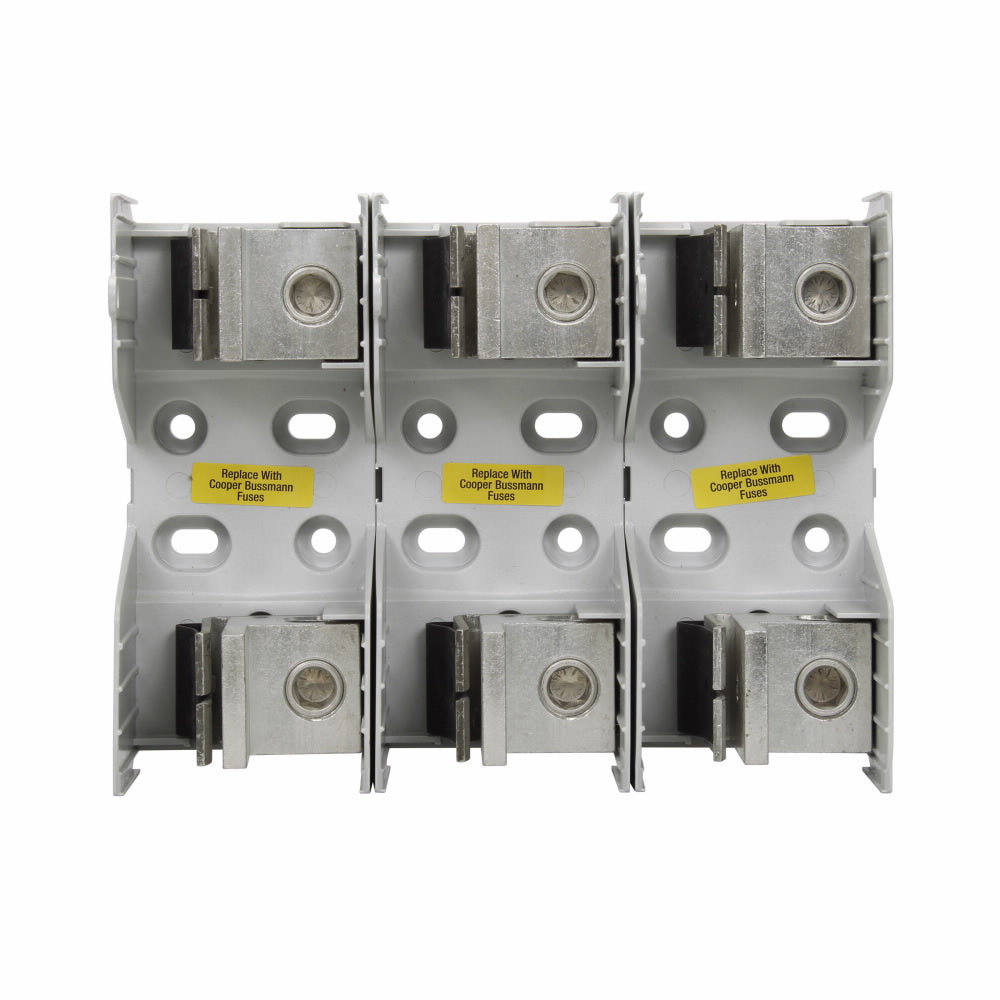

Eaton JM60400-3CR BUS 400A 600V 3-POLE CLASS J FUSE HOLDER

Product Description

The Eaton JM60400-3CR is a modular fuse block designed for efficient power distribution. It operates at a voltage of 600 volts and supports an amperage range of 225 to 400 amps. This fuse holder is suitable for Class J fuses and can accommodate knife blade ends. It is ideal for applications in electrical assemblies and panels.

• Modular design with knife blade connection
• Suitable for 3 poles with a temperature rating from -40 to 120 degrees Celsius
• Meets UL creep and clearance standards for safety

Product Highlights

This fuse block includes integral dovetails for easy assembly of multiple poles, enhancing flexibility in application.

Product Information

Standard Information

• Manufacturer: Eaton
• Category: Electrical > Fuses, Blocks & Holders > Fuse Blocks & Accessories

Technical Specifications

• Amperage Rating: 225 to 400 A
• Voltage Rating: 600 V
• Number of Poles: 3
• Connection Type: Knife Blade End
• Material: Thermoplastic
• Dimensions: 8.7 inches L x 10.4 inches W x 4.9 inches H
• Temperature Rating: -40 to 120 degrees Celsius
• Standards/Approvals: CSA Certified, RoHS Compliant, UL 94-V-0 Flammability Rating
• Suitable For Use With: Knife Blade Cartridge Fuse
