Product Description

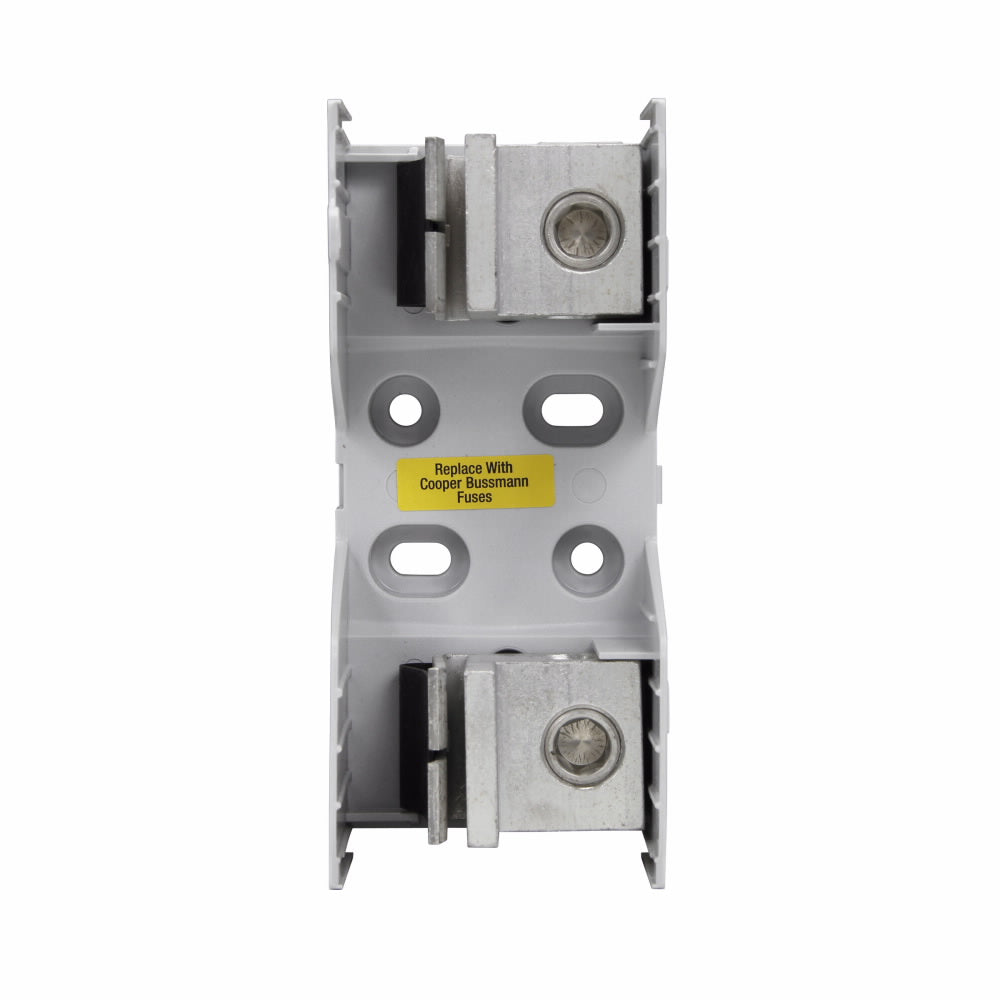

The Eaton JM60400-1CR is a modular bus fuse holder, capable of handling voltage up to 600 V and amperage from 225 A to 400 A. This product is designed for use in electrical assemblies, panels, and OEM applications. It features a knife blade end connection type, accommodating two 4 to 3/0 AWG aluminum solid/stranded wires.
- Class J design allows for compatibility with knife blade cartridge fuses.
- Temperature range from -40 to 120 degrees Celsius ensures operation in diverse conditions.
- Hole mount capabilities facilitate secure installations across various setups.
Product Highlights
The JM60400-1CR's thermoplastic construction and modular design make it suitable for a variety of applications, enhancing both flexibility and safety.
Product Information
Standard Information
-
Manufacturer: Eaton
-
Product Type: Modular Fuse Block
Technical Specifications
-
Amperage Rating: 225 to 400 A
-
Application: Electrical Assemblies, Panels and OEM Applications
-
Class: J
-
Connection Type: Knife Blade End
-
Dimensions: 8.7 in L x 3.5 in W x 4.9 in H
-
Material: Thermoplastic
-
Mounting Type: Hole
-
Number of Poles: 1
-
Series: JM Series
-
Standards/Approvals: CSA Certified, cULus File No.E14853, RoHS Compliant, UL 94-V-0 Flammability Rating
-
Suitable For Use With: Knife Blade Cartridge Fuse
-
Temperature Rating: -40 to 120 degrees Celsius
-
Type: Modular
-
Voltage Rating: 600 V
