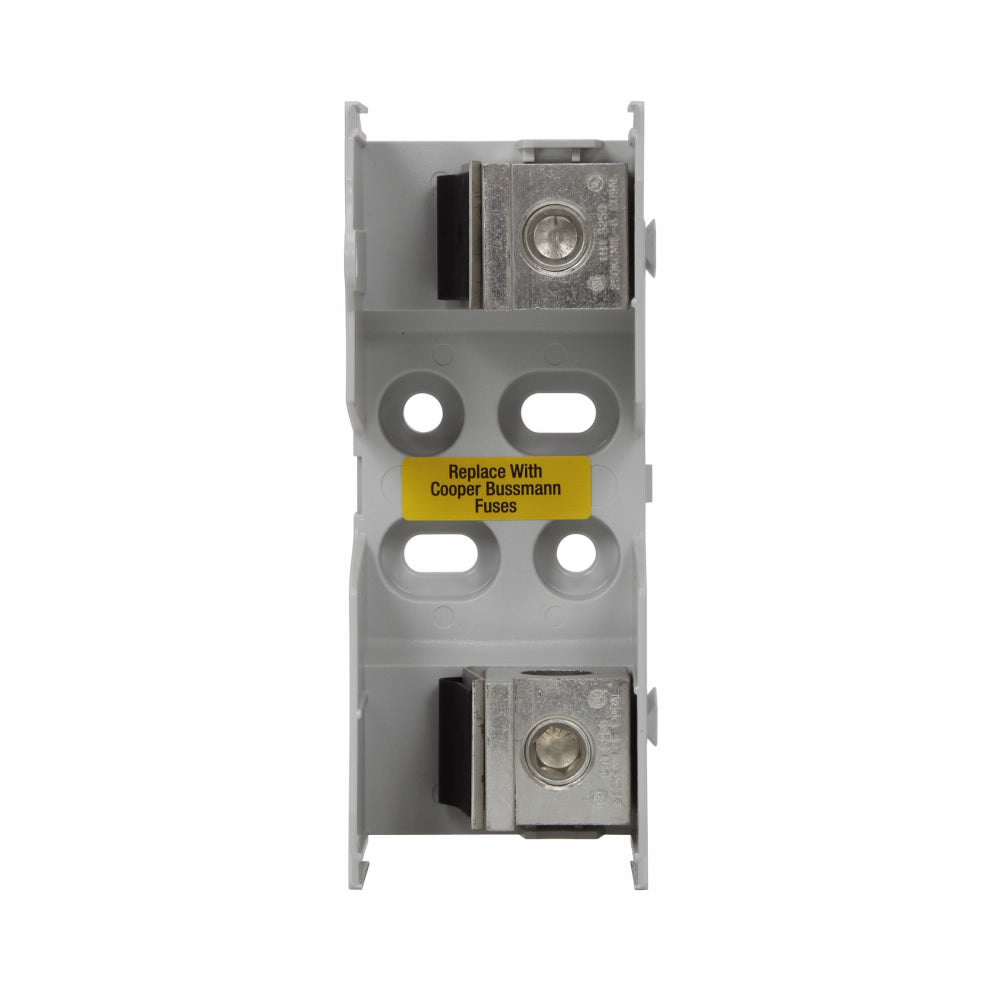

Eaton JM60200-1CR BUS 200A 600V 1-POLE CLASS J FUSEHOLDER

Product Description

The Eaton JM60200-1CR is a modular fuse block designed for use in power distribution systems. With a voltage rating of six hundred volts and an amperage range of one hundred ten to two hundred amps, it supports one pole operation. The design accommodates knife blade end connections and is suitable for various applications.

• Modular design for flexible assembly and installation
• Compatible with knife blade cartridge fuses
• Temperature range from minus forty to one hundred twenty degrees Celsius

Product Highlights

This fuseholder is intended for electrical assemblies and panels. It simplifies layout by reducing space needs. It features integral dovetails for multiple pole assembly, promoting easier installation in different configurations.

Product Information

Standard Information

• Manufacturer: Eaton
• UPC: 05171238739

Technical Specifications

• Voltage Rating: 600 V
• Amperage Rating: 110 to 200 A
• Class: J
• Connection Type: Knife Blade End
• Dimensions: 7.3 in L x 2.6 in W x 3.8 in H
• Material: Thermoplastic
• Mounting Type: Hole
• Number of Poles: 1
• Temperature Rating: -40 to 120 deg C
• Series: JM Series
• Standards/Approvals: CSA Certified, cULus File No.E14853, RoHS Compliant, UL 94-V-0 Flammability Rating
