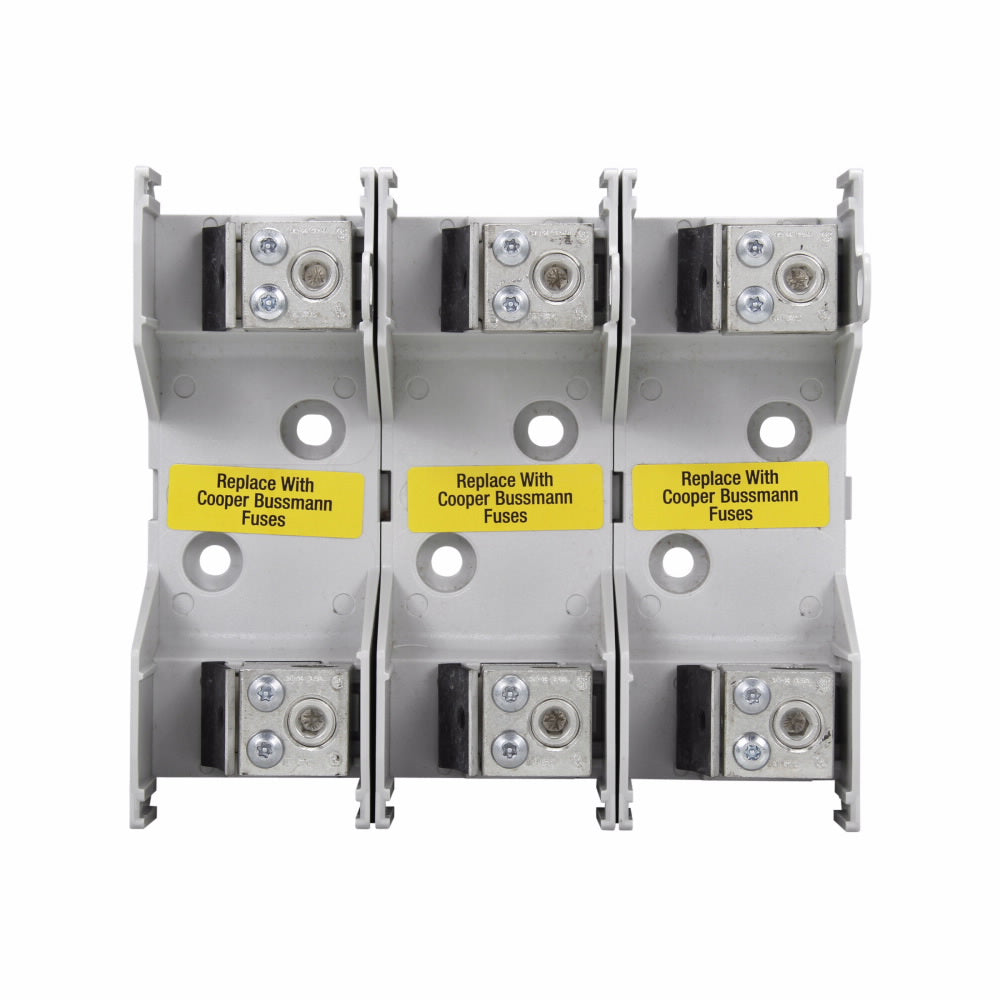

Eaton JM60100-3CR Fuse Block 600VAC 70-100A 3-Pole

Product Description

Explore the Eaton JM60100-3CR, a robust 3-pole fuse block that supports 70 to 100 amps with a voltage rating of 600 VAC. Ideal for use with knife blade cartridge fuses, this fuse block is designed to enforce safety and efficiency in electrical assemblies and power panels.

• Thermoplastic body with a dimension of 6 inches length by 6 inches width by 2.8 inches height.
• Equipped with integral dovetails for flexible pole assembly and mounting up to four holes per pole for multiple installation options.
• Complies with UL 508 and UL 845 for industrial power circuits, enhancing safety with standard phase barriers between poles.

Product Highlights

The Eaton JM60100-3CR fuse block supports wire sizes ranging from 1 to 3 AWG and up to 1/0 AWG, ensuring compatibility with various wire types. With its temperature tolerance from minus 40 to 120 degrees Celsius, it stands as a dependable choice for diverse operating environments.

Product Information

Standard Information

• Brand: Eaton
• MPN: JM60100-3CR

Technical Specifications

• Amperage: 70 to 100 A
• Voltage: 600 VAC
• Wire Size: 1 to 3 AWG, up to 1/0 AWG
• Number of Poles: 3
• Temperature Range: -40 to 120 degrees Celsius
• Material: Thermoplastic
• Standards: UL Listed, cULus, CSA Certified
• Application: Electrical Assemblies, Panels and EOEMs
