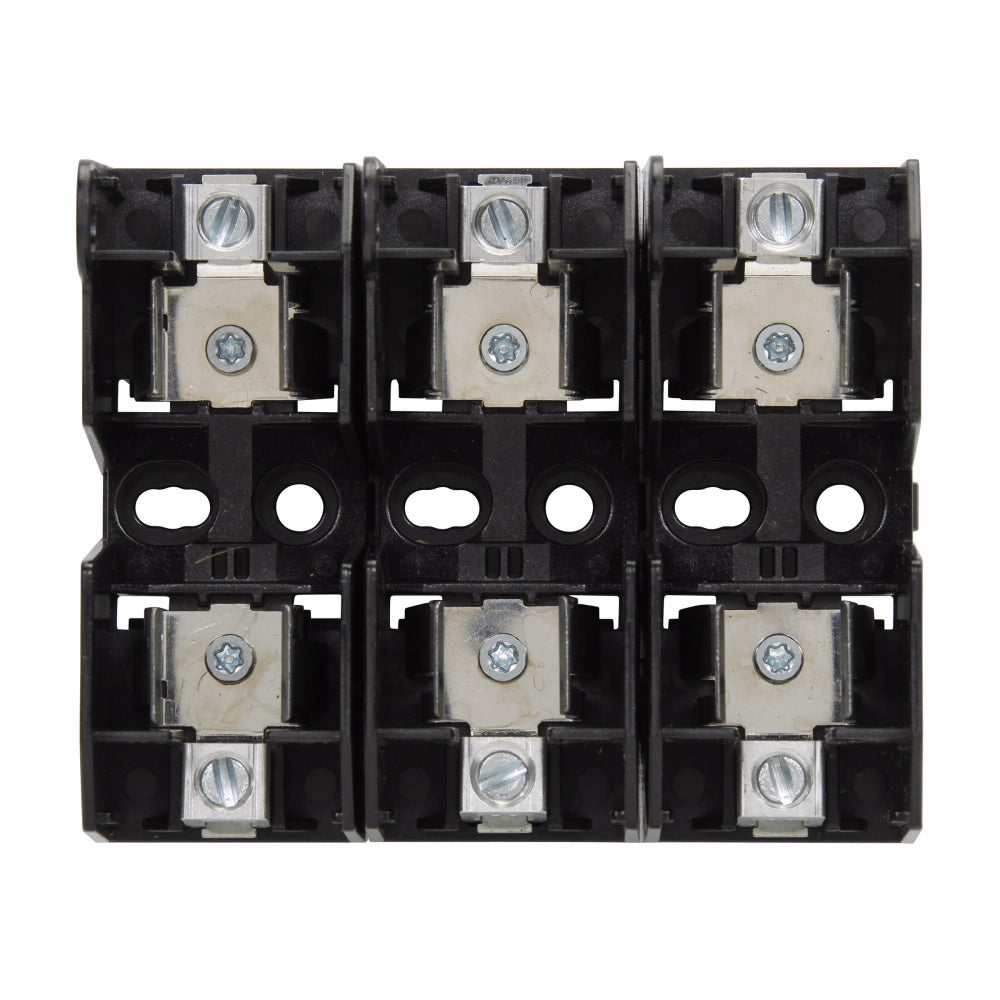

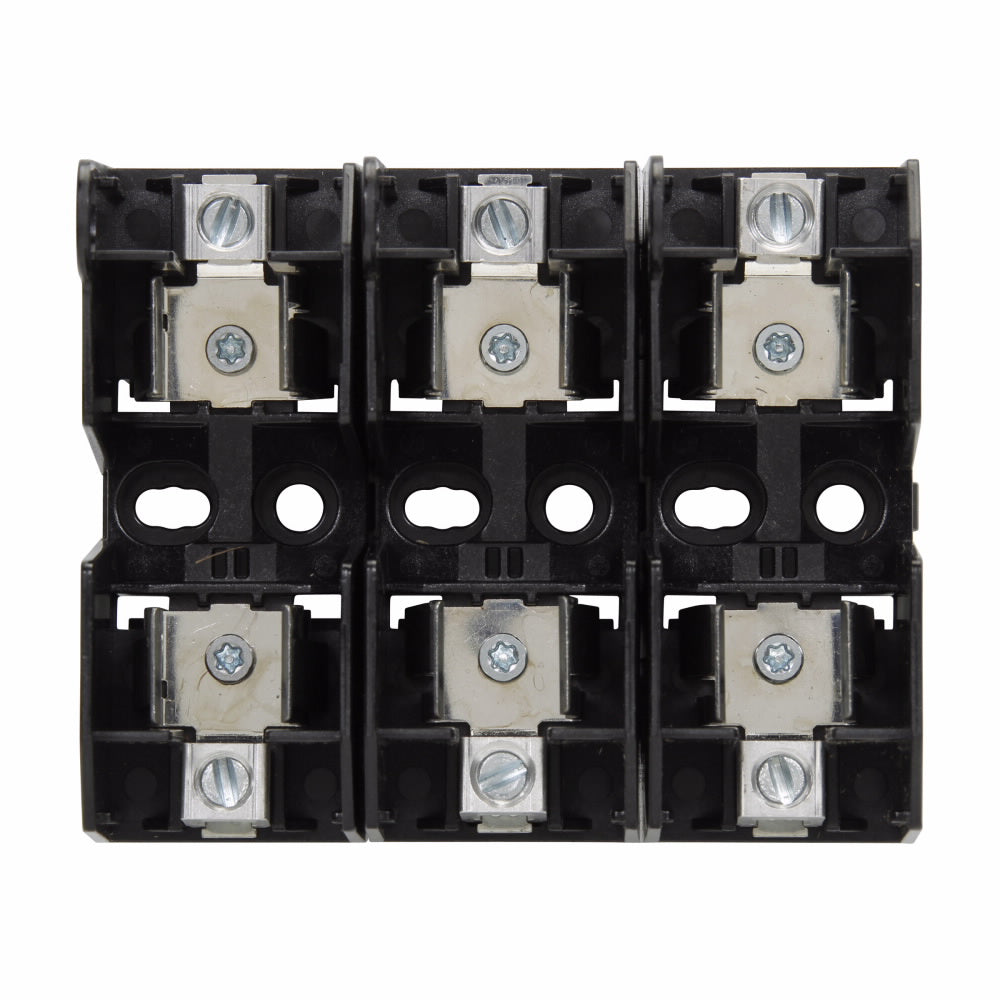

Eaton JM60060-3CR BUS CLASS J FUSE BLOCK 600V 60A - 3 POLE

Product Description

The Eaton JM60060-3CR is a modular fuse block designed for various electrical applications. This unit operates at six hundred volts and has an amperage range of thirty-five to sixty amps. As a class J fuse block, it is suitable for use with low-peak time delay and ferrule fuses. This product features three poles and can accommodate wire sizes from fourteen to two AWG for copper and eight to two AWG for aluminum.

• Modular design allows connections with toolless assembly.
• DIN rail and panel mount versatility.
• Compact size maximizes panel space efficiency.

Product Highlights

The modular feature simplifies installation and reduces labor costs, making this fuse block efficient for both assembly and maintenance.

Product Information

Standard Information

• Manufacturer: Eaton
• UPC: 05171251468

Technical Specifications

• Amperage Rating: 35 to 60 A
• Voltage Rating: 600 V
• Number of Poles: 3
• Temperature Rating: -40 to 120 deg C
• Fuse Diameter: 1.06 in
• Fuse Length: 2.38 in
• Dimensions: 4.7 in L x 4.5 in W x 2.6 in H
• Material: Thermoplastic
• Mounting Type: DIN Rail/Panel
• Class: J
• Connection Type: Box Lug/Slot Screw
• Suitable For Use With: Low-Peak LPJ Series, Limitron JKS, DFJ Series Ferrule Fuse
• Standards/Approvals: CE Certified, CSA File No.47235 Guide IZLT, RoHS Compliant, UL File No.E14853
